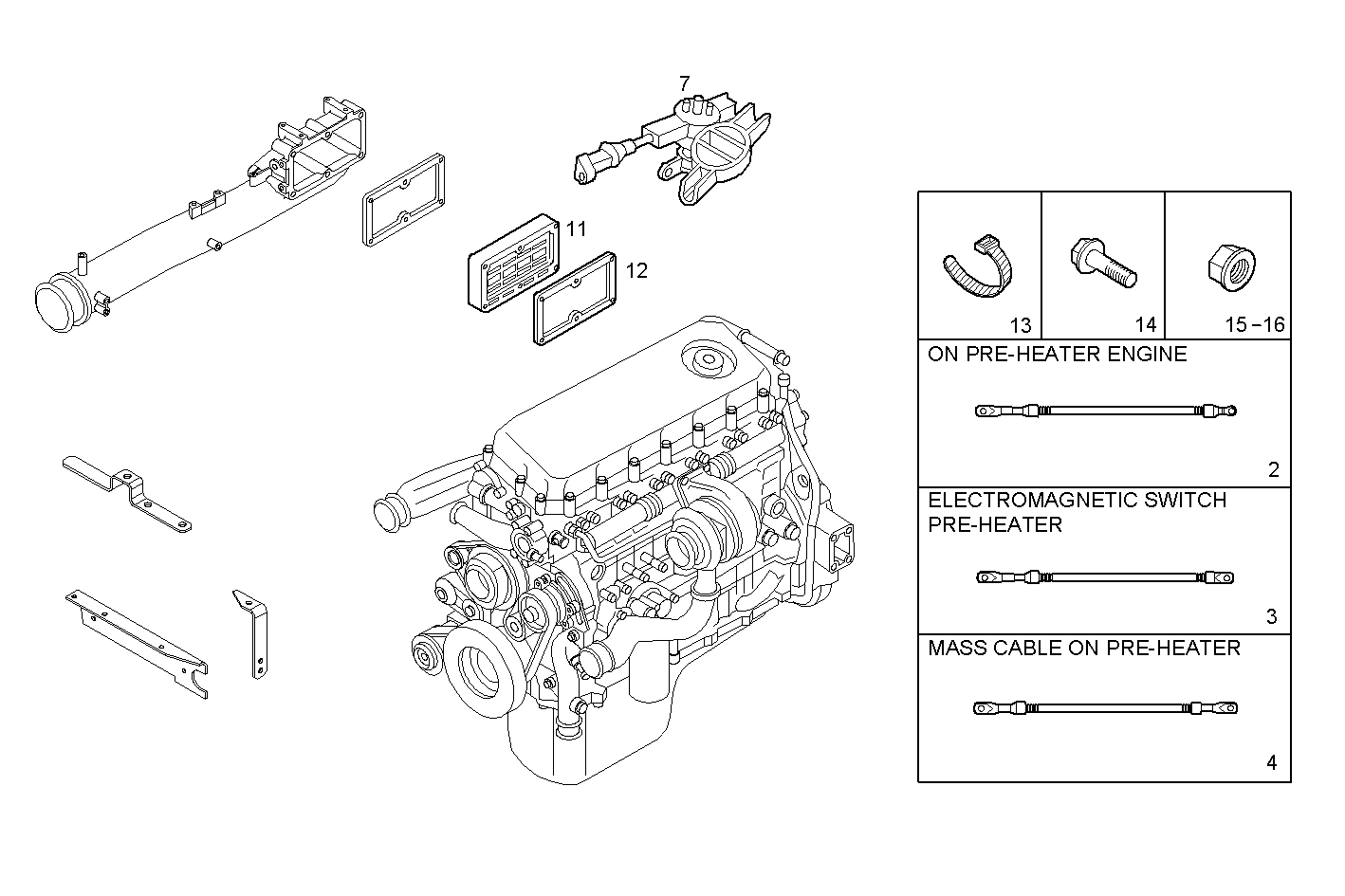

THERMO-STARTER
F2BE0681A*BC13 — CURSOR 8 - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 2 | 41207261 | WIRE/CABLE WIRE/CABLE | 1 | |
| 3 | 41200489 | WIRE/CABLE WIRE/CABLE | 1 | |
| 4 | 41207269 | WIRE/CABLE WIRE/CABLE | 1 | |
| 7 | 99449300 | RELAY RELAY | 1 | |
| 11 | 99437042 | RESISTOR RESISTOR | 1 | |
| 12 | 504026624 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 13 | 99455033 | CLIP CLIP | 2 | |
| 14 | 16585625 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 15 | 16750225 | HEXAGON NUT HEXAGON NUT | 1 | |
| 16 | 17044625 | HEXAGON NUT HEXAGON NUT | 2 |
