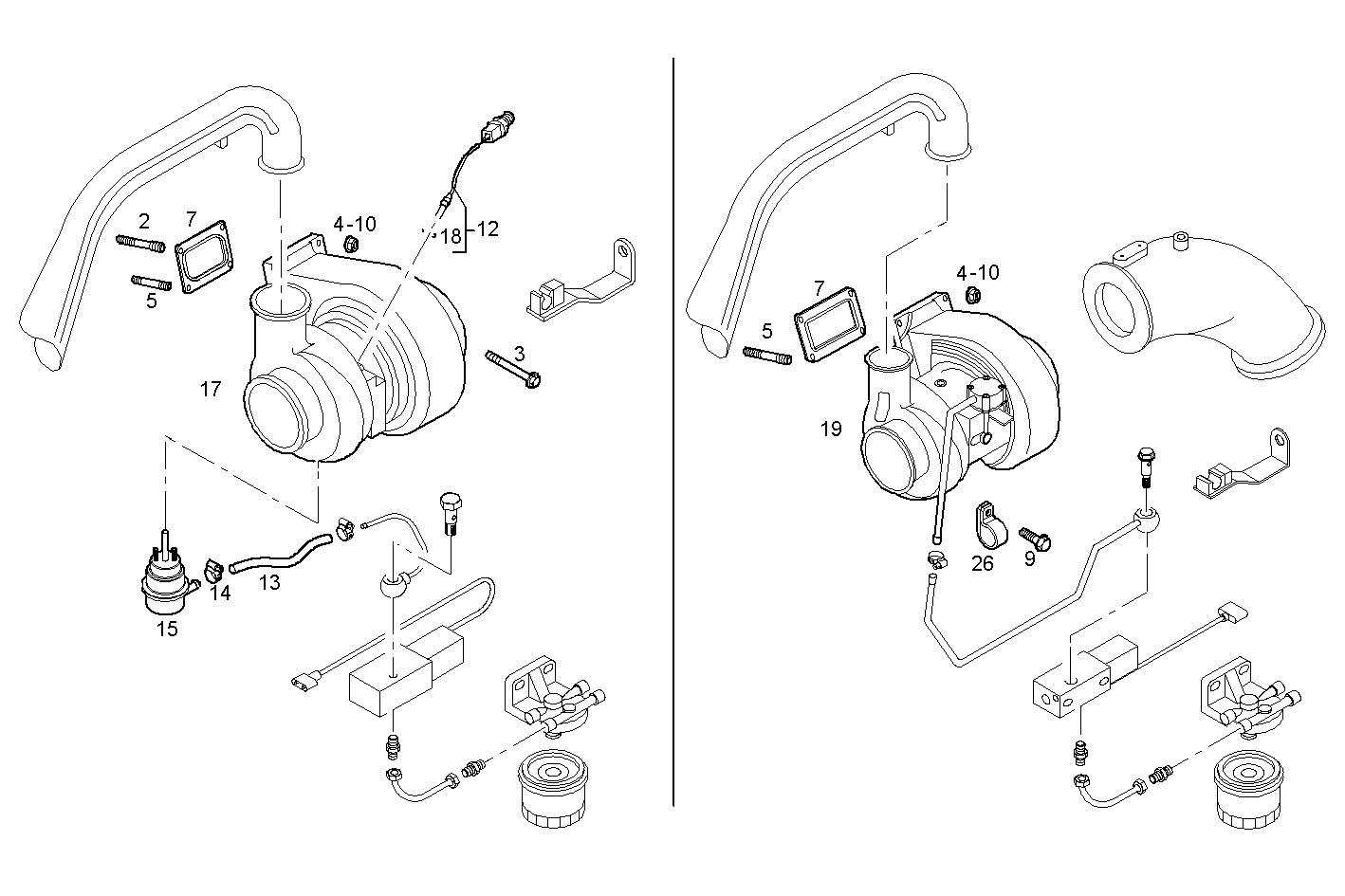

TURBOCHARGER
F2BE0681A*BC13 — CURSOR 8 - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 2 | 500346862 | STUD STUD | 1 | |
| 3 | 16591925 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 4 | 17044625 | HEXAGON NUT HEXAGON NUT | 1 | |
| 5 | 16731370 | STUD STUD | 2 | |
| 7 | 98451118 | GASKET GASKET | 1 | |
| 9 | 16597925 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 500300795 | HEXAGON NUT HEXAGON NUT | 4 | |
| 12 | 500332298 | SENSOR SENSOR | 1 | |
| 13 | 500332300 | HOSE HOSE | 1 | |
| 14 | 500332605 | CLIP CLIP | 1 | |
| 15 | 500361013 | VALVE VALVE | 1 | |
| 17 | 500355858 | VARIAB.GEOM.TURBINE VARIAB.GEOM.TURBINE | 1 | |
| 18 | 42536617 | O-SEAL O-SEAL | 1 | |
| 19 | 504017225 | VARIAB.GEOM.TURBINE VARIAB.GEOM.TURBINE | 1 | |
| 26 | 10450090 | PIPE CLIP PIPE CLIP | 1 |
