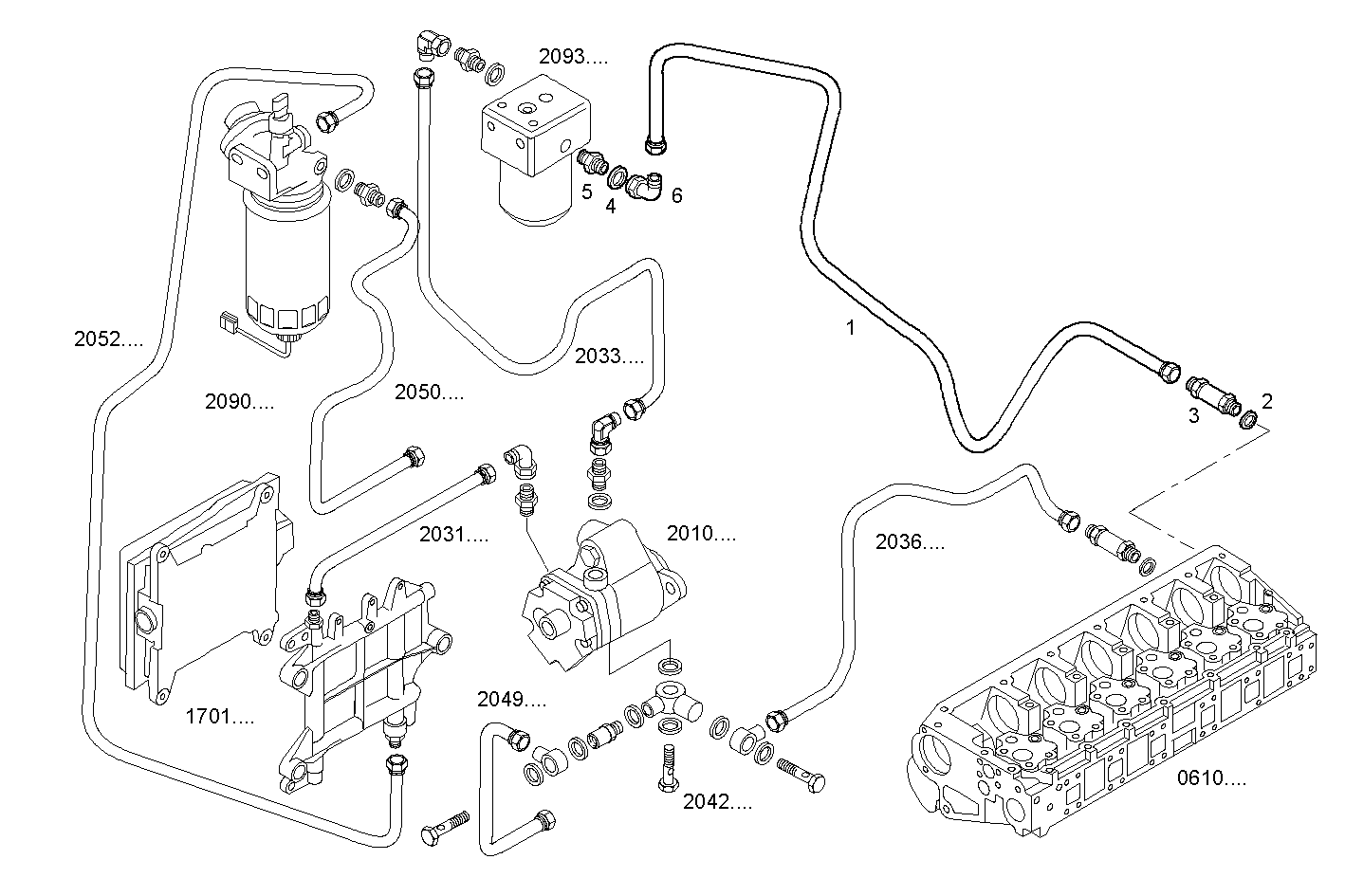

FUEL LINES - FILTER TO CYLINDER HEAD
F2BE0682F*B403 — CURSOR 8 - EURO 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500363366 | FUEL LINE FUEL LINE | 1 | |
| 2 | 99489019 | WASHER WASHER | 1 | |
| 3 | 99455350 | CONNECTION PIPE CONNECTION PIPE | 1 | |
| 4 | 99489018 | SEAL GASKET SEAL GASKET | 1 | |
| 5 | 1245715 | THREADED UNION THREADED UNION | 1 | |
| 6 | 16504114 | ELBOW COUPLING ELBOW COUPLING | 1 |
