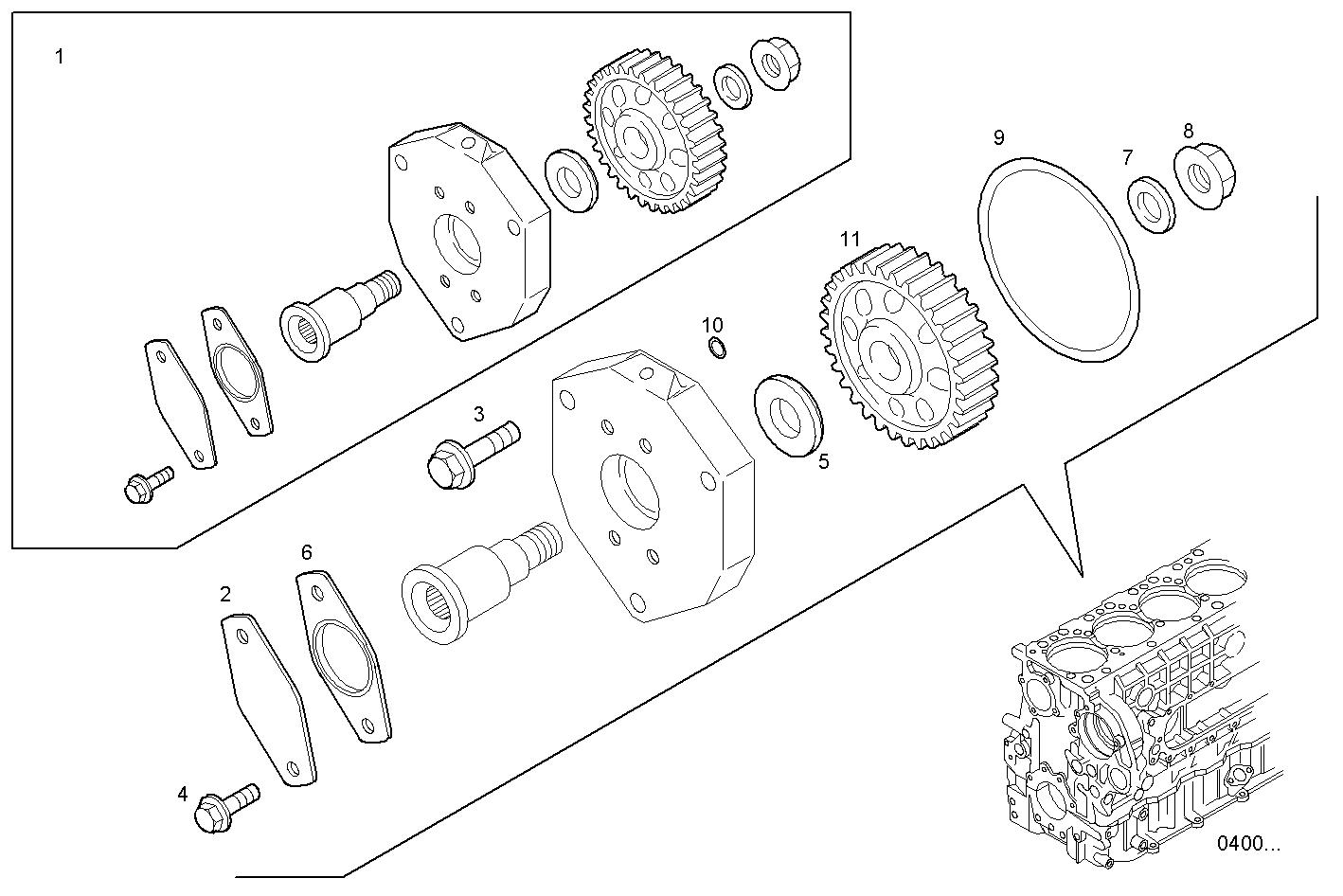

ARRANGED FOR HYDRAULIC PUMP
C78ENTD20.00 — CURSOR 8 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8041573 | POWER TAKE OFF POWER TAKE OFF | 1 | |
| 2 | 504049033 | COVER COVER | 1 | |
| 3 | 16690424 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 3 | |
| 4 | 16677735 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 500351319 | WASHER WASHER | 1 | |
| 6 | 4896897 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 7 | 500382574 | WASHER WASHER | 1 | |
| 8 | 17046231 | NUT NUT | 1 | |
| 9 | 17292281 | O-RING O-RING | 1 | |
| 10 | 17281381 | O-RING O-RING | 1 | |
| 11 | 500351009 | GEAR GEAR | 1 |
