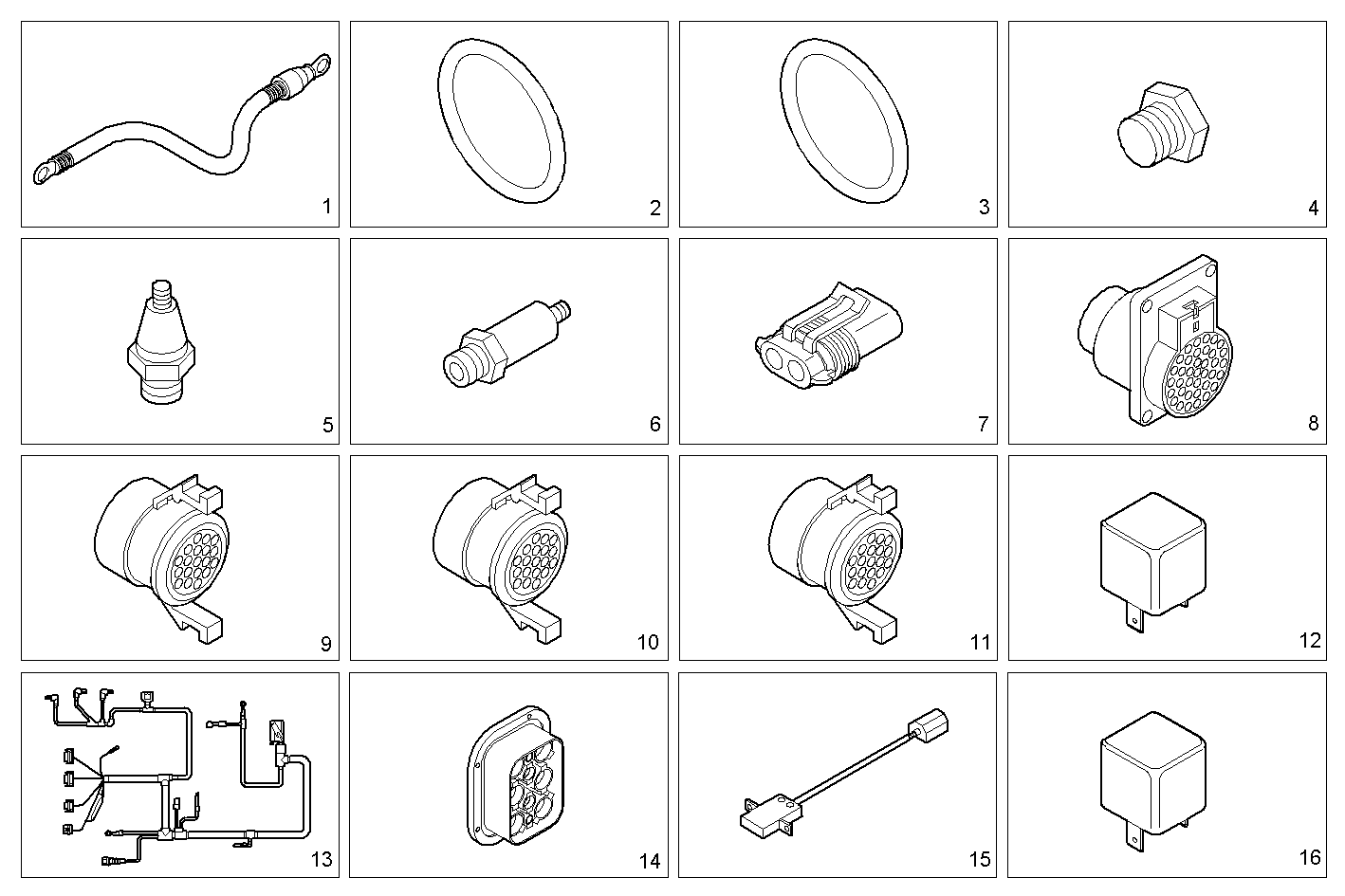

ACCESSORIES
C78ENTE20.00A001 — CURSOR 8 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 41207263 | WIRE/CABLE WIRE/CABLE | 1 | |
| 2 | 17278181 | O-RING O-RING | 1 | |
| 3 | 500337199 | O-RING O-RING | 1 | |
| 4 | 500337200 | THREADED PLUG THREADED PLUG | 1 | |
| 5 | 504084761 | TRANSMITTER TRANSMITTER | 1 | |
| 6 | 98442879 | PRESSURE SWITCH PRESSURE SWITCH | 1 | |
| 7 | 8030574 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 8 | 8031432 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 9 | 8032279 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 10 | 8032280 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 11 | 8032282 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 12 | 41040442 | RELAY RELAY | 1 | |
| 13 | 41209003 | WIRE/CABLE WIRE/CABLE | 1 | |
| 14 | 98403038 | SUPPORT SUPPORT | 1 | |
| 15 | 99464594 | SWITCH SWITCH | 1 | |
| 16 | 500334927 | DIODE PLATE DIODE PLATE | 1 |
