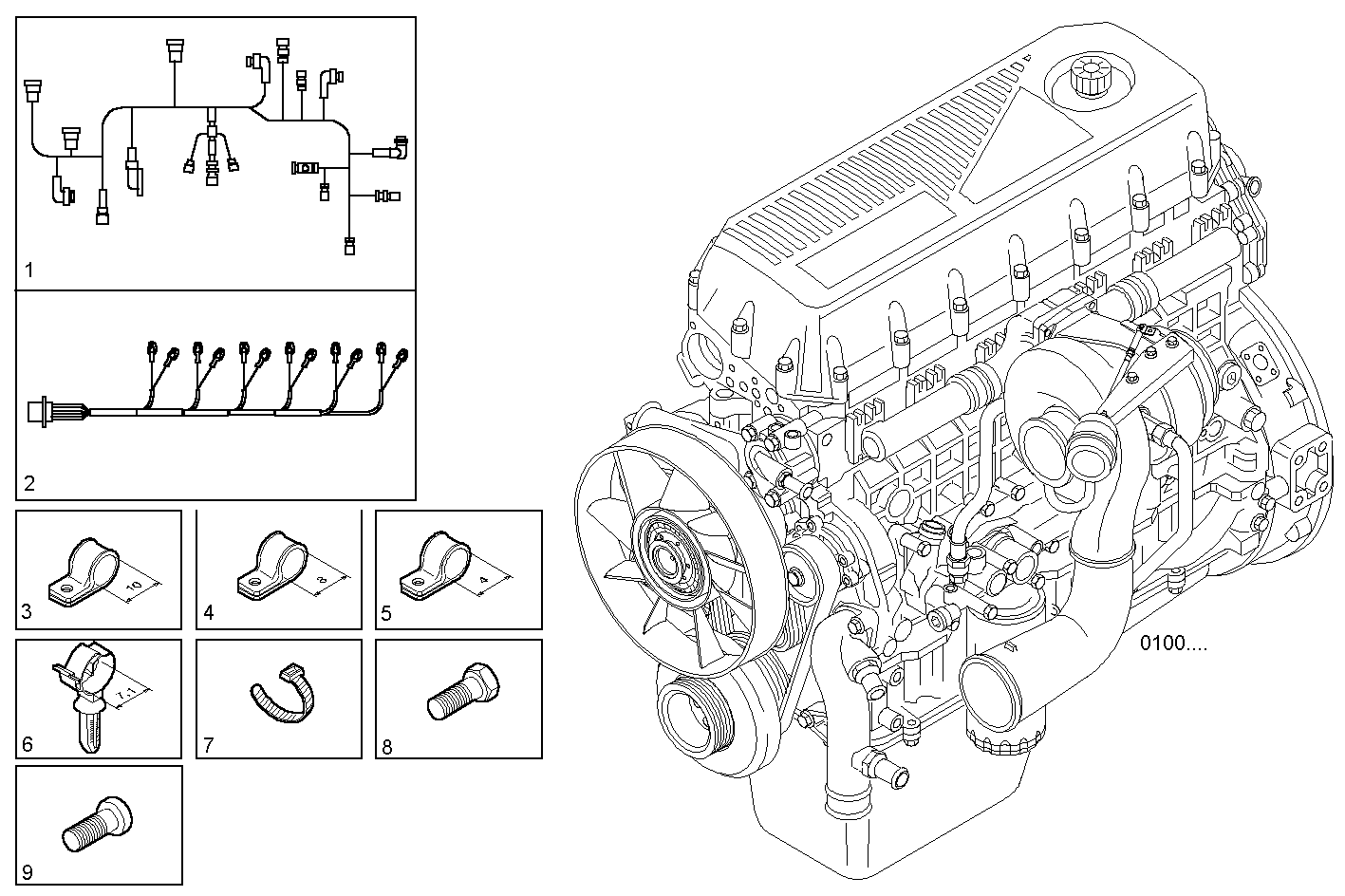

ELECTRIC WIRING
F2BE0684B*B131 — CURSOR 8 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504055238 | WIRE/CABLE WIRE/CABLE | 1 | |
| 2 | 500336911 | WIRE/CABLE WIRE/CABLE | 1 | |
| 3 | 17310501 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 4 | 17310401 | FASTENING BRACKET FASTENING BRACKET | 3 | |
| 5 | 17310001 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 6 | 504000058 | CLIP CLIP | 4 | |
| 7 | 42099097 | CABLE STRAP CABLE STRAP | 2 | |
| 8 | 11612224 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 9 | 16689424 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 4 |
