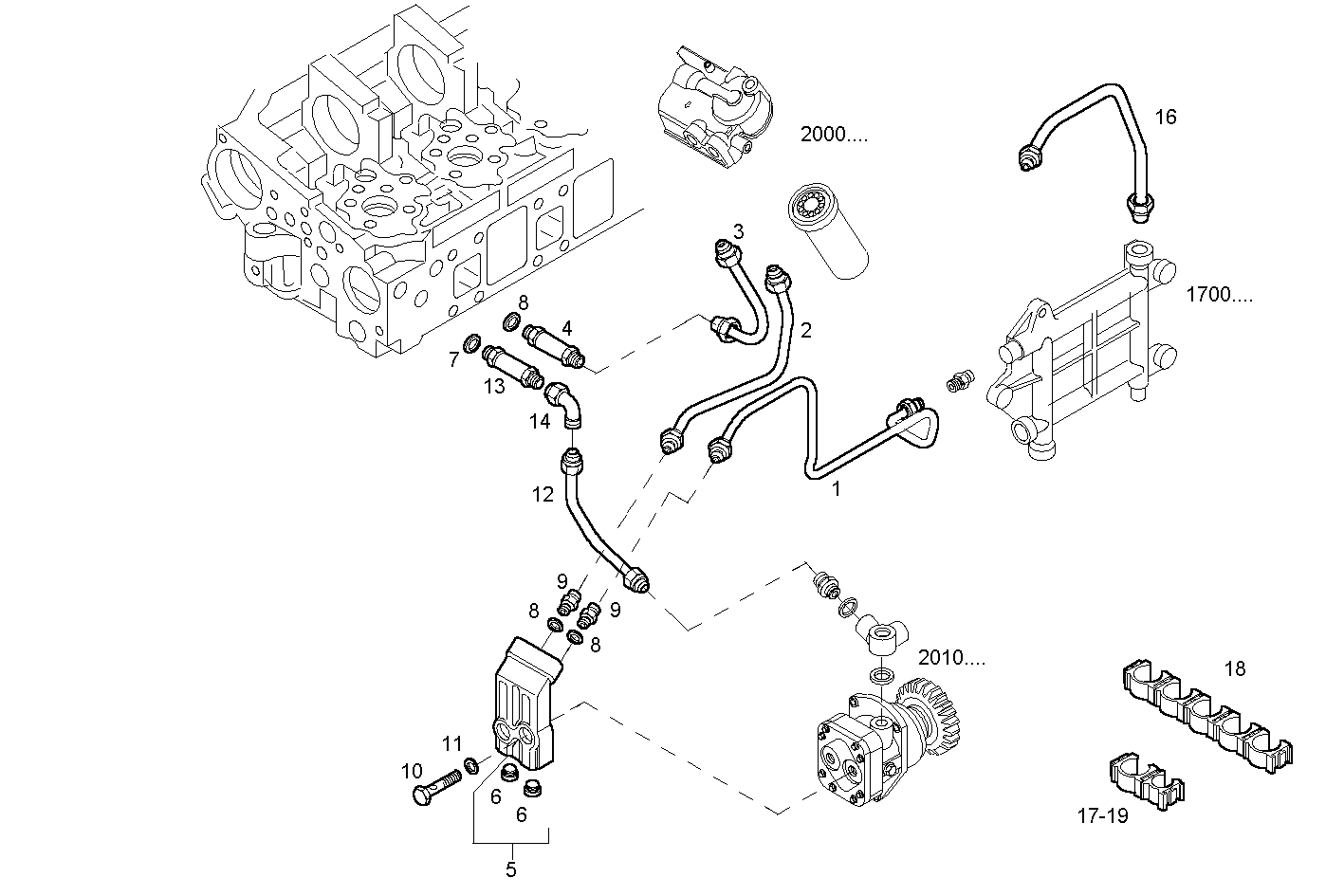

FUEL LINES
F2BE0684B*B131 — CURSOR 8 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504003792 | FUEL LINE FUEL LINE | 1 | |
| 2 | 504003798 | FUEL LINE FUEL LINE | 1 | |
| 3 | 99473921 | FUEL LINE FUEL LINE | 1 | |
| 4 | 500310076 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 500314313 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 504051237 | THREADED PLUG THREADED PLUG | 2 | |
| 7 | 99489018 | SEAL GASKET SEAL GASKET | 1 | |
| 8 | 99489019 | WASHER WASHER | 3 | |
| 9 | 41031569 | THREADED UNION THREADED UNION | 2 | |
| 10 | 4864084 | BANJO BOLT BANJO BOLT | 2 | |
| 11 | 98474309 | WASHER WASHER | 4 | |
| 12 | 500343663 | FUEL LINE FUEL LINE | 1 | |
| 13 | 99455351 | CONNECTION PIPE CONNECTION PIPE | 1 | |
| 14 | 16504114 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 16 | 500342252 | FUEL LINE FUEL LINE | 1 | |
| 17 | 500373006 | SPRING CLAMP SPRING CLAMP | 1 | |
| 18 | 500306941 | SPRING CLAMP SPRING CLAMP | 1 | |
| 19 | 500319864 | SPRING CLAMP SPRING CLAMP | 1 |
