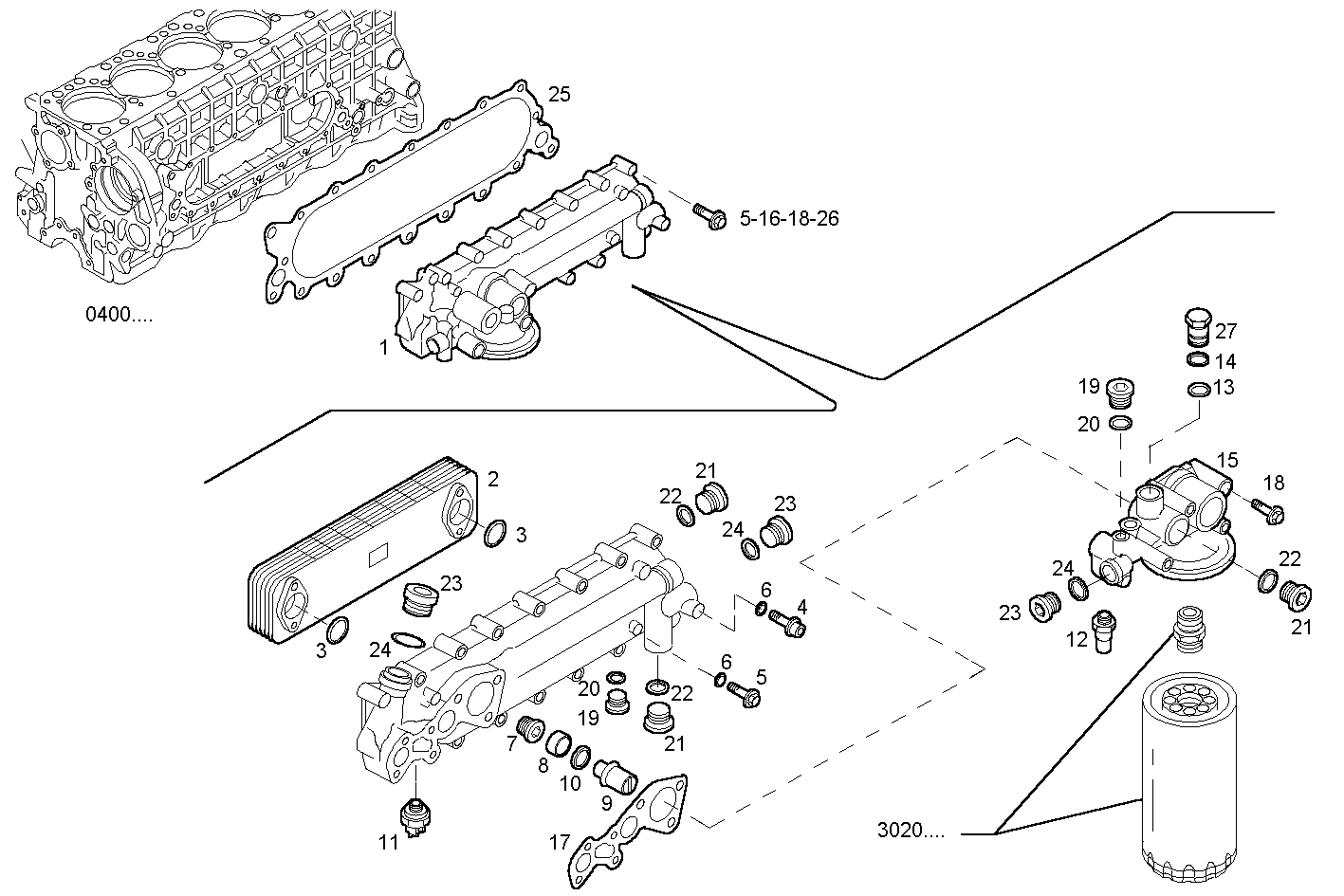

OIL - WATER HEAT EXCHANGER
F2BE0684B*B131 — CURSOR 8 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504013550 | HEAT EXCHANGER HEAT EXCHANGER | 1 | |
| 2 | 500301692 | OIL COOLER OIL COOLER | 1 | |
| 3 | 17283581 | O-RING O-RING | 2 | |
| 4 | 16673934 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 5 | 16586924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 99489014 | SEAL GASKET SEAL GASKET | 4 | |
| 7 | 99433799 | THREADED PLUG THREADED PLUG | 1 | |
| 8 | 99433798 | SPACING BAR SPACING BAR | 1 | |
| 9 | 98498322 | VALVE VALVE | 1 | |
| 10 | 98494952 | GASKET GASKET | 1 | |
| 11 | 99469897 | TRANSMITTER TRANSMITTER | 1 | |
| 12 | 98445111 | PRESSURE SWITCH PRESSURE SWITCH | 1 | |
| 13 | 17278181 | O-RING O-RING | 1 | |
| 14 | 500337199 | O-RING O-RING | 1 | |
| 15 | 504013552 | OIL FILTER SUPPORT OIL FILTER SUPPORT | 1 | |
| 16 | 16598624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 504013562 | GASKET GASKET | 1 | |
| 18 | 16598224 | HEXAGON BOLT HEXAGON BOLT | 7 | |
| 19 | 16992411 | THREADED PLUG THREADED PLUG | 2 | |
| 20 | 99489019 | WASHER WASHER | 2 | |
| 21 | 16993711 | THREADED PLUG THREADED PLUG | 3 | |
| 22 | 99469380 | SEAL GASKET SEAL GASKET | 3 | |
| 23 | 16993511 | LOCK PLUG LOCK PLUG | 3 | |
| 24 | 99432291 | SEAL GASKET SEAL GASKET | 3 | |
| 25 | 98497873 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 26 | 16674034 | HEXAGON BOLT HEXAGON BOLT | 14 | |
| 27 | 500337200 | THREADED PLUG THREADED PLUG | 1 |
