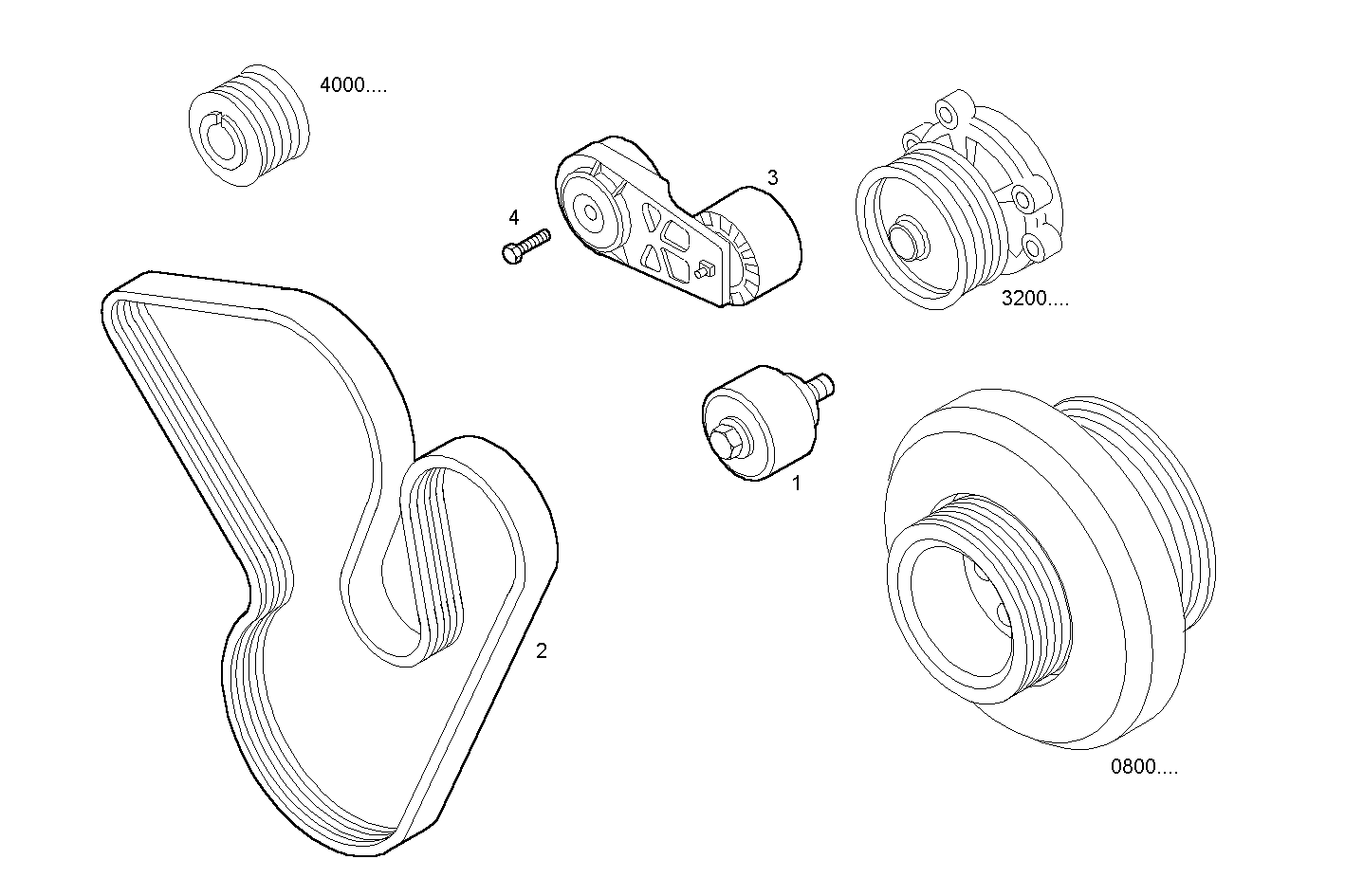

PULLEYS AND BELTS
F2BE0684B*B131 — CURSOR 8 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504006261 | BELT TENSIONER BELT TENSIONER | 1 | |
| 2 | 500328020 | V-BELT V-BELT | 1 | |
| 3 | 504046191 | BELT TENSIONER BELT TENSIONER | 1 | |
| 4 | 16676834 | HEXAGON BOLT HEXAGON BOLT | 1 |
