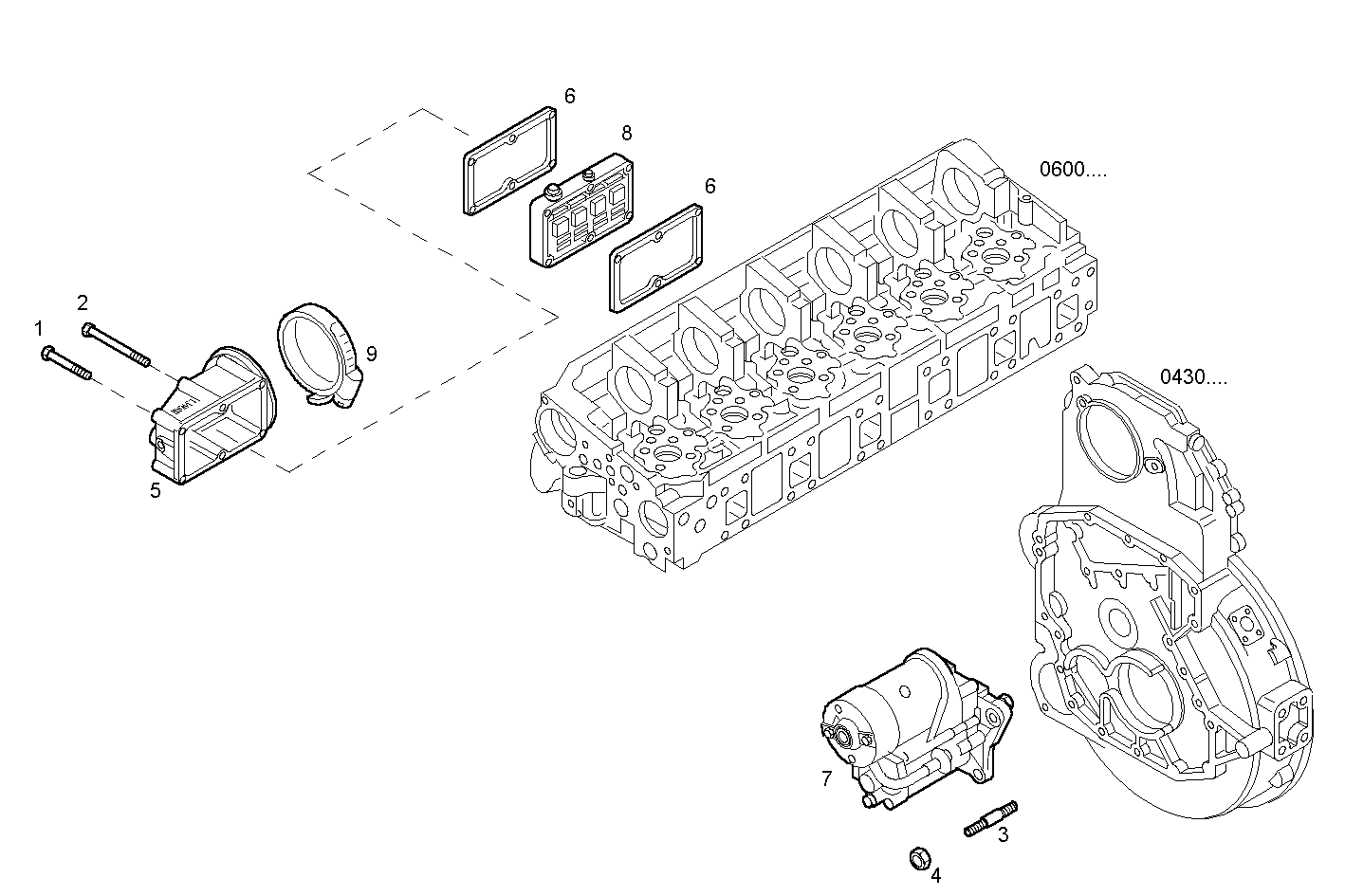

STARTER MOTOR
F2BE0684B*B131 — CURSOR 8 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16593124 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 2 | 16599224 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 3 | 16748624 | STUD STUD | 3 | |
| 4 | 17044821 | NUT NUT | 3 | |
| 5 | 500365237 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 6 | 504026624 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 7 | 99432760 | STARTER MOTOR STARTER MOTOR | 1 | |
| 8 | 99437042 | RESISTOR RESISTOR | 1 | |
| 9 | 99435103 | CLIP CLIP | 1 |
