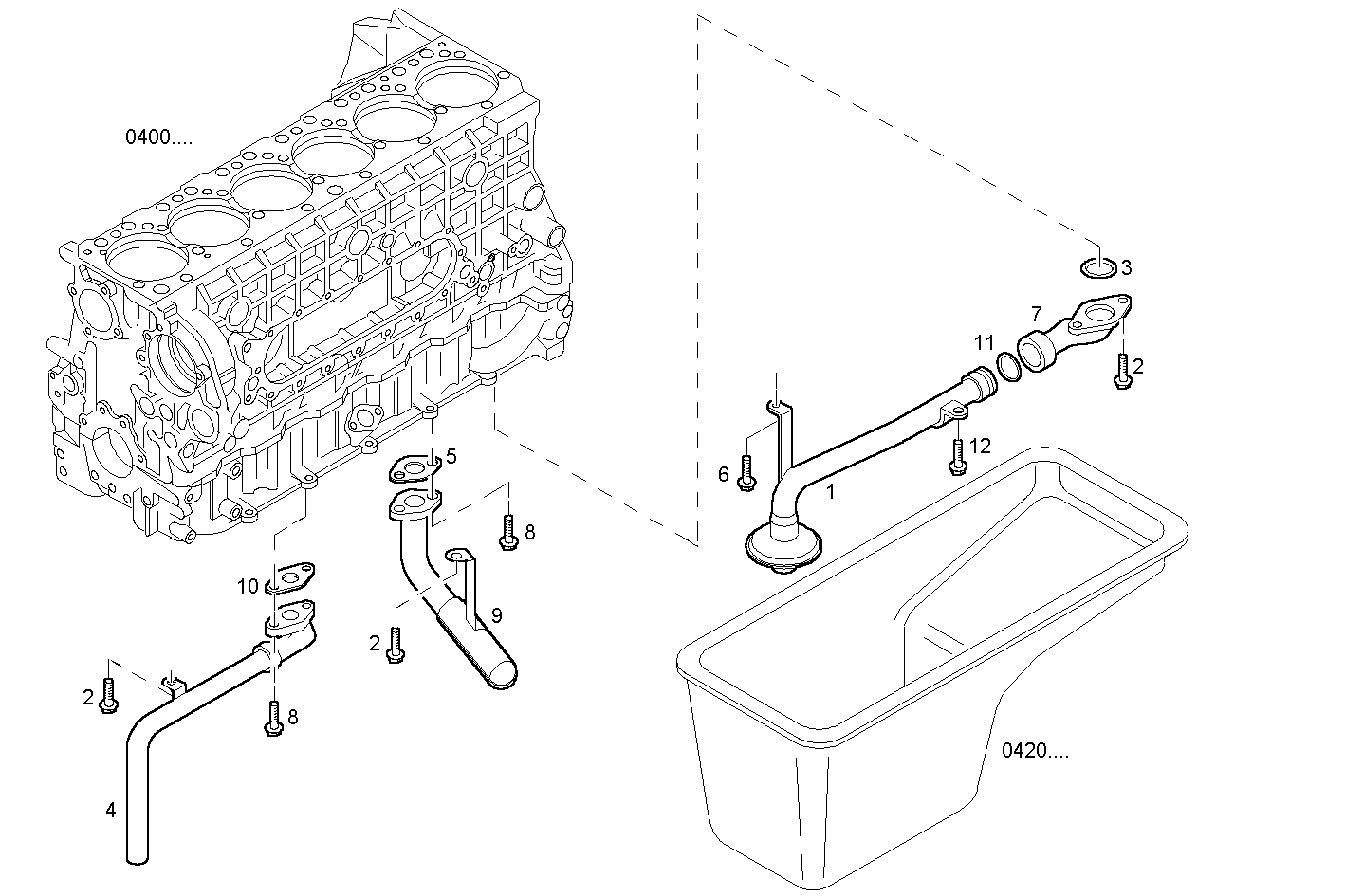

SUCTION STRAINER
F2BE0684B*B131 — CURSOR 8 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500364110 | SUCTION STRAINER SUCTION STRAINER | 1 | |
| 2 | 18138324 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 4 | |
| 3 | 17282981 | O-RING O-RING | 1 | |
| 4 | 500364644 | CONNECTION PIPE CONNECTION PIPE | 1 | |
| 5 | 500364380 | GASKET GASKET | 1 | |
| 6 | 16592224 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 98474898 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 8 | 16673734 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 9 | 500364359 | SUCTION STRAINER SUCTION STRAINER | 1 | |
| 10 | 500364892 | GASKET GASKET | 1 | |
| 11 | 99477046 | O-RING O-RING | 1 | |
| 12 | 16674034 | HEXAGON BOLT HEXAGON BOLT | 1 |
