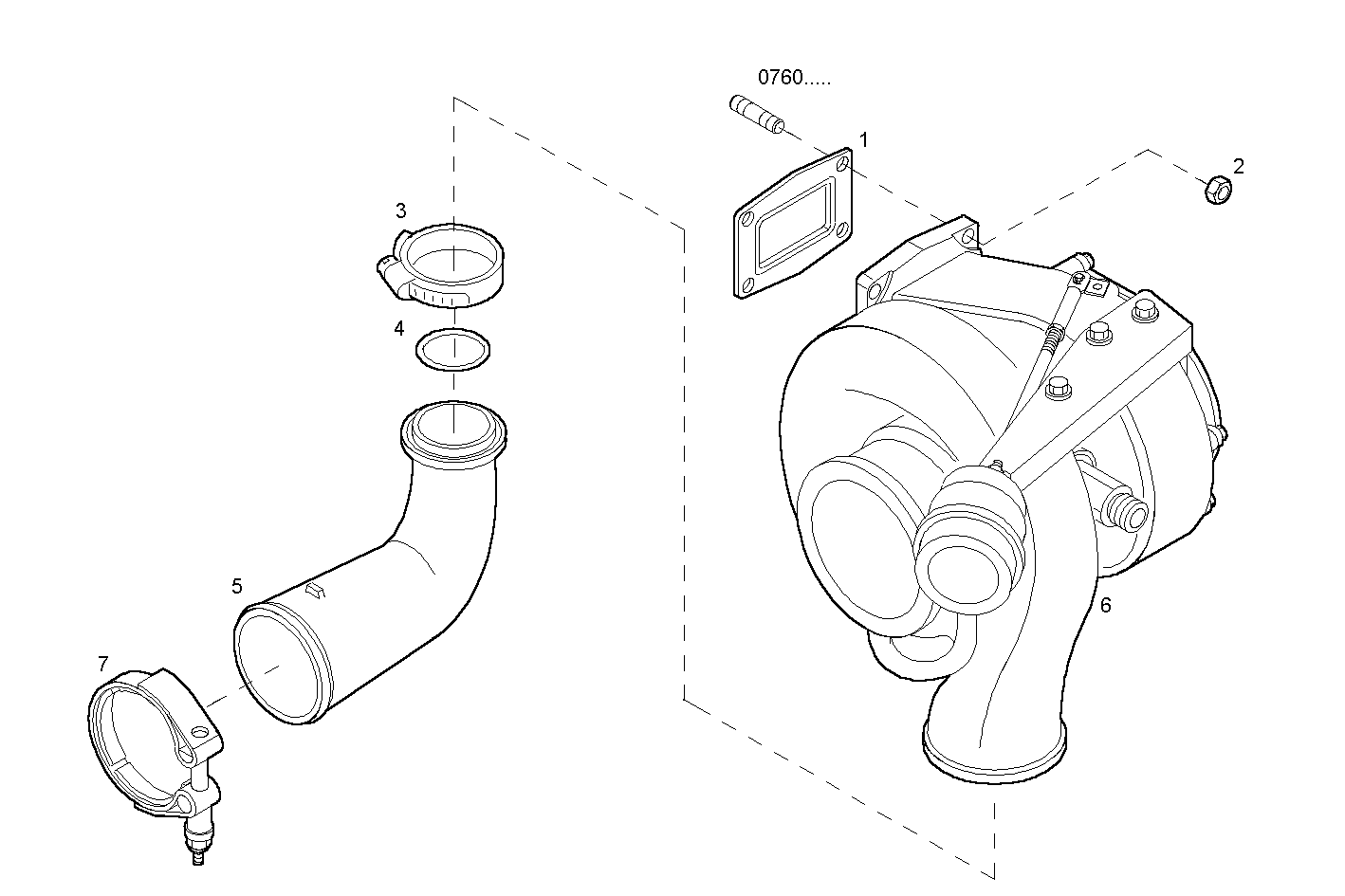

TURBOCHARGER
F2BE0684B*B131 — CURSOR 8 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98451118 | GASKET GASKET | 1 | |
| 2 | 500300795 | HEXAGON NUT HEXAGON NUT | 4 | |
| 3 | 4800661 | CLIP CLIP | 1 | |
| 4 | 17284681 | O-RING O-RING | 1 | |
| 5 | 61318365 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 6 | 504064530 | TURBOCHARGER TURBOCHARGER | 1 | |
| 7 | 500390639 | CLIP CLIP | 1 |
