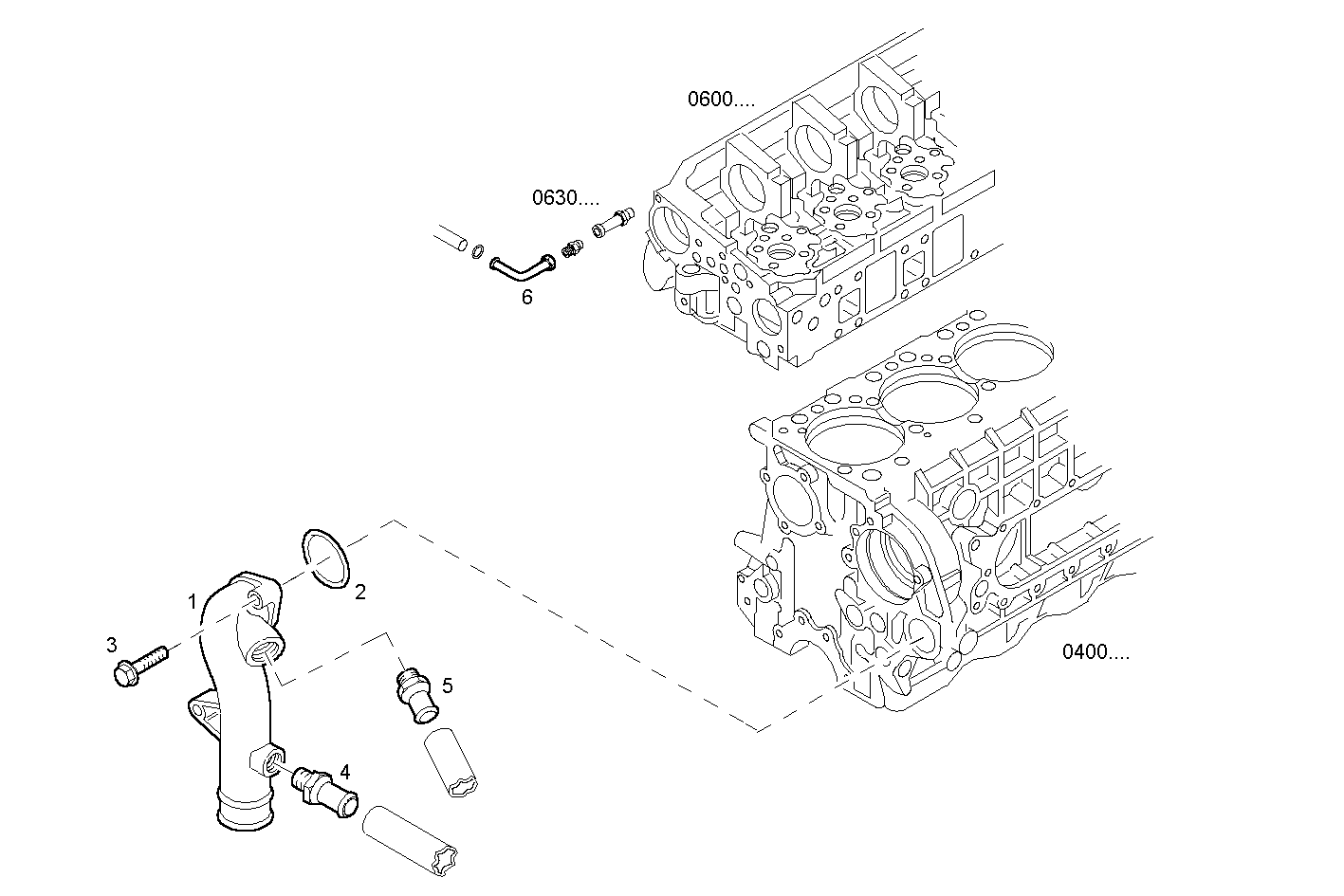

WATER LINES
F2BE0684B*B131 — CURSOR 8 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99469567 | WATER PIPE WATER PIPE | 1 | |
| 2 | 17290081 | O-RING O-RING | 1 | |
| 3 | 16586924 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 4 | 98475758 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 99464284 | PIPE SOCKET PIPE SOCKET | 1 |
