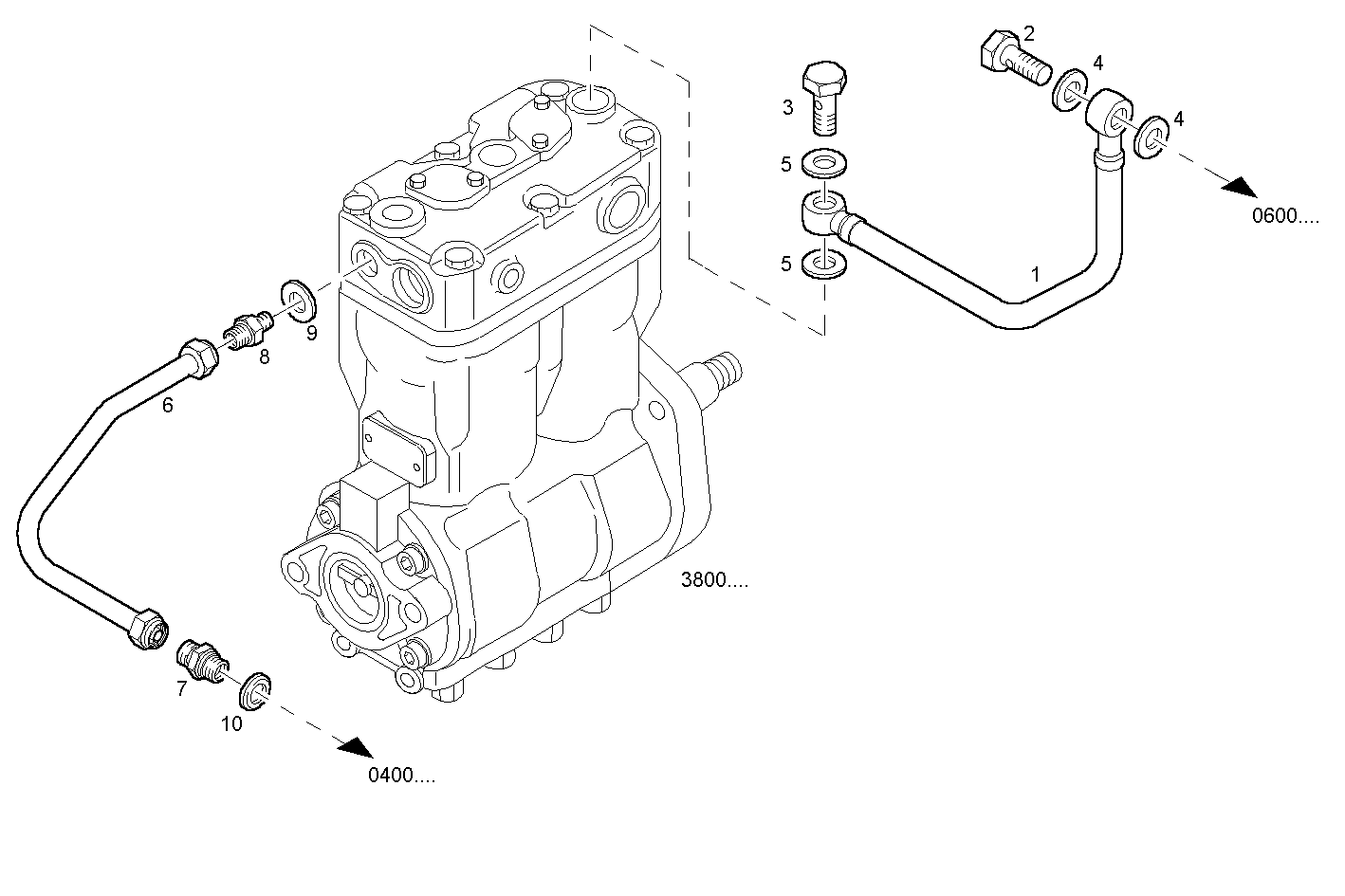

WATER LINES
F2BE0684B*B131 — CURSOR 8 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500313369 | WATER PIPE WATER PIPE | 1 | |
| 2 | 4864084 | BANJO BOLT BANJO BOLT | 1 | |
| 3 | 16511511 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 4 | 98474309 | WASHER WASHER | 2 | |
| 5 | 98474311 | SEAL GASKET SEAL GASKET | 2 | |
| 6 | 99473920 | WATER PIPE WATER PIPE | 1 | |
| 7 | 41031569 | THREADED UNION THREADED UNION | 1 | |
| 8 | 4741574 | THREADED UNION THREADED UNION | 1 | |
| 9 | 99489020 | SEAL GASKET SEAL GASKET | 1 | |
| 10 | 99489019 | WASHER WASHER | 1 |
