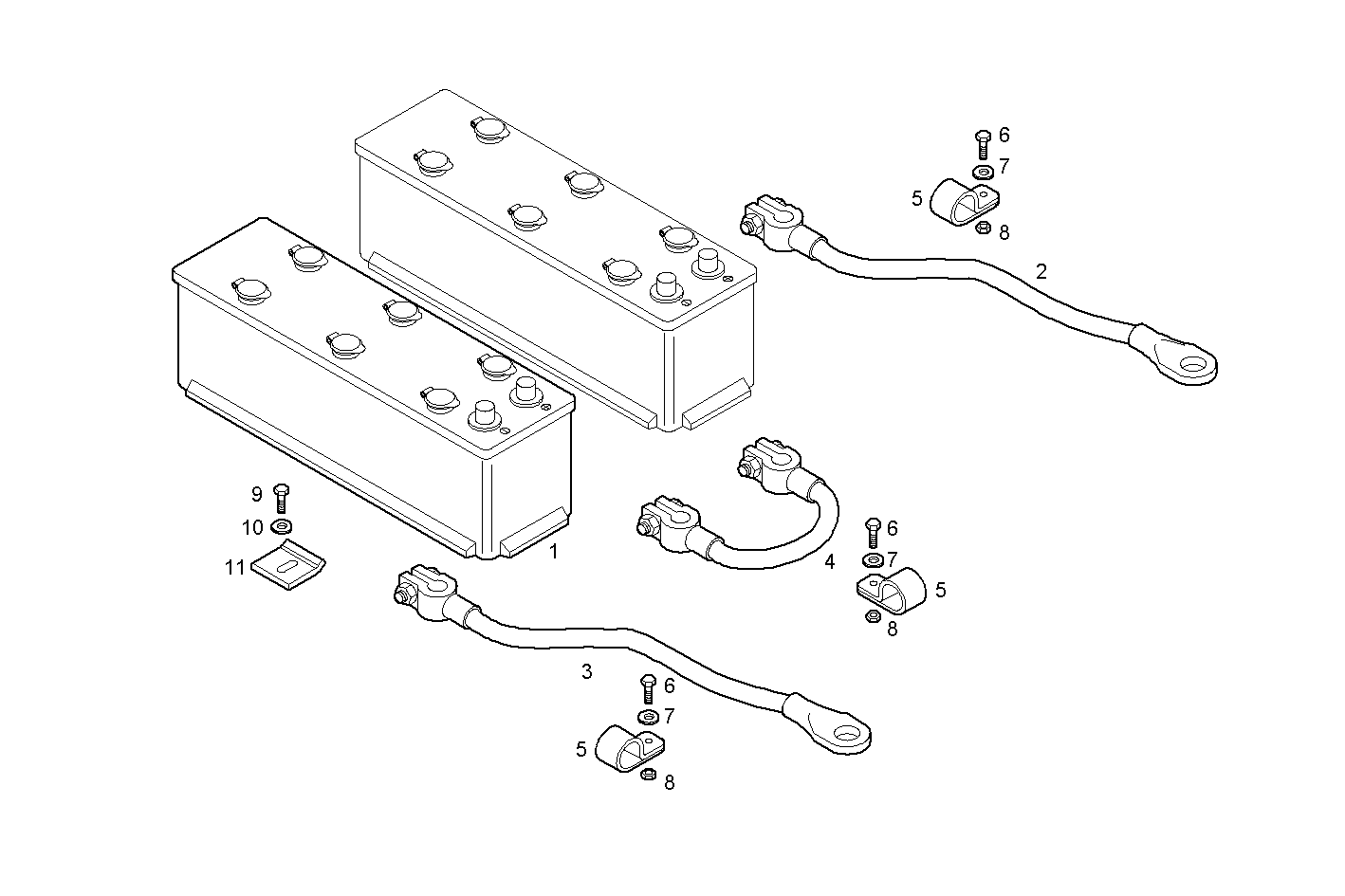

STARTER BATTERY
PUC78ENTD20.00A100 — CURSOR 8 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8022950 | BATTERY BATTERY | 1 | |
| 2 | 8020003 | WIRE/CABLE WIRE/CABLE | 1 | |
| 3 | 503112343 | WIRE/CABLE WIRE/CABLE | 1 | |
| 4 | 503112342 | WIRE/CABLE WIRE/CABLE | 1 | |
| 5 | 17315290 | LOCK/YOKE LOCK/YOKE | 3 | |
| 6 | 16603734 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 7 | 17088974 | SPRING WASHER SPRING WASHER | 3 | |
| 8 | 17037821 | HEXAGON NUT HEXAGON NUT | 3 | |
| 9 | 16607434 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 11 | 8024305 | RETAINER RETAINER | 2 |
