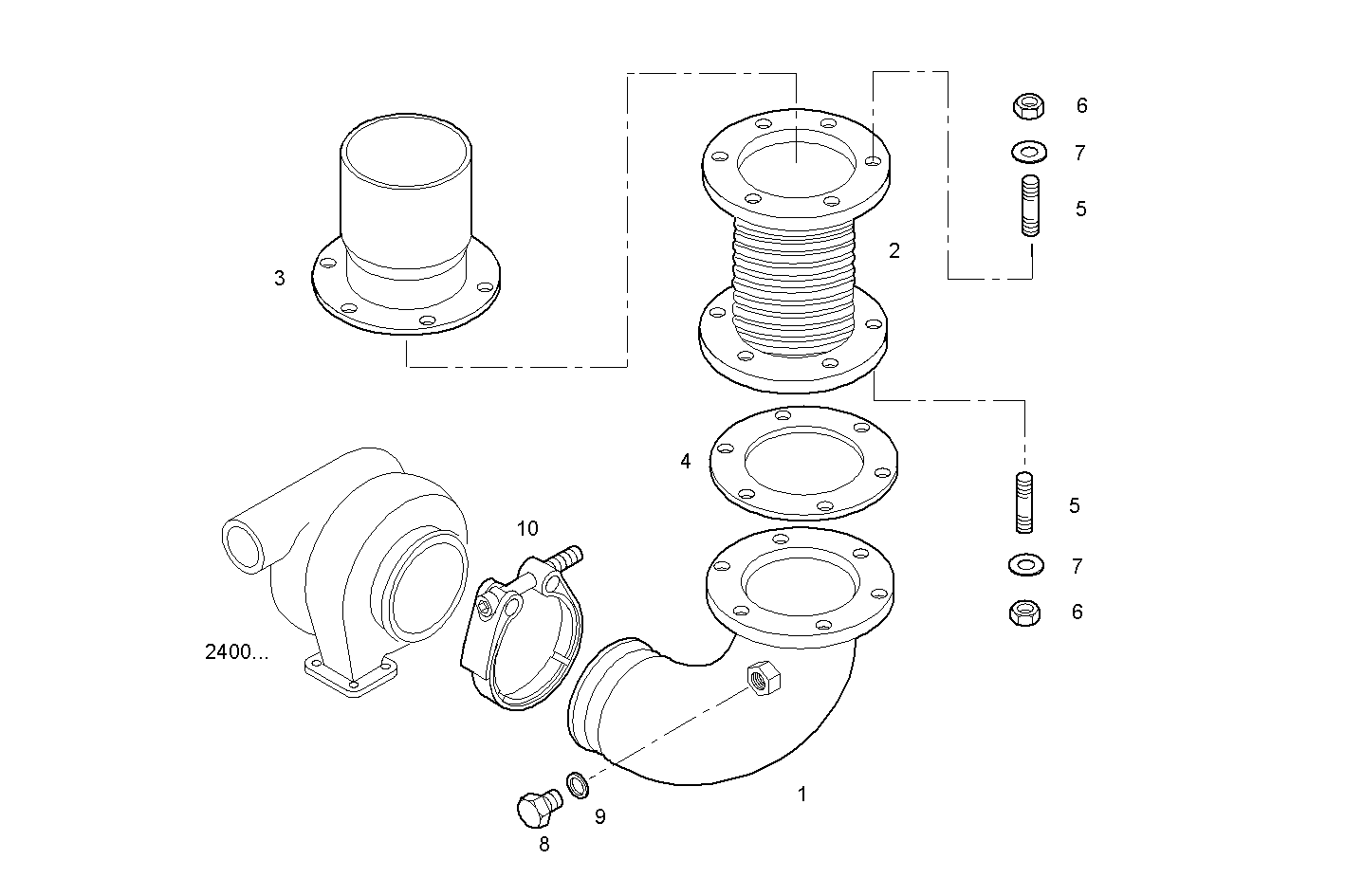

TURNING EXHAUST ELBOW WITH FLEXIBLE
PUC78ENTD20.00A100 — CURSOR 8 - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8036130 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 2 | 8024880 | EXHAUST BELLOWS EXHAUST BELLOWS | 1 | |
| 3 | 8039911 | FLANGE FLANGE | 1 | |
| 4 | 8009600 | GASKET GASKET | 1 | |
| 5 | 16731234 | STUD STUD | 12 | |
| 6 | 17038131 | HEXAGON NUT HEXAGON NUT | 12 | |
| 7 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 8 | 16992211 | THREADED PLUG THREADED PLUG | 2 | |
| 9 | 4858607 | WASHER WASHER | 2 | |
| 10 | 504073261 | CLIP CLIP | 1 |
