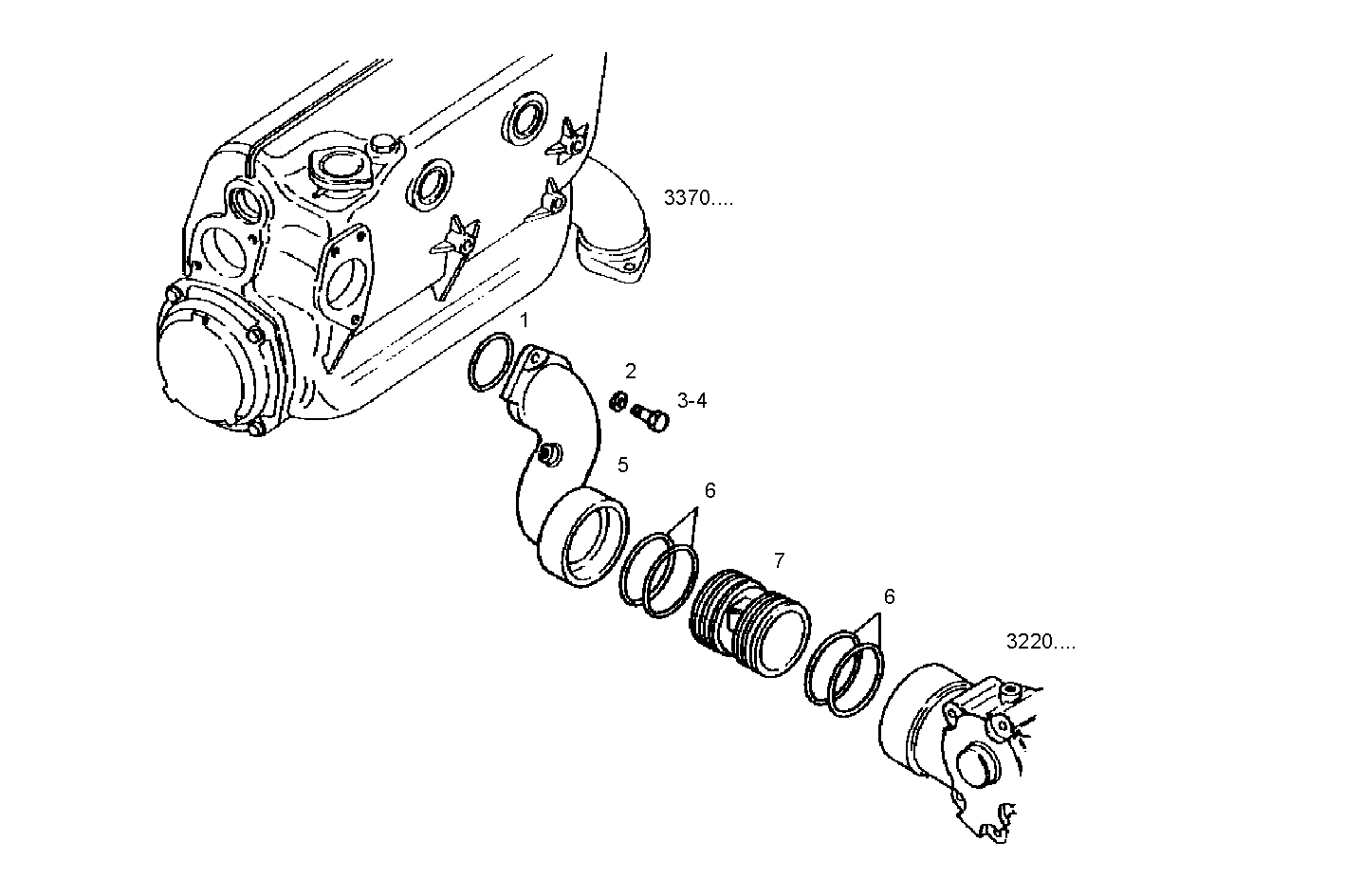

HEAD WATER EXIT PIPE
C78ENAM12.00 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 17290381 | O-RING O-RING | 1 | |
| 2 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 3 | 16606724 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 4 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 8029597 | WATER PIPE WATER PIPE | 1 | |
| 6 | 17290581 | O-RING O-RING | 4 | |
| 7 | 8025307 | WATER PIPE WATER PIPE | 1 |
