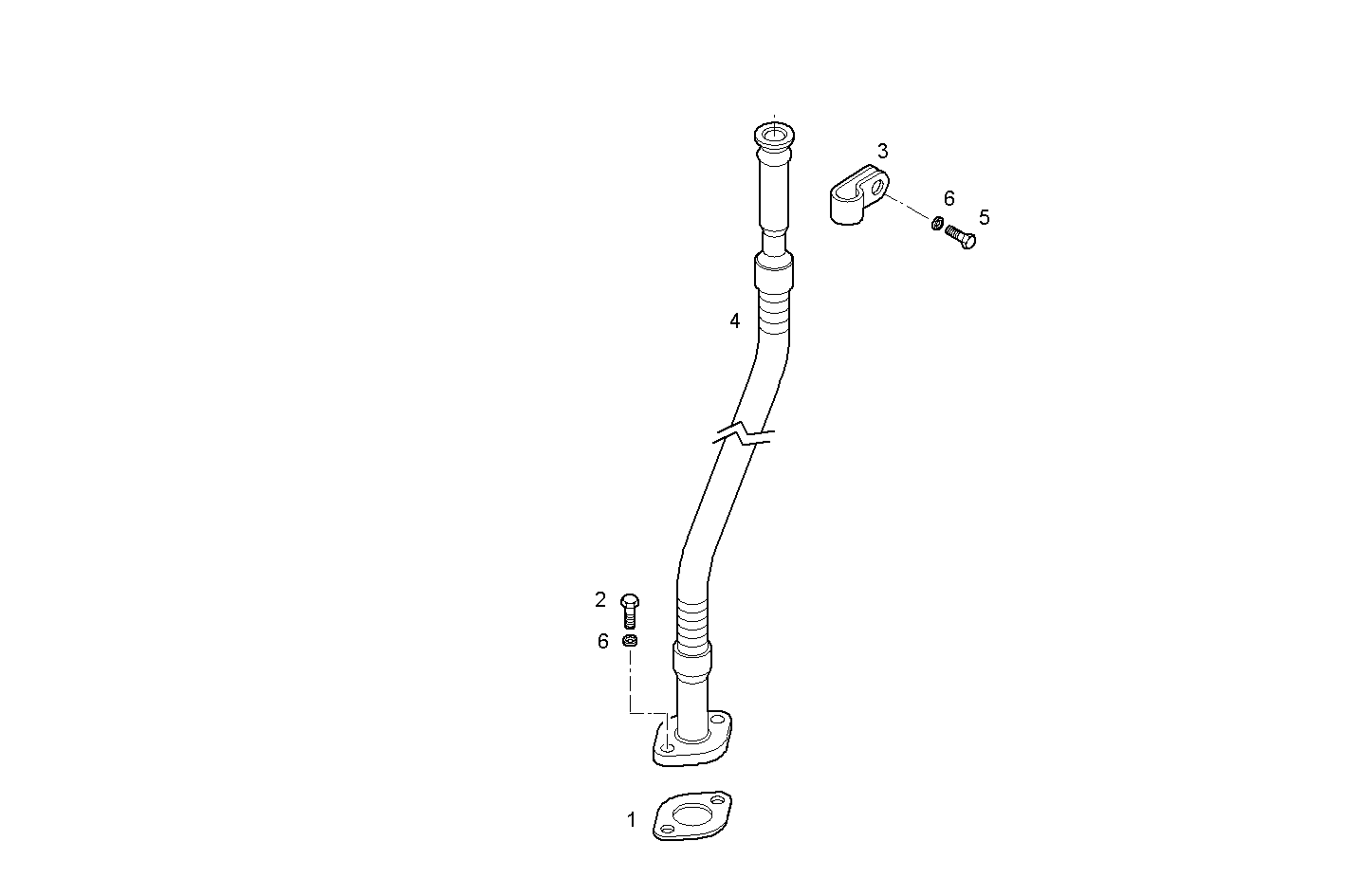

OIL DIPSTICK PIPE
C78ENAM12.00 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4863361 | GASKET GASKET | 1 | |
| 2 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 3 | 8023543 | CLIP CLIP | 1 | |
| 4 | 8030476 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 5 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 17089474 | SPRING WASHER SPRING WASHER | 3 |
