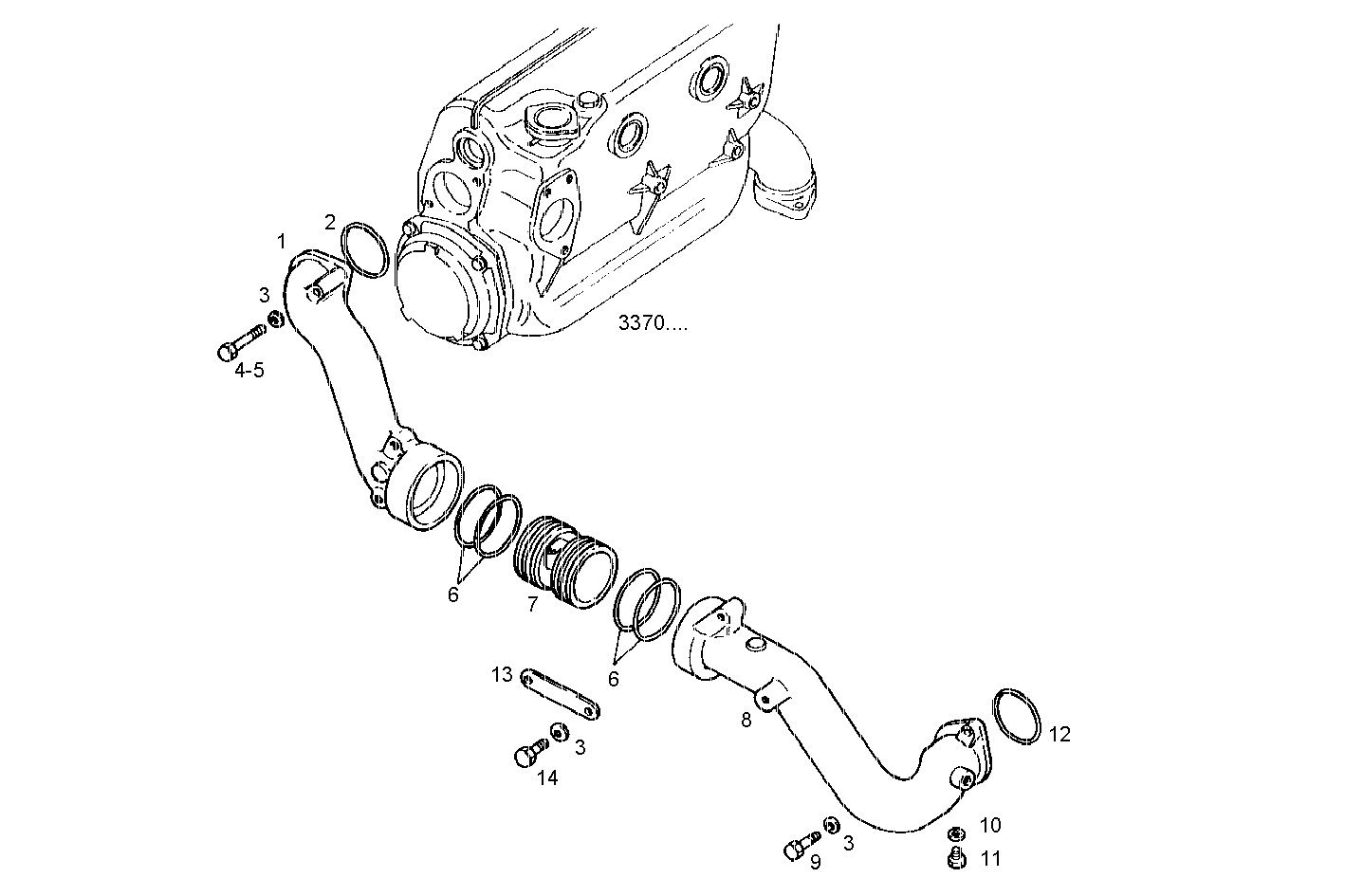

WATER PIPE
C78ENAM12.00 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8030461 | WATER PIPE WATER PIPE | 1 | |
| 2 | 17290381 | O-RING O-RING | 1 | |
| 3 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 4 | 16606624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 17290581 | O-RING O-RING | 4 | |
| 7 | 8025307 | WATER PIPE WATER PIPE | 1 | |
| 8 | 8030462 | WATER PIPE WATER PIPE | 1 | |
| 9 | 16606124 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 99489017 | SEAL GASKET SEAL GASKET | 1 | |
| 11 | 16992240 | THREADED PLUG THREADED PLUG | 1 | |
| 12 | 17290081 | O-RING O-RING | 1 | |
| 13 | 8030509 | RETAINER RETAINER | 1 | |
| 14 | 16605424 | SCREW SCREW | 2 |
