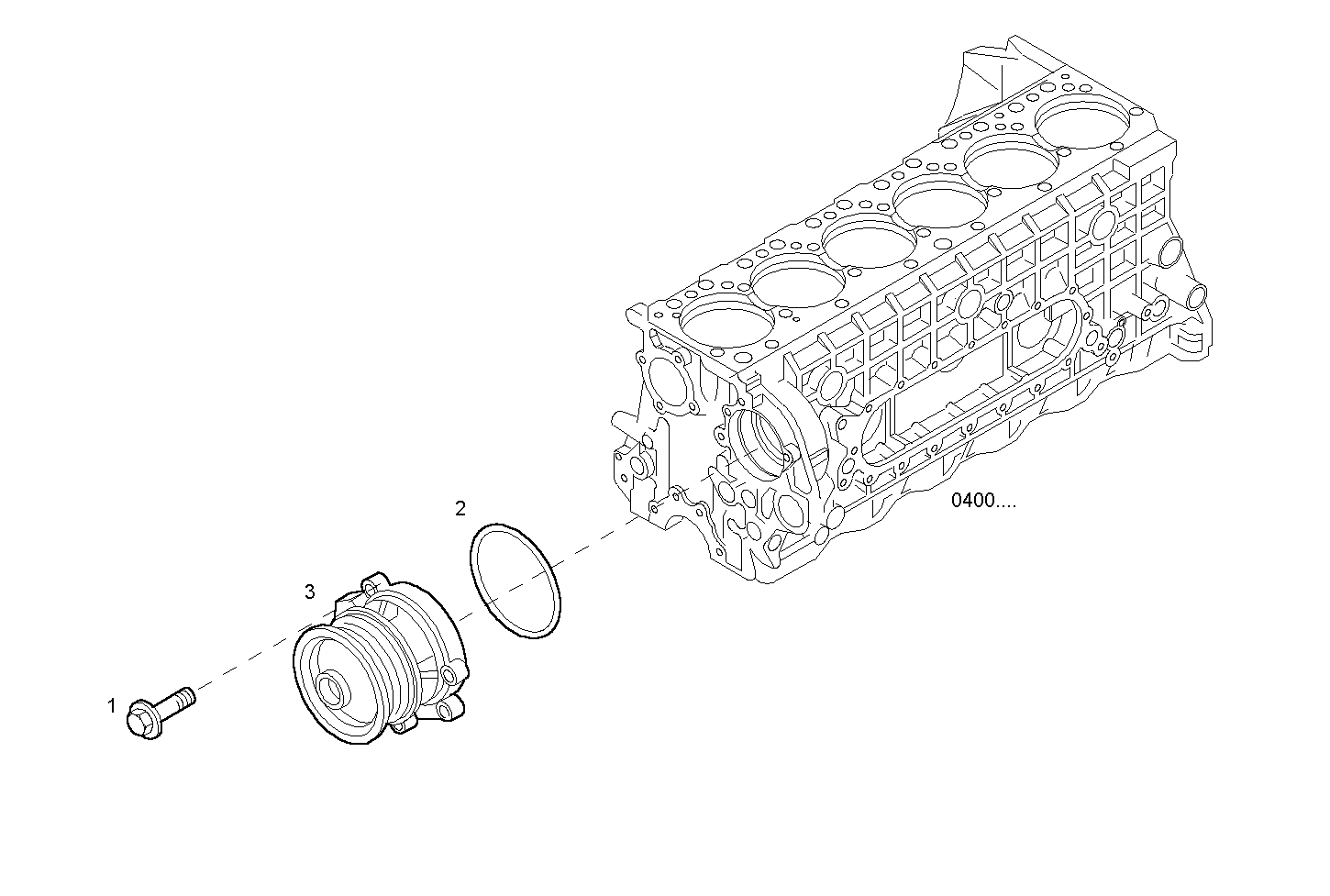

WATER PUMP
C78ENAM12.00 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16673735 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 2 | 17291781 | O-RING O-RING | 1 | |
| 3 | 99483937 | WATER PUMP WATER PUMP | 1 | |
| 4 | 8033833 | SPACING BAR SPACING BAR | 2 |
C78ENAM12.00 — CURSOR 8
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16673735 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 2 | 17291781 | O-RING O-RING | 1 | |
| 3 | 99483937 | WATER PUMP WATER PUMP | 1 | |
| 4 | 8033833 | SPACING BAR SPACING BAR | 2 |
