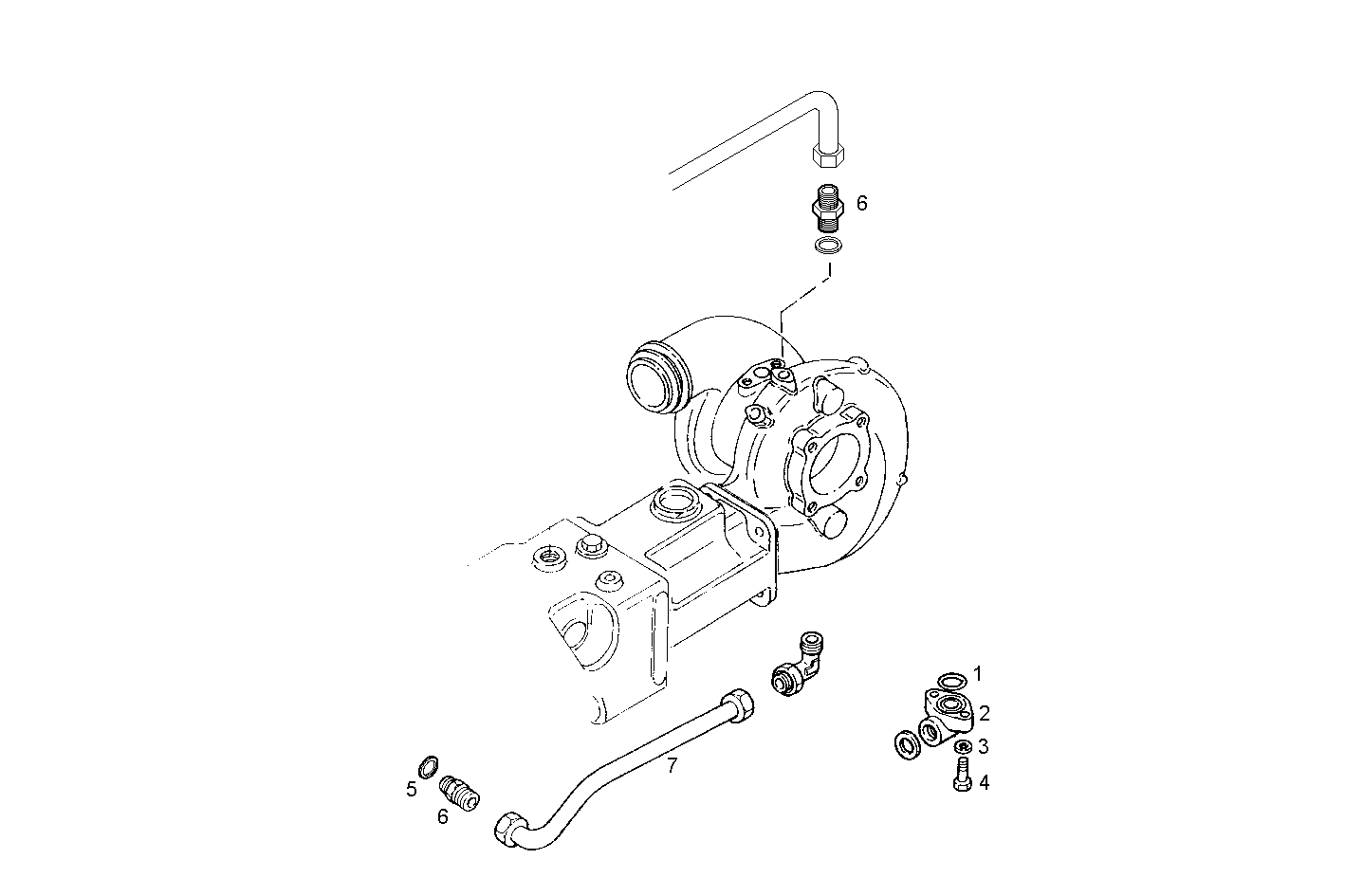

TURBO WATER INLET PIPE
C78ENSM20.10 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 17282381 | O-RING O-RING | 1 | |
| 2 | 8031032 | FLANGED SOCKET FLANGED SOCKET | 1 | |
| 3 | 17088474 | WASHER WASHER | 2 | |
| 4 | 16604024 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 99489022 | SEAL GASKET SEAL GASKET | 1 | |
| 6 | 16500514 | THREADED UNION THREADED UNION | 2 | |
| 7 | 8031214 | WATER PIPE WATER PIPE | 1 |
