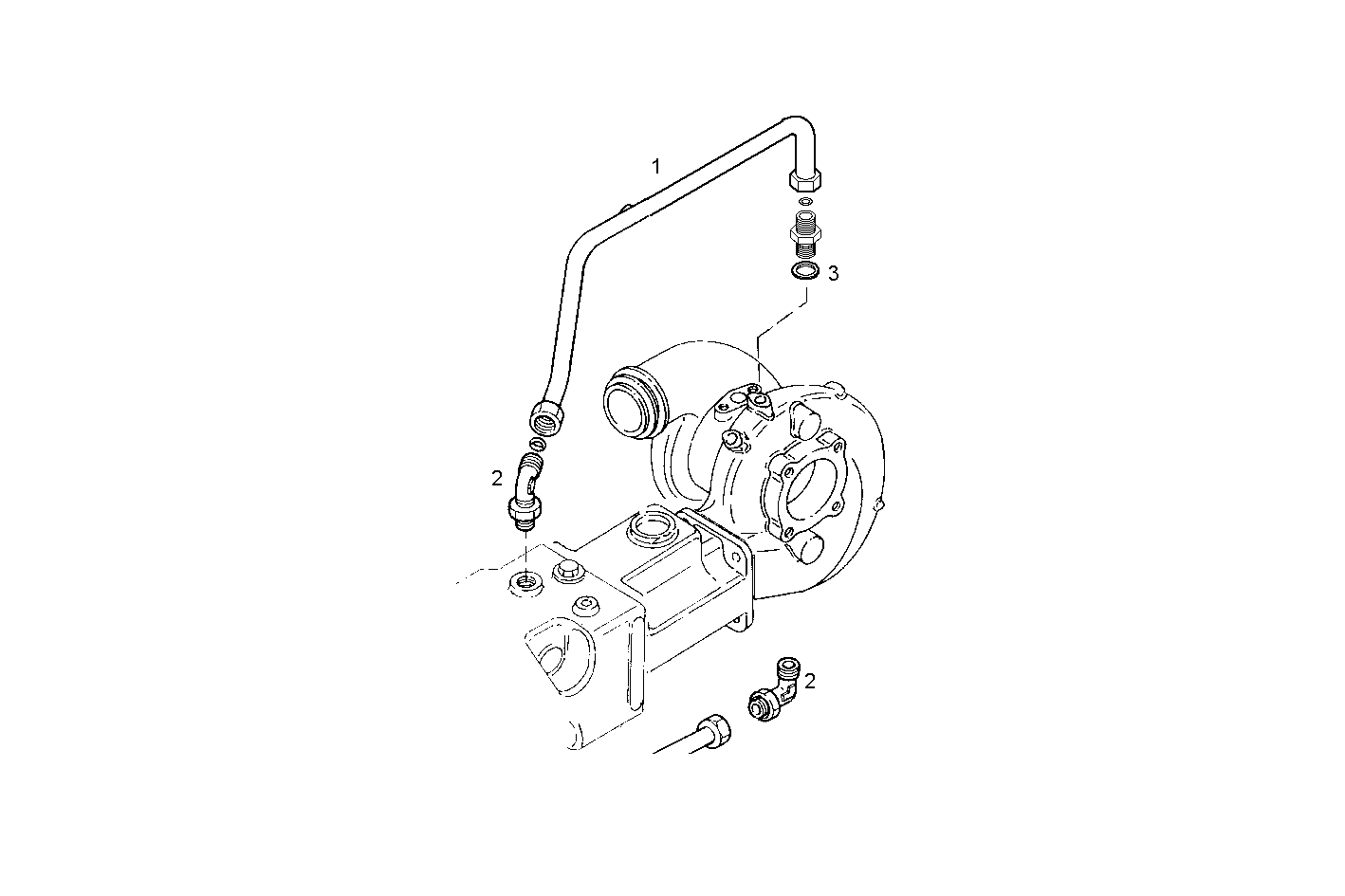

TURBO WATER OUTLET PIPE
C78ENSM20.10 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8030751 | WATER PIPE WATER PIPE | 1 | |
| 2 | 98433191 | PIPE SOCKET PIPE SOCKET | 2 | |
| 3 | 17750985 | WASHER WASHER | 2 |
C78ENSM20.10 — CURSOR 8
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8030751 | WATER PIPE WATER PIPE | 1 | |
| 2 | 98433191 | PIPE SOCKET PIPE SOCKET | 2 | |
| 3 | 17750985 | WASHER WASHER | 2 |
