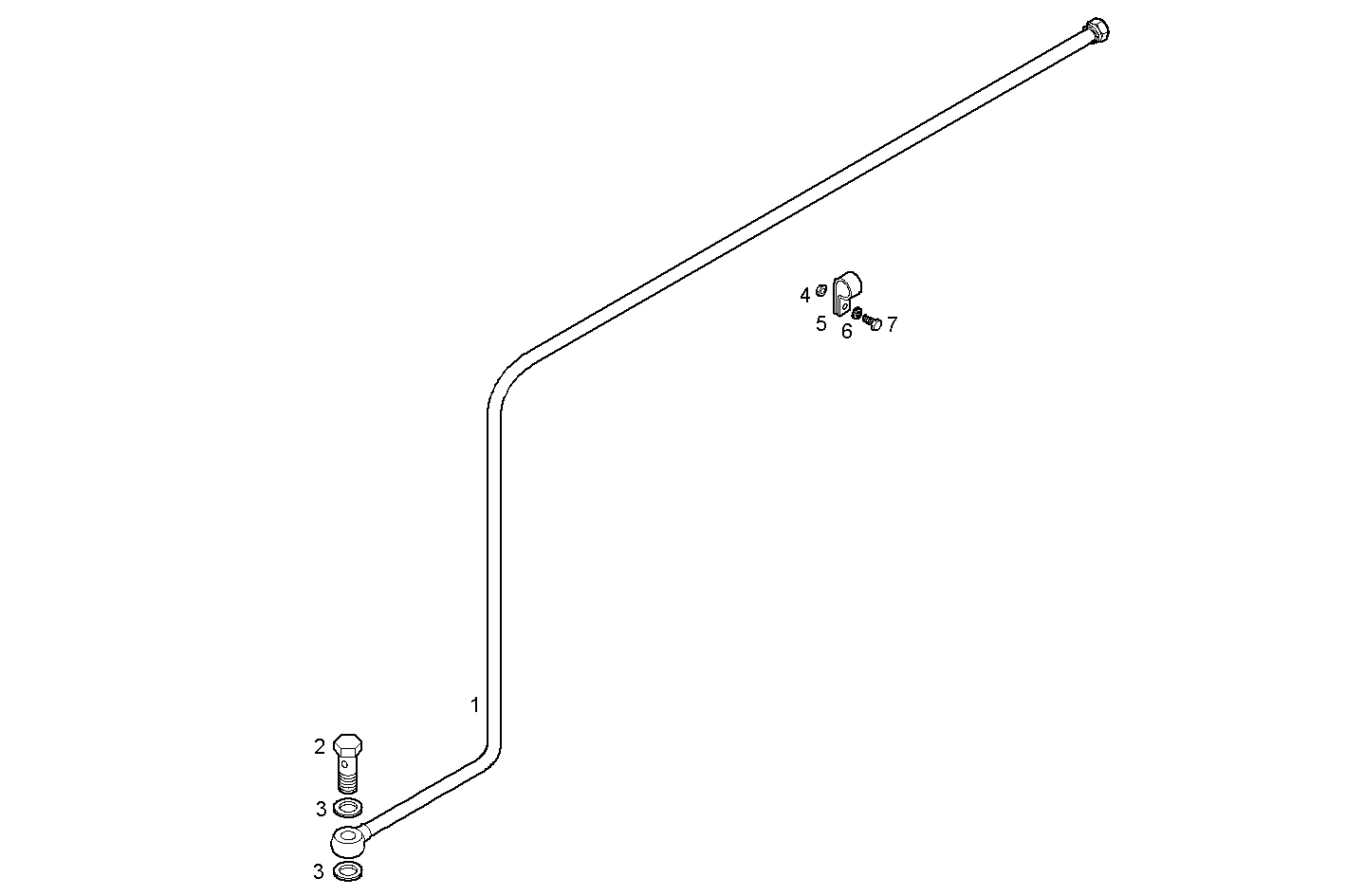

BLEEDER TUBING
C78ENSM20.30 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8040346 | BREATHER PIPE BREATHER PIPE | 1 | |
| 2 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 3 | 98474305 | WASHER WASHER | 2 | |
| 4 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 | |
| 5 | 17314790 | FASTENING BRACKET FASTENING BRACKET | 2 | |
| 6 | 17800374 | SPRING WASHER SPRING WASHER | 2 | |
| 7 | 16603425 | HEXAGON BOLT HEXAGON BOLT | 1 |
