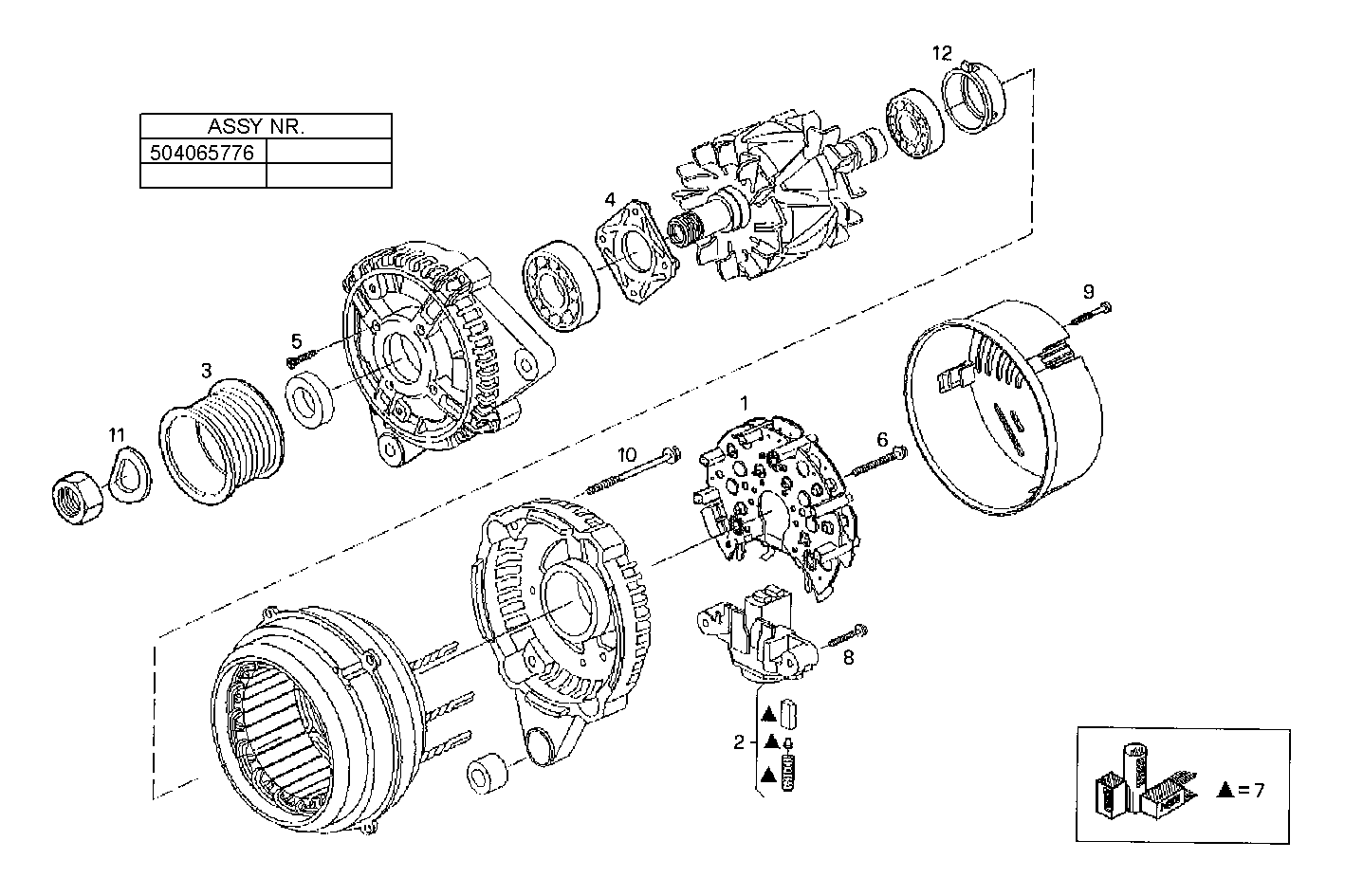

GENERATOR (COMPONENTS)
C78ENTE60.00 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 42532974 | RECTIFIER BRIDGE RECTIFIER BRIDGE | 1 | |
| 2 | 42532975 | VOLTAGE REGULATOR VOLTAGE REGULATOR | 1 | |
| 3 | 42533840 | GENERATOR PULLEY GENERATOR PULLEY | 1 | |
| 4 | 42531166 | PLATE PLATE | 1 | |
| 5 | 42531167 | C'SUNK SCREW C'SUNK SCREW | 4 | |
| 6 | 42531175 | SCREW SCREW | 3 | |
| 7 | 42531177 | CARBON BRUSHES CARBON BRUSHES | 1 | |
| 8 | 42531178 | SCREW SCREW | 2 | |
| 9 | 42531180 | SCREW SCREW | 3 | |
| 10 | 42531181 | SCREW SCREW | 4 | |
| 11 | 42531183 | SPRING WASHER SPRING WASHER | 1 | |
| 12 | 42532973 | RING RING | 1 |
