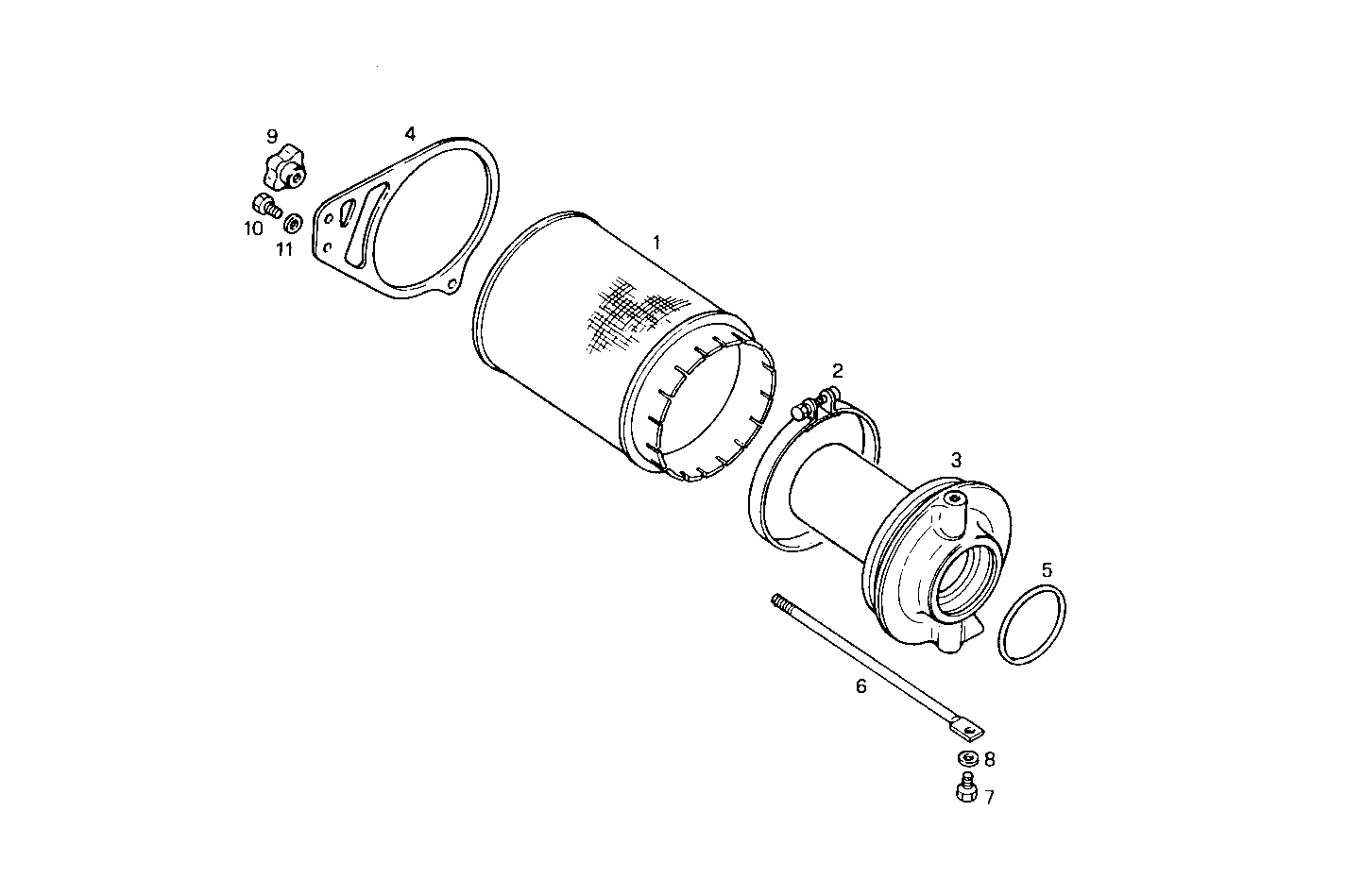

AIR CLEANER
C78ENTM30.10-C 12/03 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8110994 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 8017374 | CLIP CLIP | 1 | |
| 3 | 8031007 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 4 | 8030489 | RETAINER RETAINER | 1 | |
| 5 | 17291481 | O-RING O-RING | 1 | |
| 6 | 8030567 | TIE ROD TIE ROD | 1 | |
| 7 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 17088674 | WASHER WASHER | 1 | |
| 9 | 8030569 | HANDWHEEL HANDWHEEL | 1 | |
| 10 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 2 |
