CABLES
C78ENTM30.10-C 12/03 — CURSOR 8

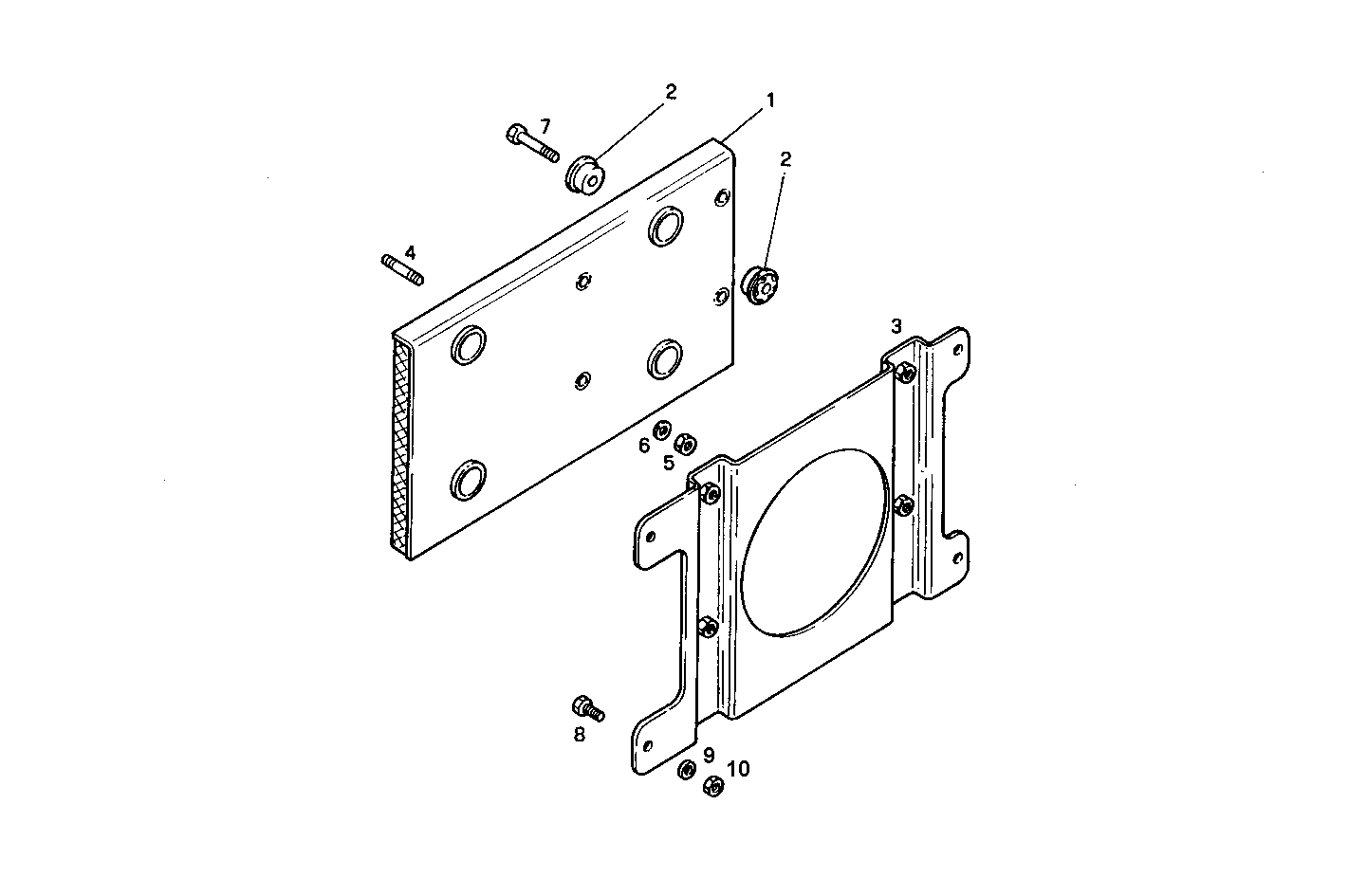

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8030938 | SUPPORT SUPPORT | 1 | |
| 2 | 98498817 | DOWEL DOWEL | 8 | |
| 3 | 8030939 | SUPPORT SUPPORT | 1 | |
| 4 | 16729624 | STUD STUD | 4 | |
| 5 | 17037921 | NUT NUT | 4 | |
| 6 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 7 | 16586924 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 8 | 16597224 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 17088774 | WASHER WASHER | 4 | |
| 10 | 17037821 | HEXAGON NUT HEXAGON NUT | 4 |
