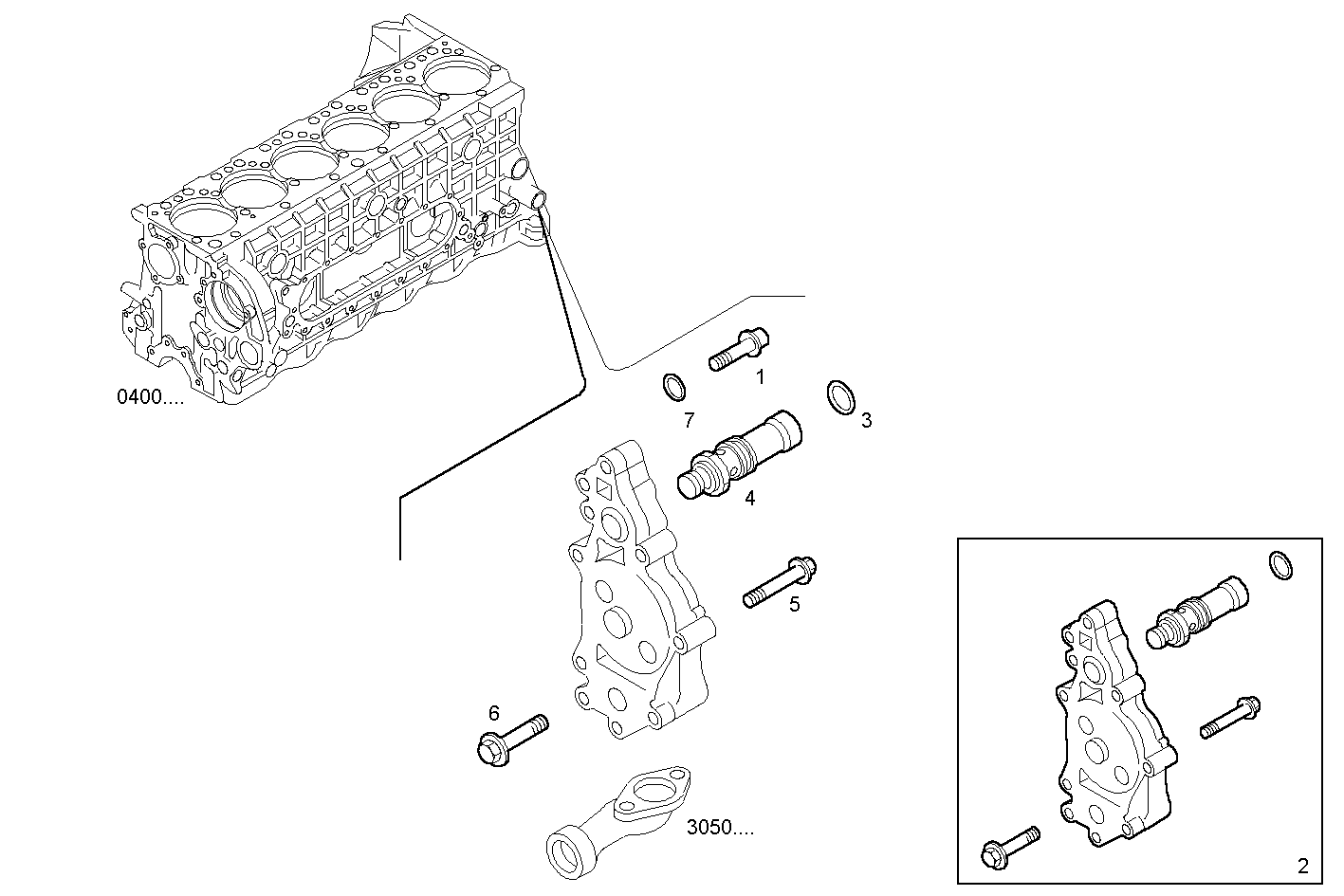

OIL PUMP
C78ENTM30.10-C 12/03 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500365363 | SCREW SCREW | 8 | |
| 2 | 99482251 | LUBE OIL PUMP LUBE OIL PUMP | 1 | |
| 3 | 17282181 | O-RING O-RING | 1 | |
| 4 | 500304389 | SAFETY VALVE SAFETY VALVE | 1 | |
| 5 | 16591724 | SCREW SCREW | 1 | |
| 6 | 16585724 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 17089474 | SPRING WASHER SPRING WASHER | 8 |
