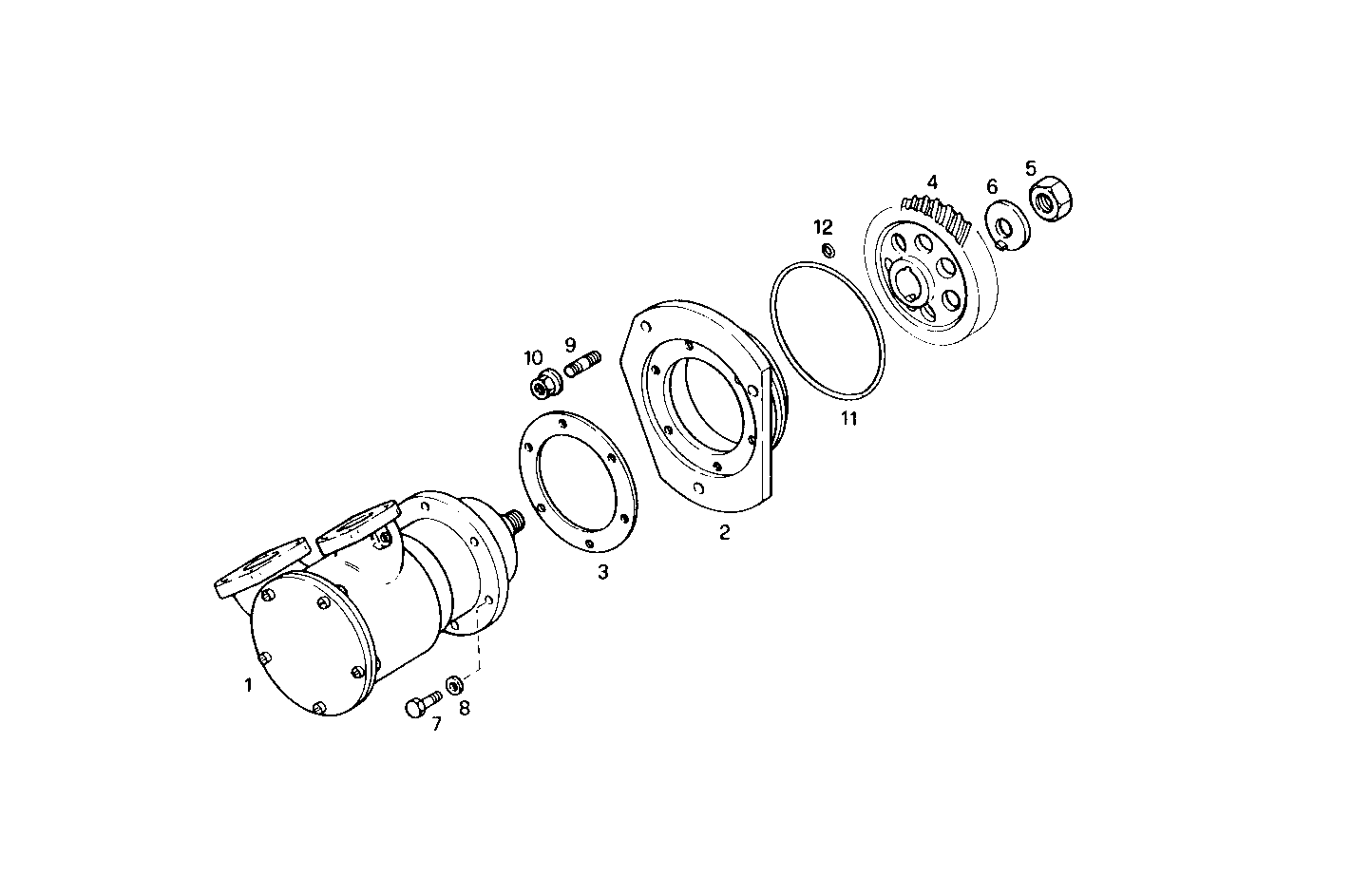

SEA WATER PUMP
C78ENTM30.10-C 12/03 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8112445 | SEA WATER PUMP SEA WATER PUMP | 1 | |
| 2 | 8027010 | SPACING BAR SPACING BAR | 1 | |
| 3 | 8008952 | GASKET GASKET | 1 | |
| 4 | 8027011 | GEAR GEAR | 1 | |
| 5 | 17039221 | NUT NUT | 1 | |
| 6 | 8027036 | LOCKING PLATE LOCKING PLATE | 1 | |
| 7 | 16605724 | SCREW SCREW | 6 | |
| 8 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 9 | 16760524 | STUD STUD | 3 | |
| 10 | 17044921 | HEXAGON NUT HEXAGON NUT | 3 | |
| 11 | 17292081 | O-RING O-RING | 1 | |
| 12 | 17281381 | O-RING O-RING | 1 |
