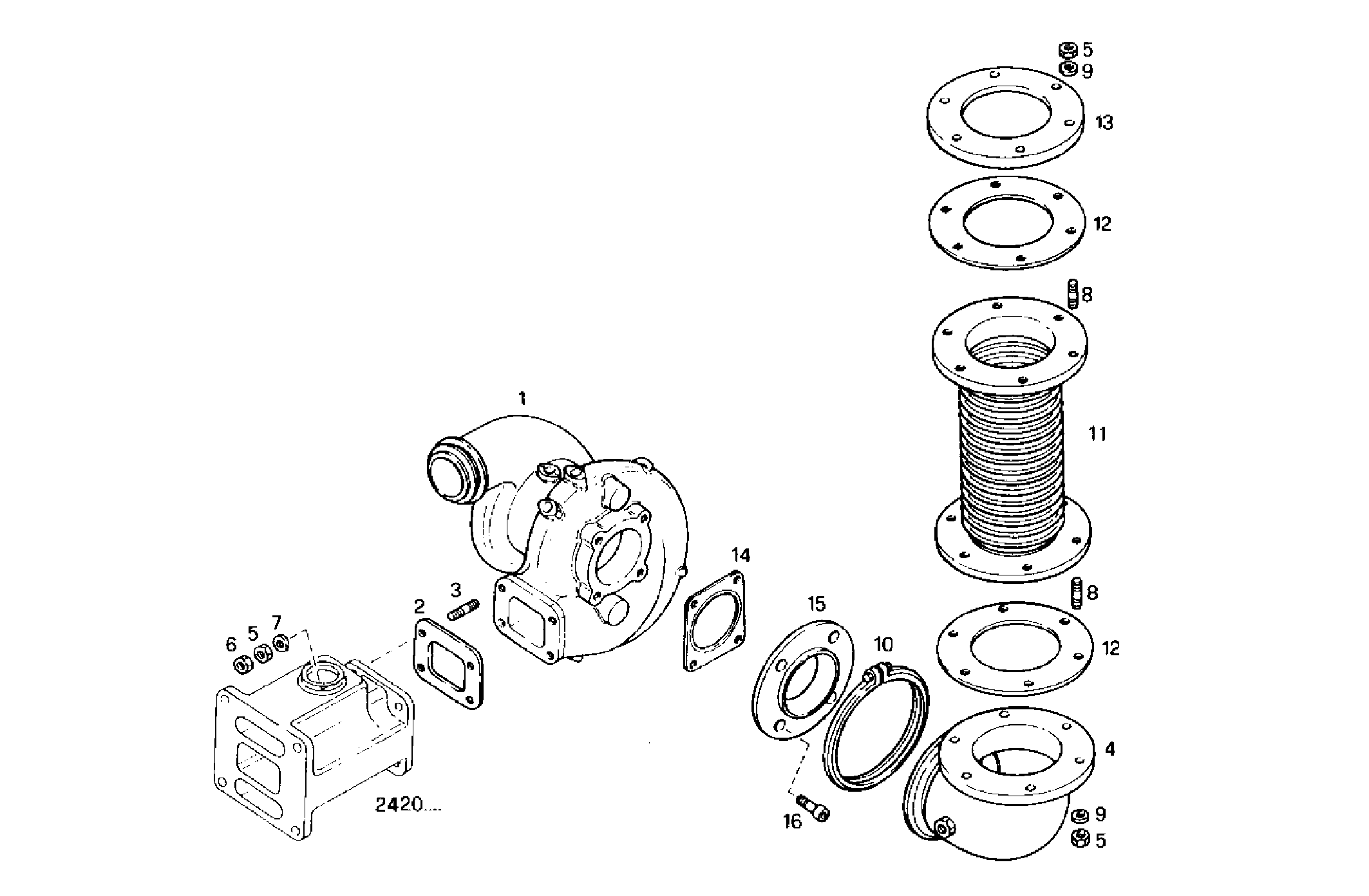

TURBOCHARGER
C78ENTM30.10-C 12/03 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8030366 | WATER COOL.TURBOCHARGER WATER COOL.TURBOCHARGER | 1 | |
| 2 | 98428396 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 8017871 | STUD STUD | 4 | |
| 4 | 8032194 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 5 | 17038131 | HEXAGON NUT HEXAGON NUT | 16 | |
| 6 | 16979631 | HEXAGON NUT HEXAGON NUT | 4 | |
| 7 | 16665604 | WASHER WASHER | 4 | |
| 8 | 16731234 | STUD STUD | 12 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 10 | 4886025 | CLIP CLIP | 1 | |
| 11 | 8016096 | EXHAUST BELLOWS EXHAUST BELLOWS | 1 | |
| 12 | 8010072 | GASKET GASKET | 2 | |
| 13 | 8022504 | FLANGE FLANGE | 1 | |
| 14 | 8030906 | GASKET GASKET | 1 | |
| 15 | 8032196 | FLANGE FLANGE | 1 | |
| 16 | 16692024 | SCREW SCREW | 4 |
