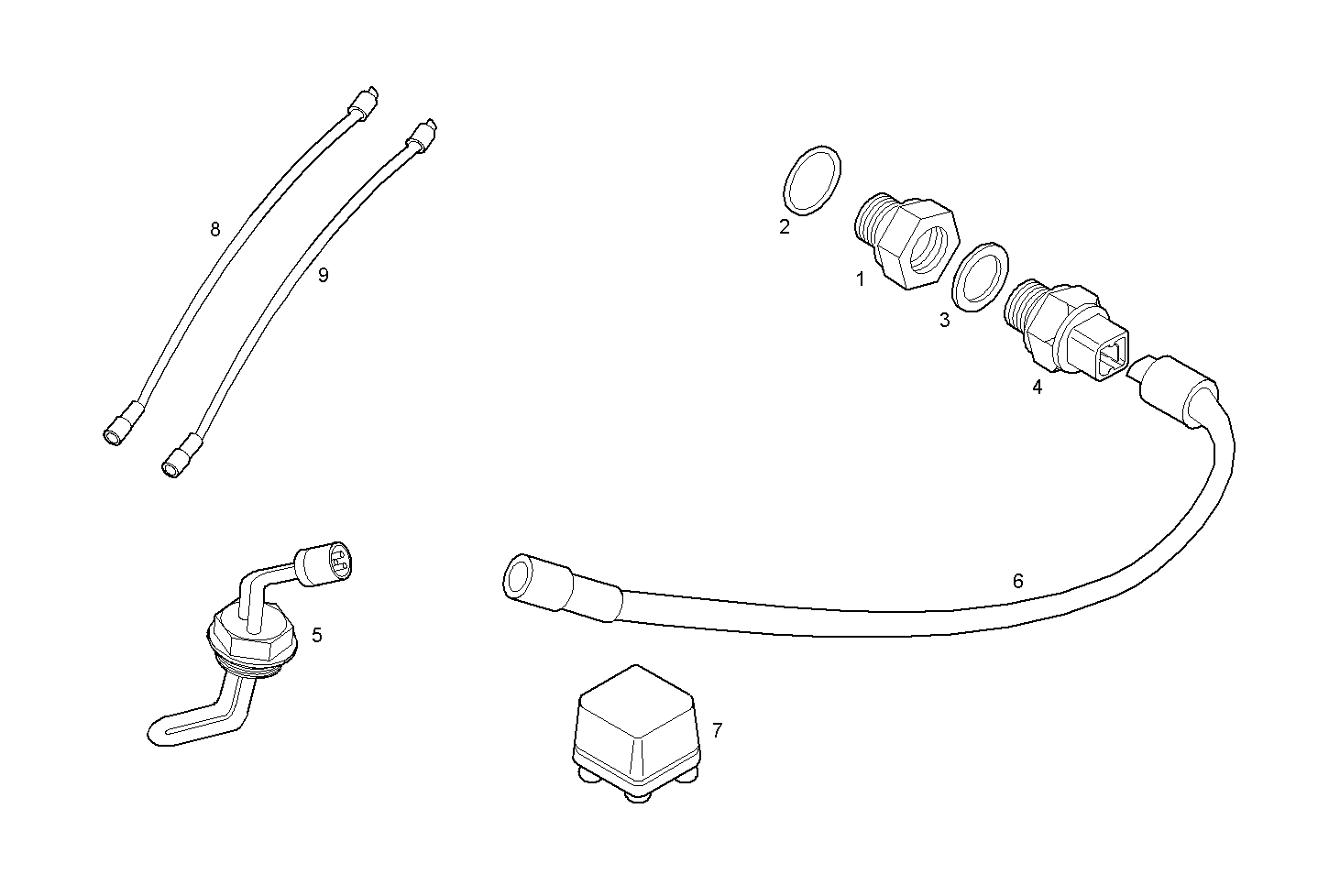

WATER PREHEATER DEVICE - 220V
C78ENTM30.10-C 12/03 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4927760 | PIPE SOCKET PIPE SOCKET | 1 | |
| 2 | 99489022 | SEAL GASKET SEAL GASKET | 1 | |
| 3 | 98474308 | SEAL GASKET SEAL GASKET | 1 | |
| 4 | 8038597 | THERMOSWITCH THERMOSWITCH | 1 | |
| 5 | 8031883 | RESISTOR RESISTOR | 1 | |
| 6 | 504084179 | WIRE/CABLE WIRE/CABLE | 1 | |
| 7 | 8038600 | RELAY RELAY | 1 | |
| 8 | 8038507 | WIRE/CABLE WIRE/CABLE | 1 | |
| 9 | 503111089 | WIRE/CABLE WIRE/CABLE | 1 |
