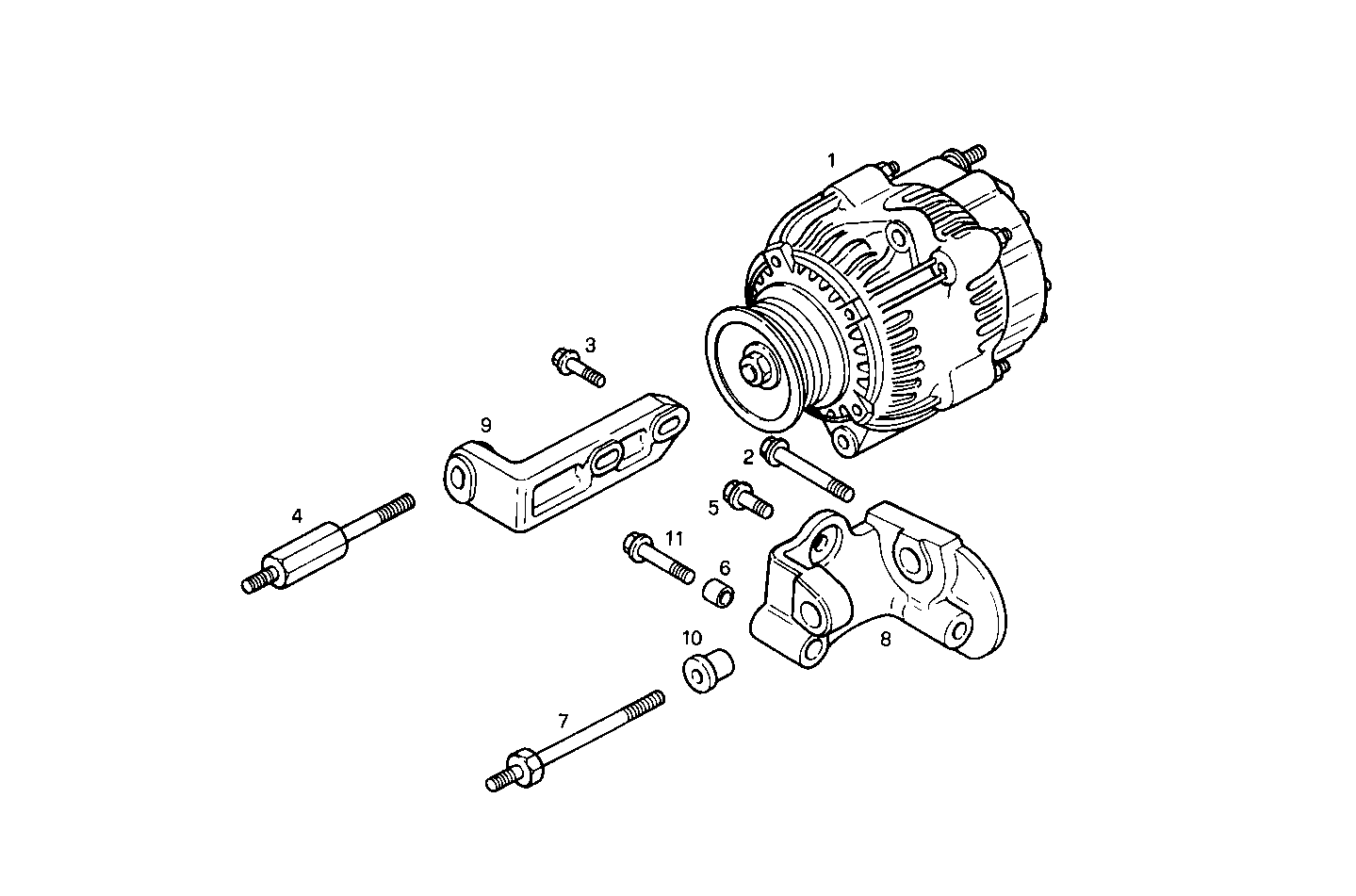

ALTERNATOR
C78ENTM30.10-D 01/04 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8036119 | ALTERNATOR ALTERNATOR | 1 | |
| 2 | 8030496 | STUD STUD | 1 | |
| 3 | 16586524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 8030495 | STUD STUD | 1 | |
| 5 | 16587124 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 98405462 | DOWEL PIN DOWEL PIN | 2 | |
| 7 | 99474161 | SCREW SCREW | 1 | |
| 8 | 99483766 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 9 | 8033776 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 10 | 99484032 | SPACER BUSH SPACER BUSH | 1 | |
| 11 | 16586624 | HEXAGON BOLT HEXAGON BOLT | 1 |
