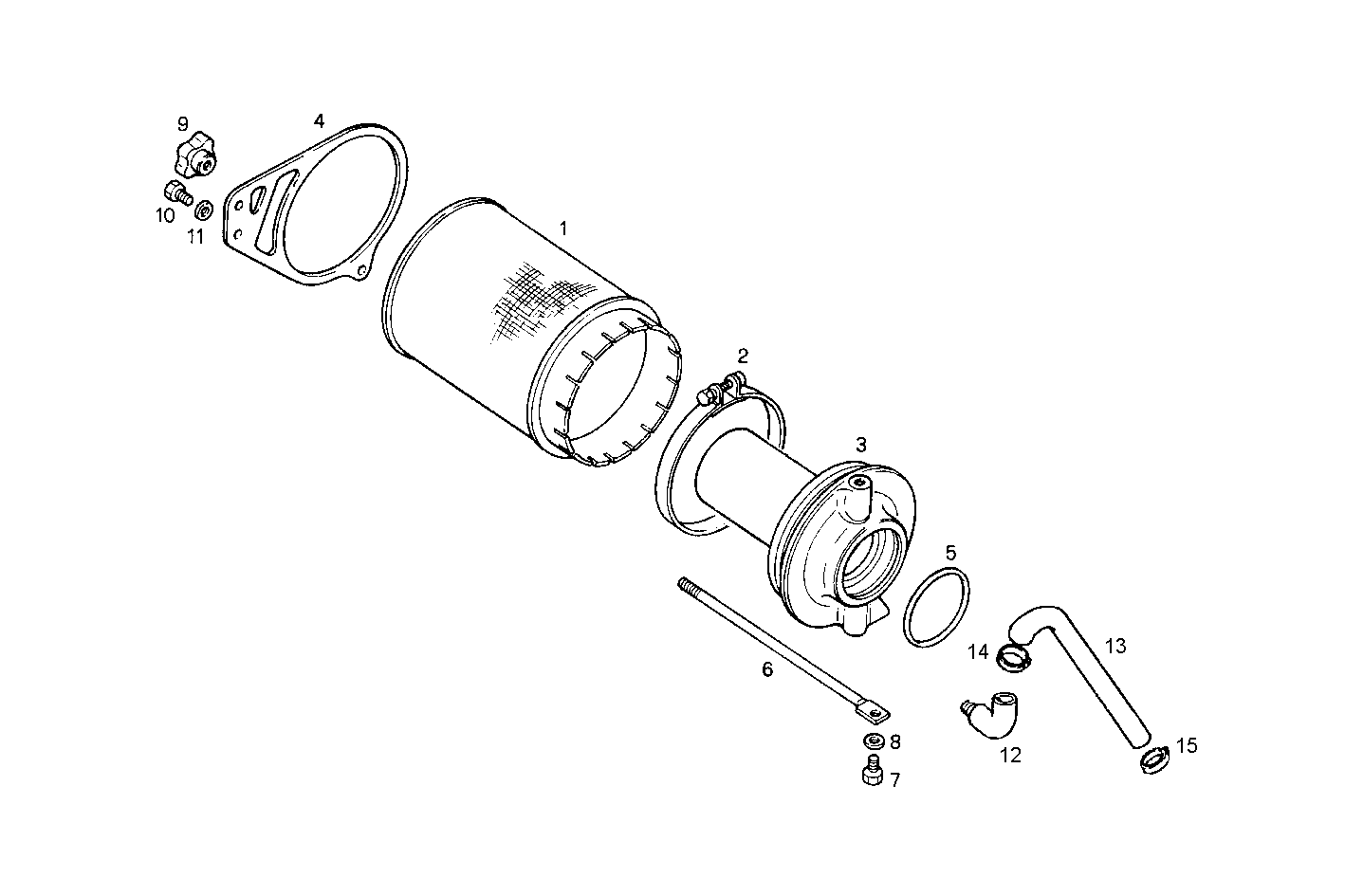

AIR CLEANER
C78ENTM30.10A002 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8032993 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 8017374 | CLIP CLIP | 1 | |
| 3 | 8034872 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 4 | 8036553 | RETAINER RETAINER | 1 | |
| 5 | 17291481 | O-RING O-RING | 1 | |
| 6 | 8030567 | TIE ROD TIE ROD | 1 | |
| 7 | 16603677 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 17088474 | WASHER WASHER | 1 | |
| 9 | 8030569 | HANDWHEEL HANDWHEEL | 1 | |
| 10 | 16605534 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 12 | 4527314 | PIPE SOCKET PIPE SOCKET | 1 | |
| 13 | 8031044 | HOSE HOSE | 1 | |
| 14 | 17764693 | CLIP CLIP | 1 | |
| 15 | 17764593 | CLIP CLIP | 1 |
