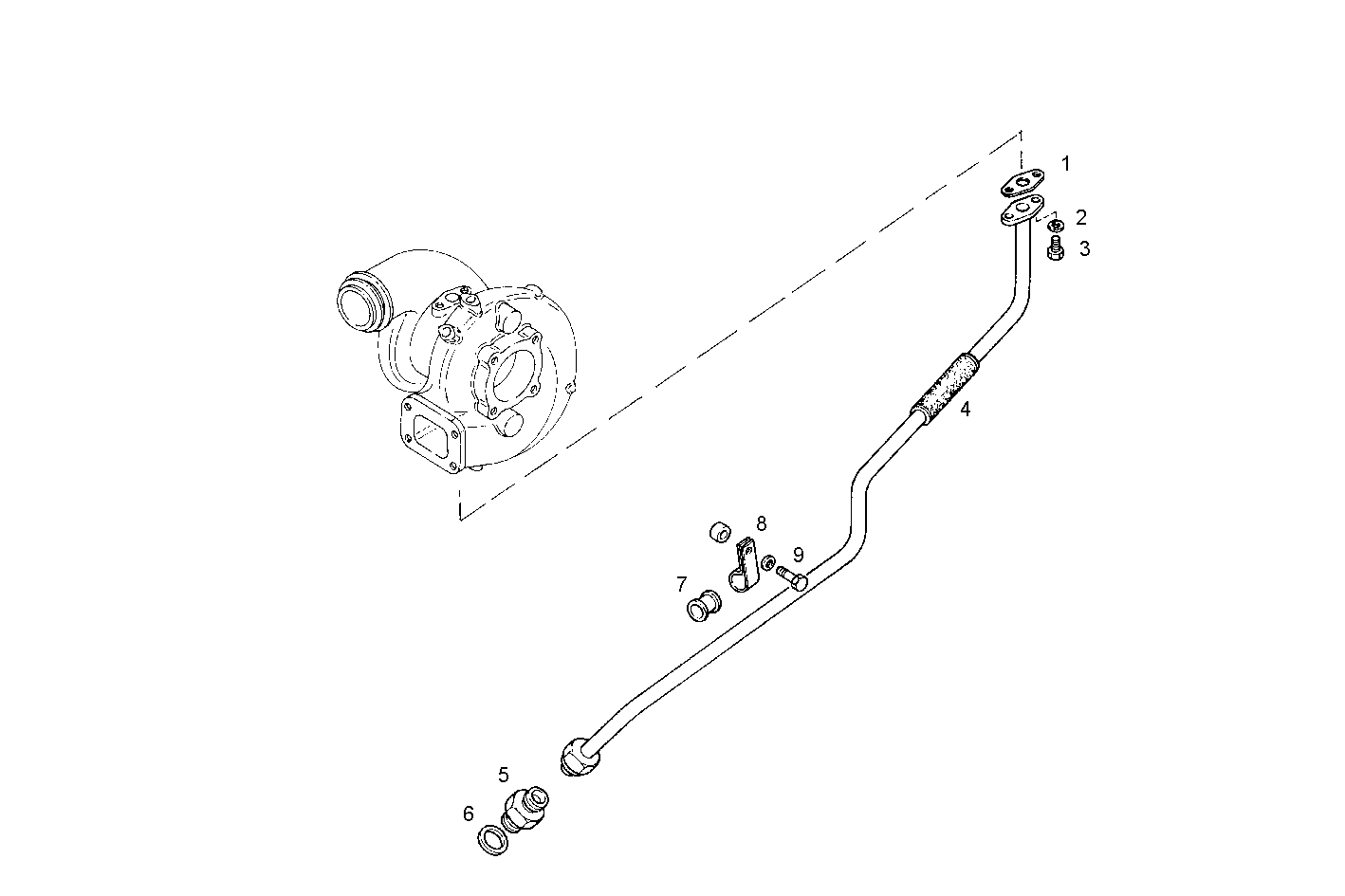

RETURN OIL LINE
C78ENTM30.10A002 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98412509 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 2 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 3 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 8030755 | OIL LINE OIL LINE | 1 | |
| 5 | 8031297 | THREADED UNION THREADED UNION | 1 | |
| 6 | 18064760 | GASKET GASKET | 1 | |
| 7 | 4747140 | RUBBER PAD RUBBER PAD | 1 | |
| 8 | 8033225 | CLIP CLIP | 1 | |
| 9 | 16598224 | HEXAGON BOLT HEXAGON BOLT | 1 |
