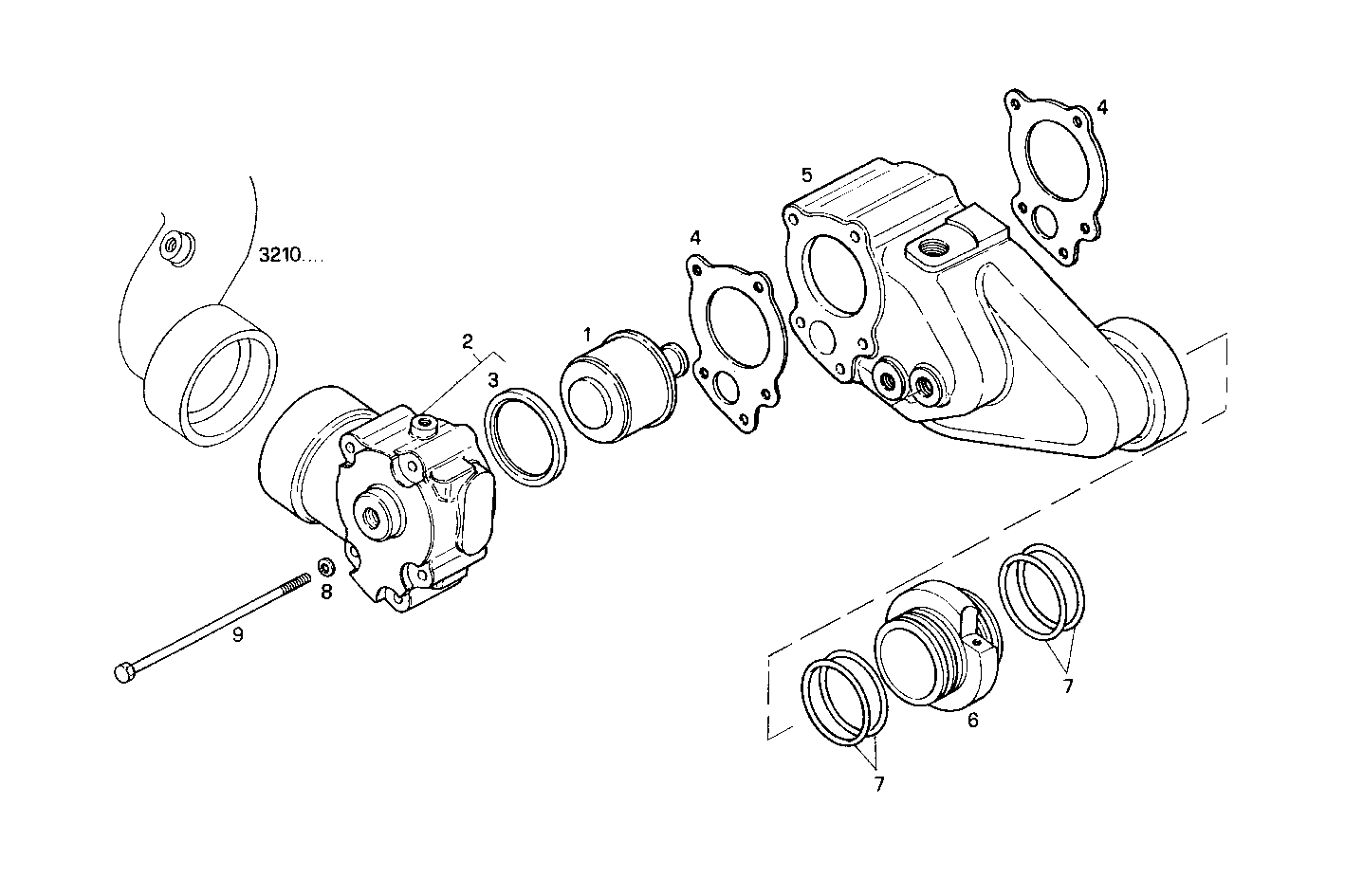

THERMOSTAT
C78ENTM30.10A002 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8032239 | THERMOSTAT THERMOSTAT | 1 | |
| 2 | 8030463 | THERM.BODY COVER THERM.BODY COVER | 1 | |
| 3 | 98451661 | WASHER WASHER | 1 | |
| 4 | 99443426 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 5 | 8029589 | THERMOSTAT BODY THERMOSTAT BODY | 1 | |
| 6 | 8028161 | SPACING BAR SPACING BAR | 2 | |
| 7 | 17290181 | O-RING O-RING | 8 | |
| 8 | 17089474 | SPRING WASHER SPRING WASHER | 5 | |
| 9 | 16607124 | HEXAGON BOLT HEXAGON BOLT | 5 |
