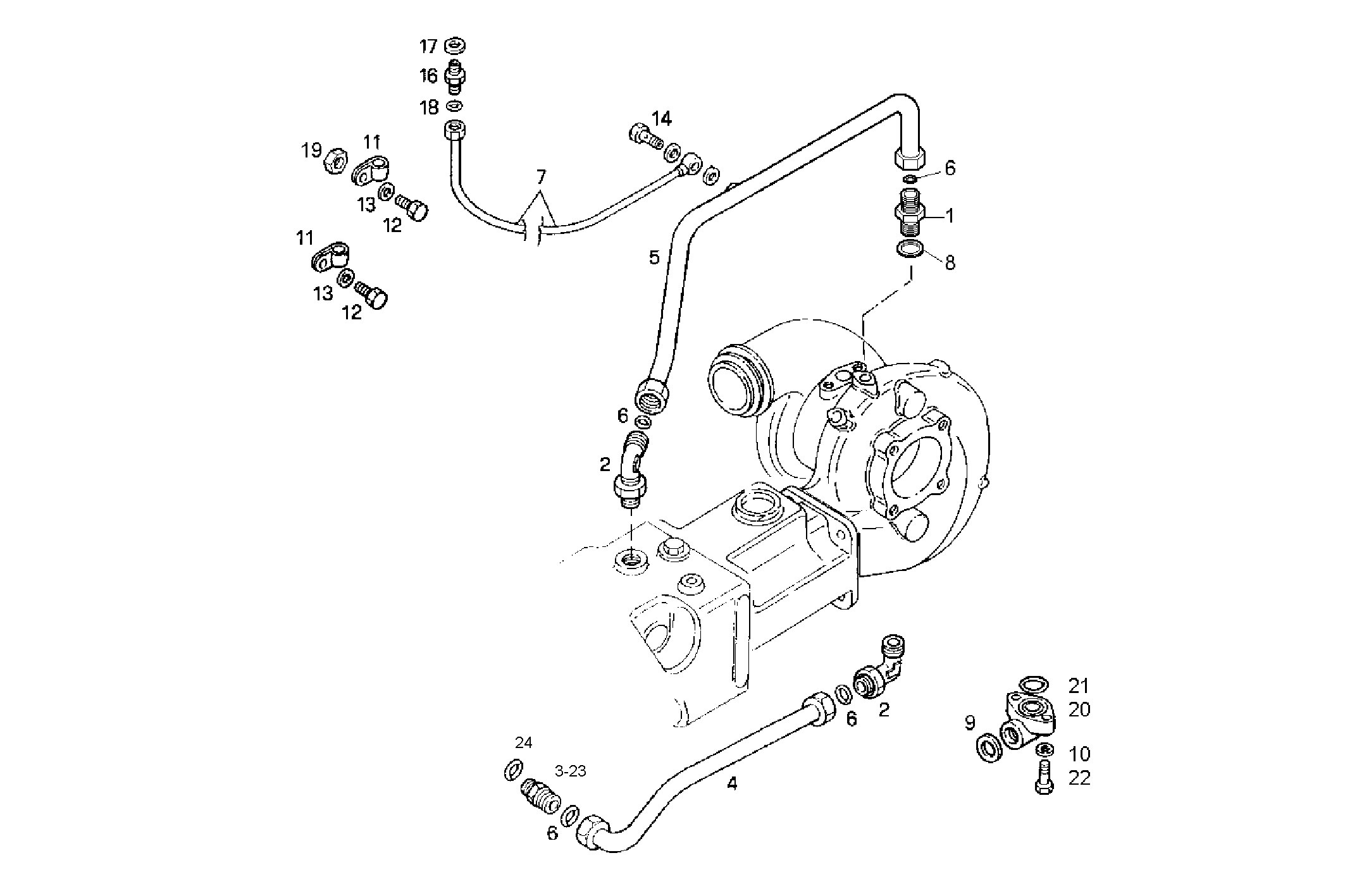

WATER LINES
C78ENTM30.10A002 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16500514 | THREADED UNION THREADED UNION | 1 | |
| 2 | 98433191 | PIPE SOCKET PIPE SOCKET | 2 | |
| 3 | 8030710 | PIPE SOCKET PIPE SOCKET | 1 | |
| 4 | 8031214 | WATER PIPE WATER PIPE | 1 | |
| 5 | 8030751 | WATER PIPE WATER PIPE | 1 | |
| 6 | 8024650 | O-RING O-RING | 4 | |
| 7 | 8030763 | WATER PIPE WATER PIPE | 1 | |
| 8 | 99489022 | SEAL GASKET SEAL GASKET | 1 | |
| 9 | 17750985 | WASHER WASHER | 2 | |
| 10 | 17088474 | WASHER WASHER | 2 | |
| 11 | 17314790 | FASTENING BRACKET FASTENING BRACKET | 2 | |
| 12 | 16603425 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 17800374 | SPRING WASHER SPRING WASHER | 2 | |
| 14 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 15 | 98474305 | WASHER WASHER | 2 | |
| 16 | 16500114 | THREADED UNION THREADED UNION | 1 | |
| 17 | 99489017 | SEAL GASKET SEAL GASKET | 1 | |
| 18 | 8024645 | O-RING O-RING | 2 | |
| 19 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 | |
| 20 | 8031032 | FLANGED SOCKET FLANGED SOCKET | 1 | |
| 21 | 17282381 | O-RING O-RING | 1 | |
| 22 | 16604124 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 23 | 16500511 | THREADED UNION THREADED UNION | 1 | |
| 24 | 99489022 | SEAL GASKET SEAL GASKET | 1 |
