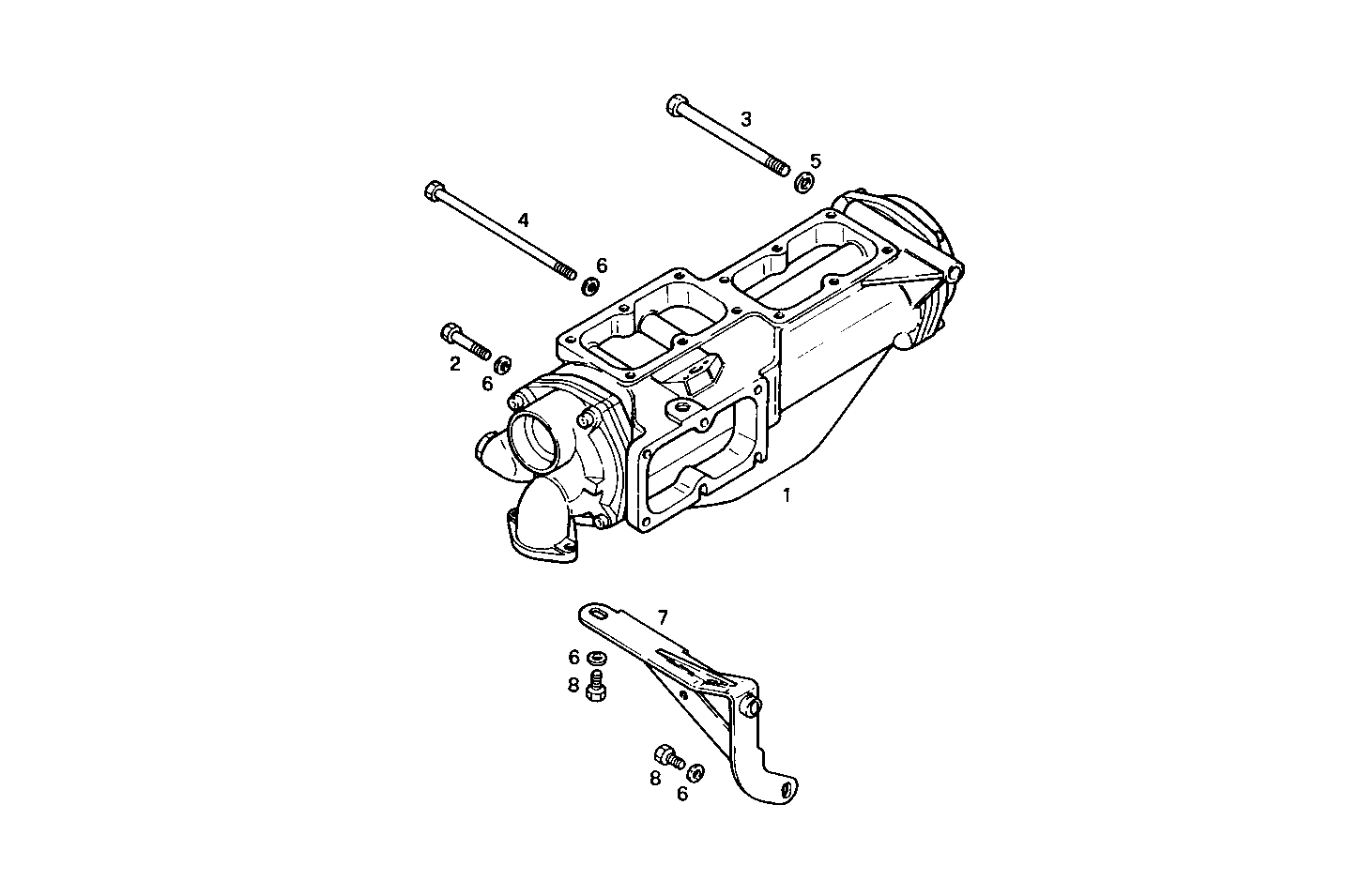

AIR - WATER HEAT EXCHANGER
C78ENTM50.10 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8028905 | AIR/WATER HEAT EXCHANGER AIR/WATER HEAT EXCHANGER | 1 | |
| 2 | 16607824 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 3 | 16611624 | SCREW SCREW | 1 | |
| 4 | 8030482 | SCREW SCREW | 2 | |
| 5 | 17091074 | WASHER WASHER | 1 | |
| 6 | 17090174 | SPRING WASHER SPRING WASHER | 10 | |
| 7 | 8031103 | RETAINER RETAINER | 1 | |
| 8 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 3 |
