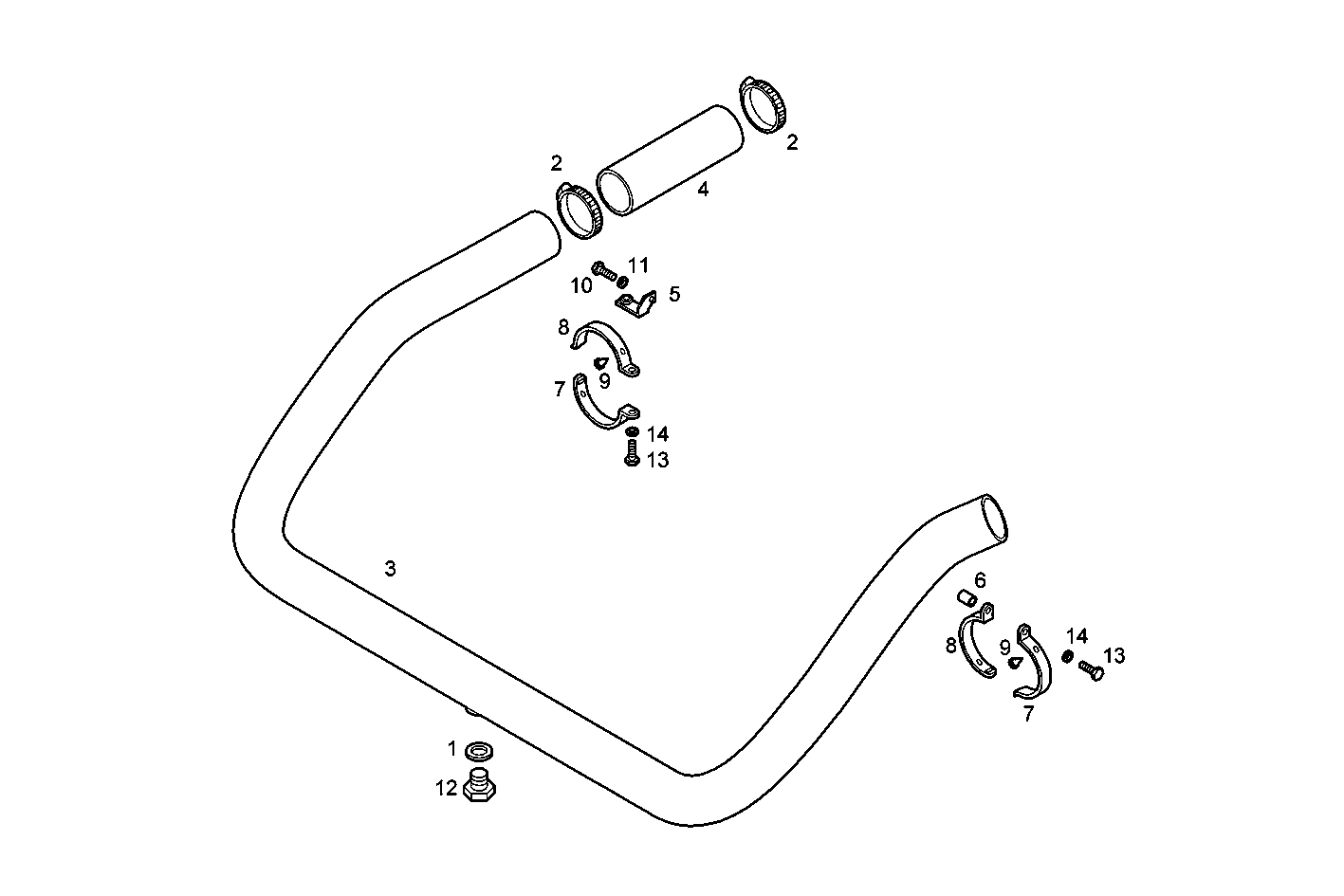

ARRANGED FOR GEAR MG
C78ENTM50.10 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99489016 | SEAL GASKET SEAL GASKET | 1 | |
| 2 | 17764993 | CLIP CLIP | 4 | |
| 3 | 8034327 | PIPE PIPE | 1 | |
| 4 | 4865234 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 5 | 8033807 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 6 | 17816714 | SPACING BAR SPACING BAR | 1 | |
| 7 | 8113295 | CLAMP CLAMP | 2 | |
| 8 | 8113296 | CLAMP CLAMP | 2 | |
| 9 | 1366290 | RUBBER PAD RUBBER PAD | 8 | |
| 10 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 12 | 16992140 | PLUG PLUG | 1 | |
| 13 | 16605424 | SCREW SCREW | 2 | |
| 14 | 17089474 | SPRING WASHER SPRING WASHER | 2 |
