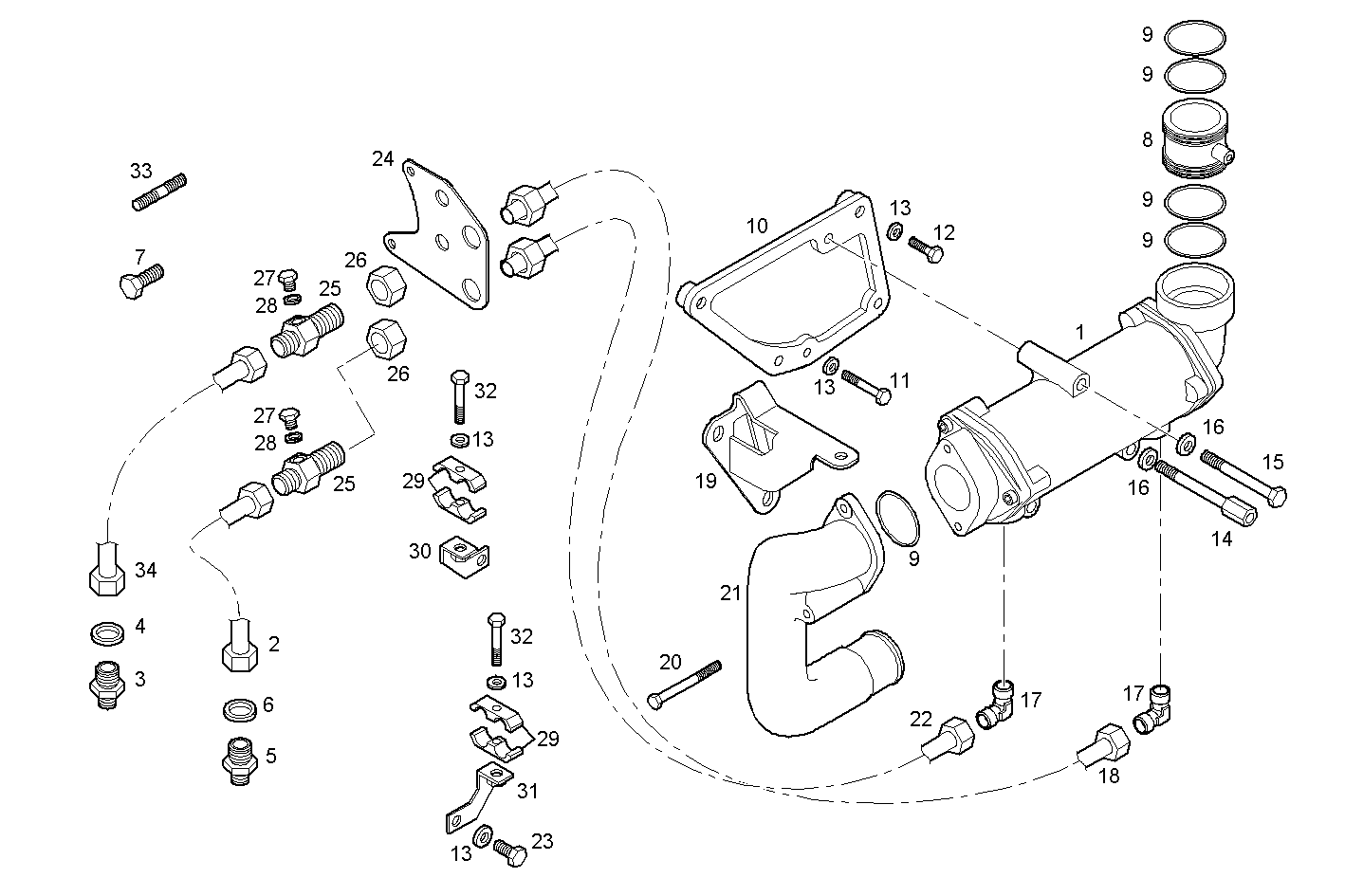

CURSOR 8/C78ENTM50.10/ARRANGED FOR GEAR ZF

ARRANGED FOR GEAR ZF

C78ENTM50.10 — CURSOR 8

Parts List

#	Part No	Name / Description	Qty
1	8029435	OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER	1
2	8105620	HOSE HOSE	1
3	8023701	PIPE SOCKET PIPE SOCKET	1
4	11270460	GASKET GASKET	1
5	8100897	PIPE SOCKET PIPE SOCKET	1
6	4858609	WASHER WASHER	1
7	17458134	SCREW SCREW	8
8	8029811	SPACING BAR SPACING BAR	1
9	17289981	O-RING O-RING	5
10	8030394	RETAINER RETAINER	1
11	16606024	SCREW SCREW	1
12	16605624	HEXAGON BOLT HEXAGON BOLT	2
13	17089474	SPRING WASHER SPRING WASHER	6
14	8030473	SCREW SCREW	2
15	16608724	HEXAGON BOLT HEXAGON BOLT	1
16	17090174	SPRING WASHER SPRING WASHER	3
17	8113790	PIPE SOCKET PIPE SOCKET	2
18	8032362	DELIVERY LINE DELIVERY LINE	1
19	8029421	RETAINER RETAINER	1
20	16606624	HEXAGON BOLT HEXAGON BOLT	1
21	8032259	PIPE PIPE	1
22	8032363	OIL LINE OIL LINE	1
23	16607424	SCREW SCREW	1
24	8032349	RETAINER RETAINER	1
25	8032220	PIPE SOCKET PIPE SOCKET	2
26	16509011	NUT NUT	2
27	11903140	PLUG PLUG	2
28	4858606	GASKET GASKET	2
29	8010505	CLAMP CLAMP	4
30	8033495	RETAINER RETAINER	1
31	8032187	RETAINER RETAINER	1
32	16605924	SCREW SCREW	2
33	17368624	STUD STUD	2
34	8105619	HOSE HOSE	1
