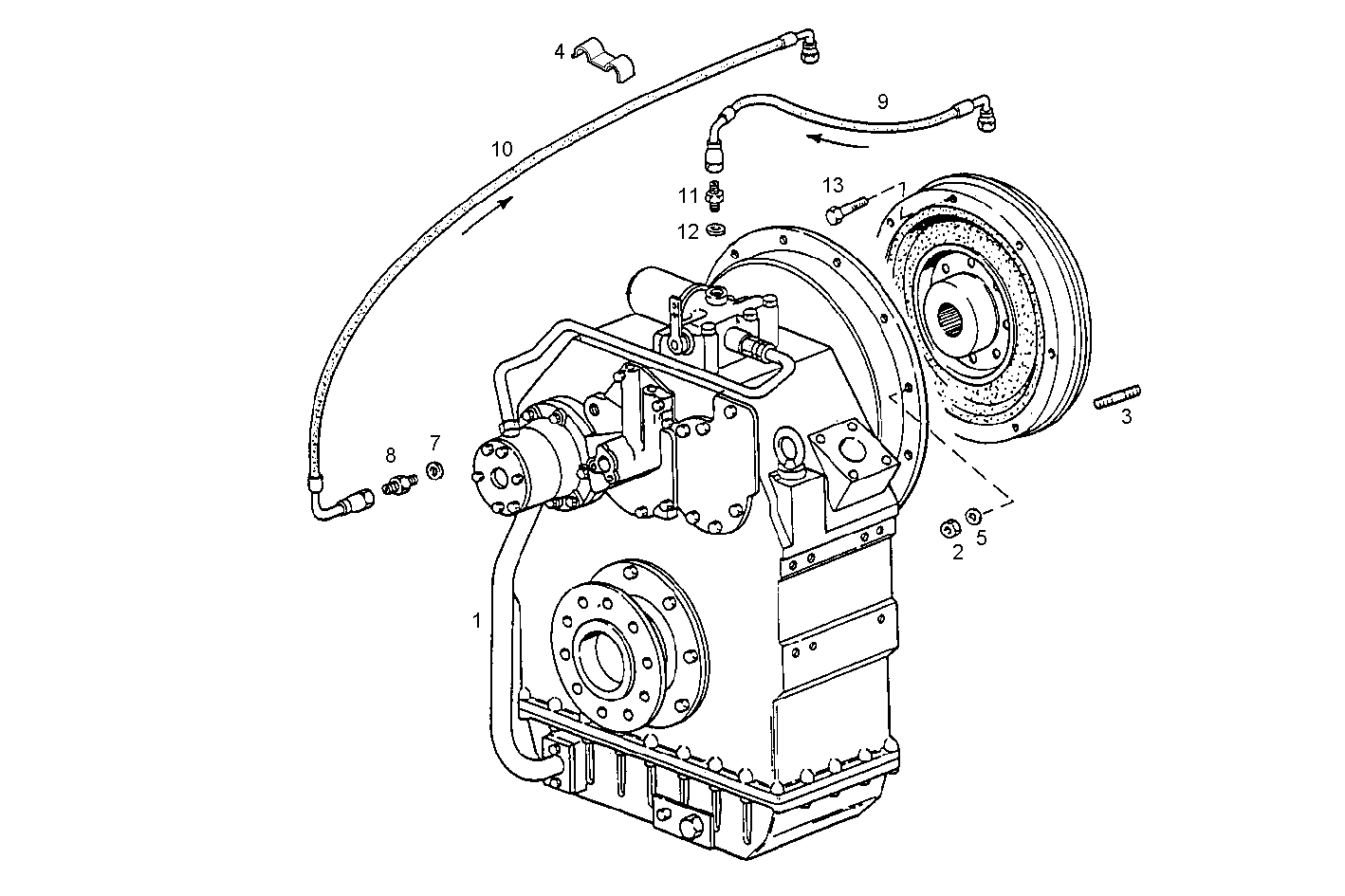

MARINE GEAR ZF-MPM IRM 280-1A
C78ENTM50.10 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8032284 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 17038121 | HEXAGON NUT HEXAGON NUT | 12 | |
| 3 | 17368624 | STUD STUD | 2 | |
| 4 | 8032246 | SPRING CLAMP SPRING CLAMP | 2 | |
| 5 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 6 | 8031114 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 7 | 4858609 | WASHER WASHER | 1 | |
| 8 | 8100897 | PIPE SOCKET PIPE SOCKET | 1 | |
| 9 | 8105619 | HOSE HOSE | 1 | |
| 10 | 8031908 | OIL HOSE OIL HOSE | 1 | |
| 11 | 8023701 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 11271460 | GASKET GASKET | 1 | |
| 13 | 17458134 | SCREW SCREW | 8 |
