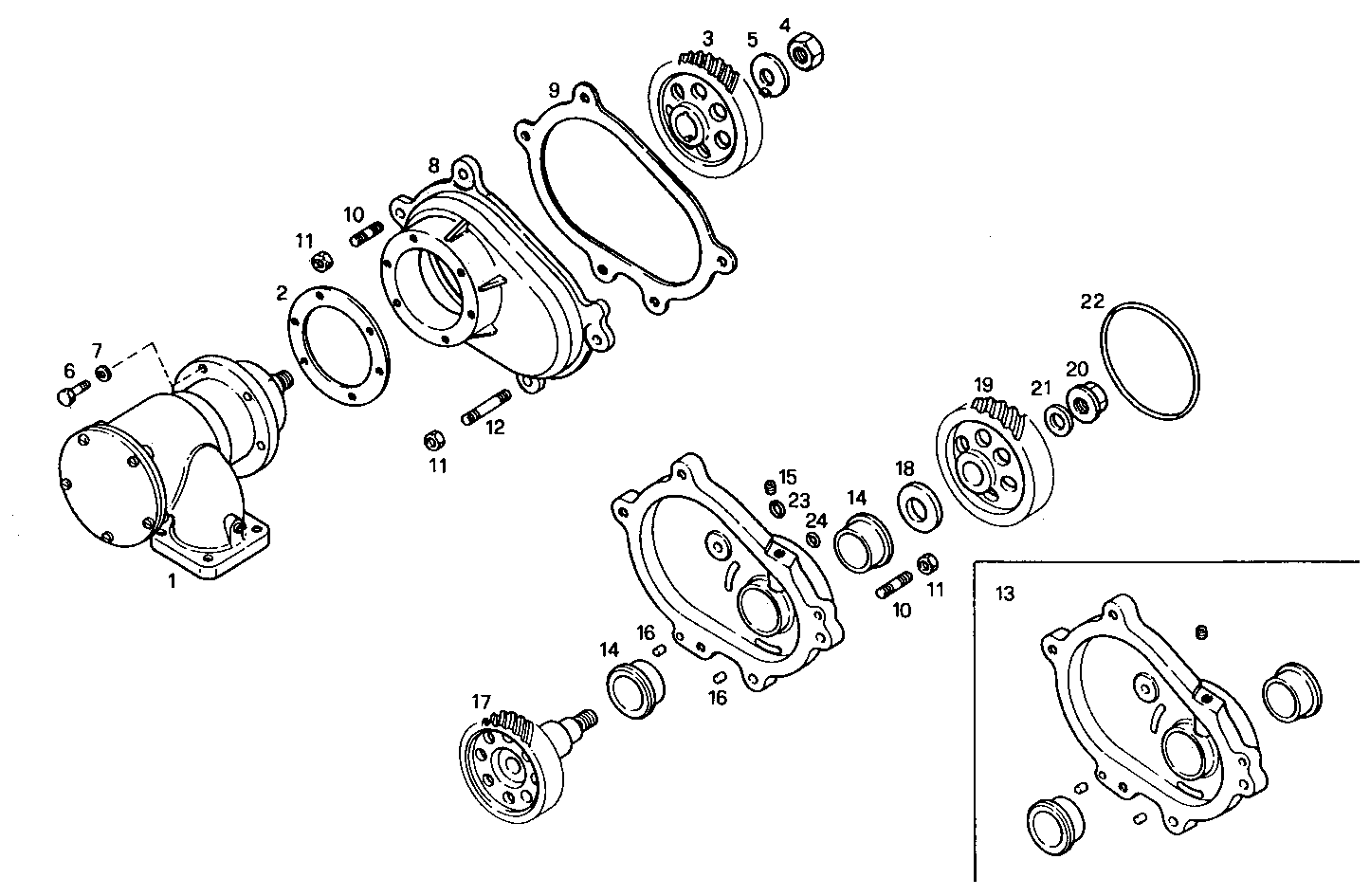

SEA WATER PUMP
C78ENTM50.10 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8112445 | SEA WATER PUMP SEA WATER PUMP | 1 | |
| 2 | 8008952 | GASKET GASKET | 1 | |
| 3 | 8027848 | GEAR GEAR | 1 | |
| 4 | 17039221 | NUT NUT | 1 | |
| 5 | 8027036 | LOCKING PLATE LOCKING PLATE | 1 | |
| 6 | 16605724 | SCREW SCREW | 6 | |
| 7 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 8 | 8027846 | COVER COVER | 1 | |
| 9 | 8027849 | GASKET GASKET | 1 | |
| 10 | 16760524 | STUD STUD | 4 | |
| 11 | 17044921 | HEXAGON NUT HEXAGON NUT | 6 | |
| 12 | 16761124 | STUD STUD | 2 | |
| 13 | 8030460 | SUPPORT SUPPORT | 1 | |
| 14 | 18127270 | DRIVE BEARING DRIVE BEARING | 2 | |
| 15 | 98472270 | THREADED PLUG THREADED PLUG | 1 | |
| 16 | 17275410 | DOWEL PIN DOWEL PIN | 2 | |
| 17 | 8027847 | GEAR GEAR | 1 | |
| 18 | 500351319 | WASHER WASHER | 1 | |
| 19 | 500351009 | GEAR GEAR | 1 | |
| 20 | 17046231 | NUT NUT | 1 | |
| 21 | 17096024 | WASHER WASHER | 1 | |
| 22 | 17292281 | O-RING O-RING | 1 | |
| 23 | 17281381 | O-RING O-RING | 1 | |
| 24 | 17278181 | O-RING O-RING | 1 |
