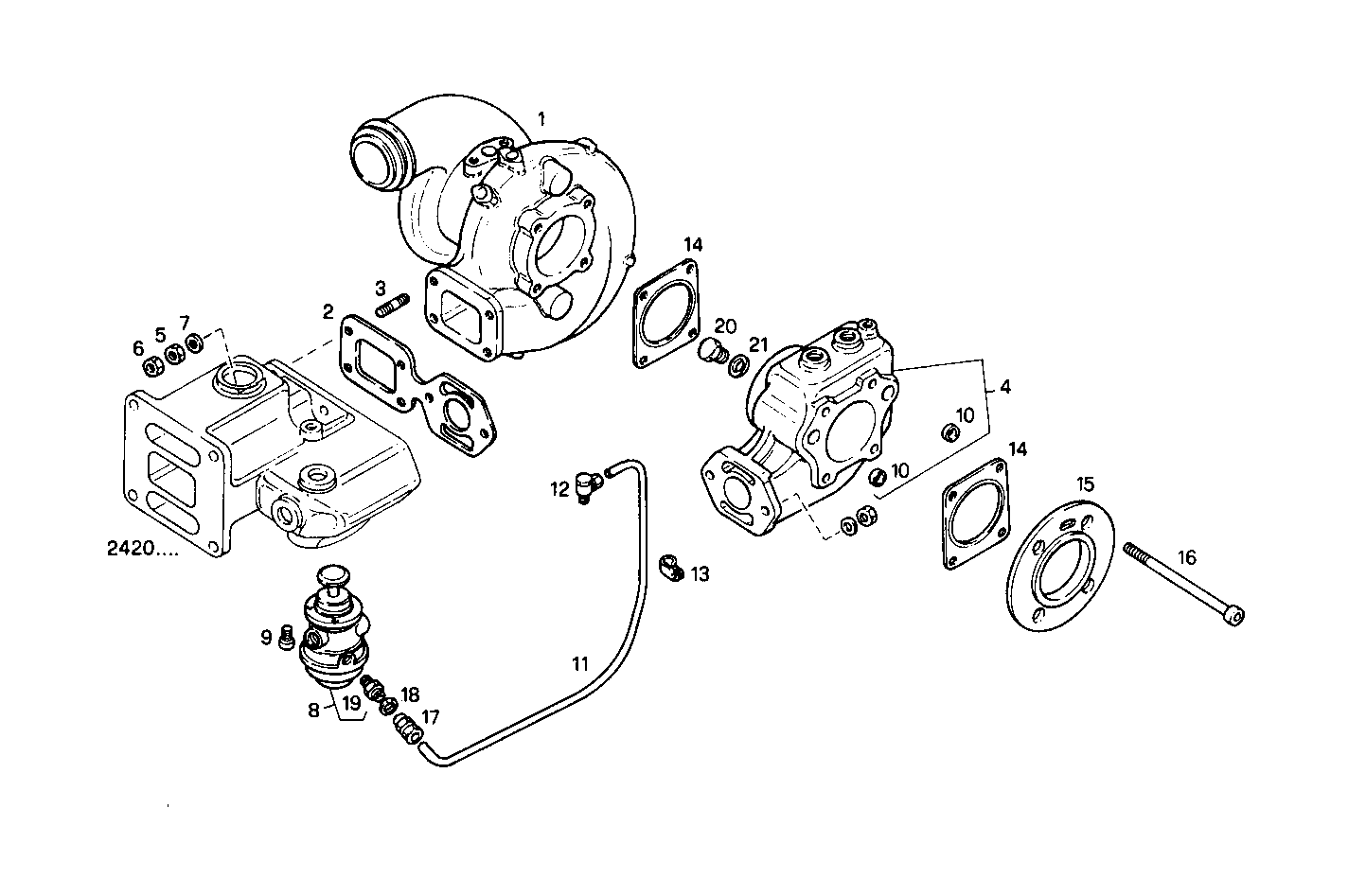

TURBOCHARGER
C78ENTM50.10 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8030365 | WATER COOL.TURBOCHARGER WATER COOL.TURBOCHARGER | 1 | |
| 2 | 8030363 | GASKET GASKET | 1 | |
| 3 | 8017871 | STUD STUD | 4 | |
| 4 | 8030437 | EXHAUST COOL. ELBOW EXHAUST COOL. ELBOW | 1 | |
| 5 | 17038131 | HEXAGON NUT HEXAGON NUT | 4 | |
| 6 | 16979631 | HEXAGON NUT HEXAGON NUT | 4 | |
| 7 | 16665604 | WASHER WASHER | 4 | |
| 8 | 8031472 | VALVE VALVE | 1 | |
| 9 | 16689134 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 3 | |
| 10 | 16990570 | LOCK PLUG LOCK PLUG | 2 | |
| 11 | 8030557 | WATER PIPE WATER PIPE | 1 | |
| 12 | 8026816 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 13 | 4656139 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 14 | 8030905 | GASKET GASKET | 2 | |
| 15 | 8030472 | FLANGE FLANGE | 1 | |
| 16 | 8030470 | SCREW SCREW | 4 | |
| 17 | 16500311 | PIPE SOCKET PIPE SOCKET | 1 | |
| 18 | 4858609 | WASHER WASHER | 1 | |
| 19 | 8012465 | PIPE SOCKET PIPE SOCKET | 1 | |
| 20 | 16692211 | PLUG PLUG | 1 | |
| 21 | 99489017 | SEAL GASKET SEAL GASKET | 1 |
