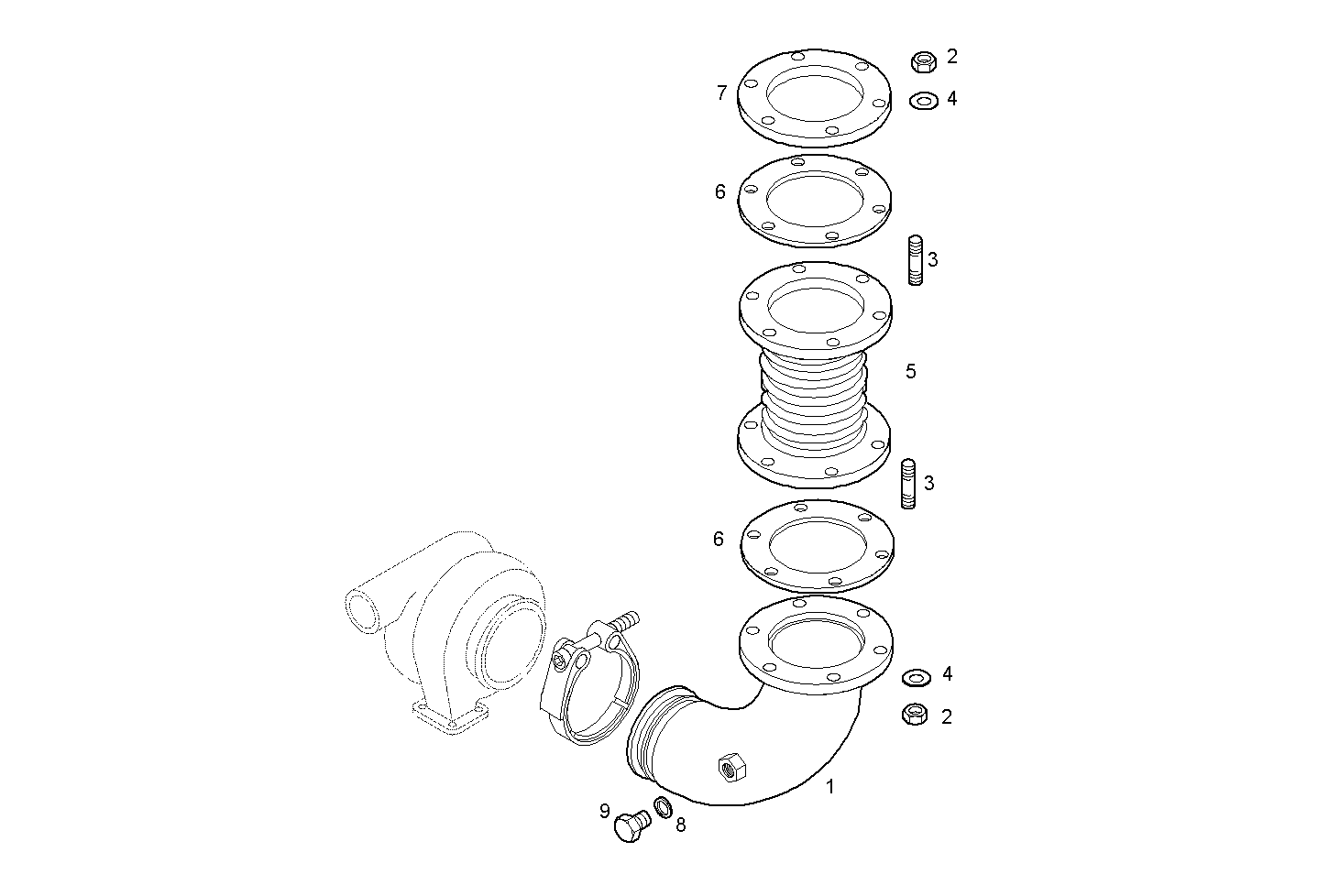

UPWARD EXHAUST ELBOW
C78ENTM50.10 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8032194 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 2 | 17038131 | HEXAGON NUT HEXAGON NUT | 12 | |
| 3 | 16731234 | STUD STUD | 12 | |
| 4 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 5 | 8016096 | EXHAUST BELLOWS EXHAUST BELLOWS | 1 | |
| 6 | 8010072 | GASKET GASKET | 2 | |
| 7 | 8022504 | FLANGE FLANGE | 1 | |
| 8 | 99489017 | SEAL GASKET SEAL GASKET | 1 | |
| 9 | 16992211 | THREADED PLUG THREADED PLUG | 1 |
