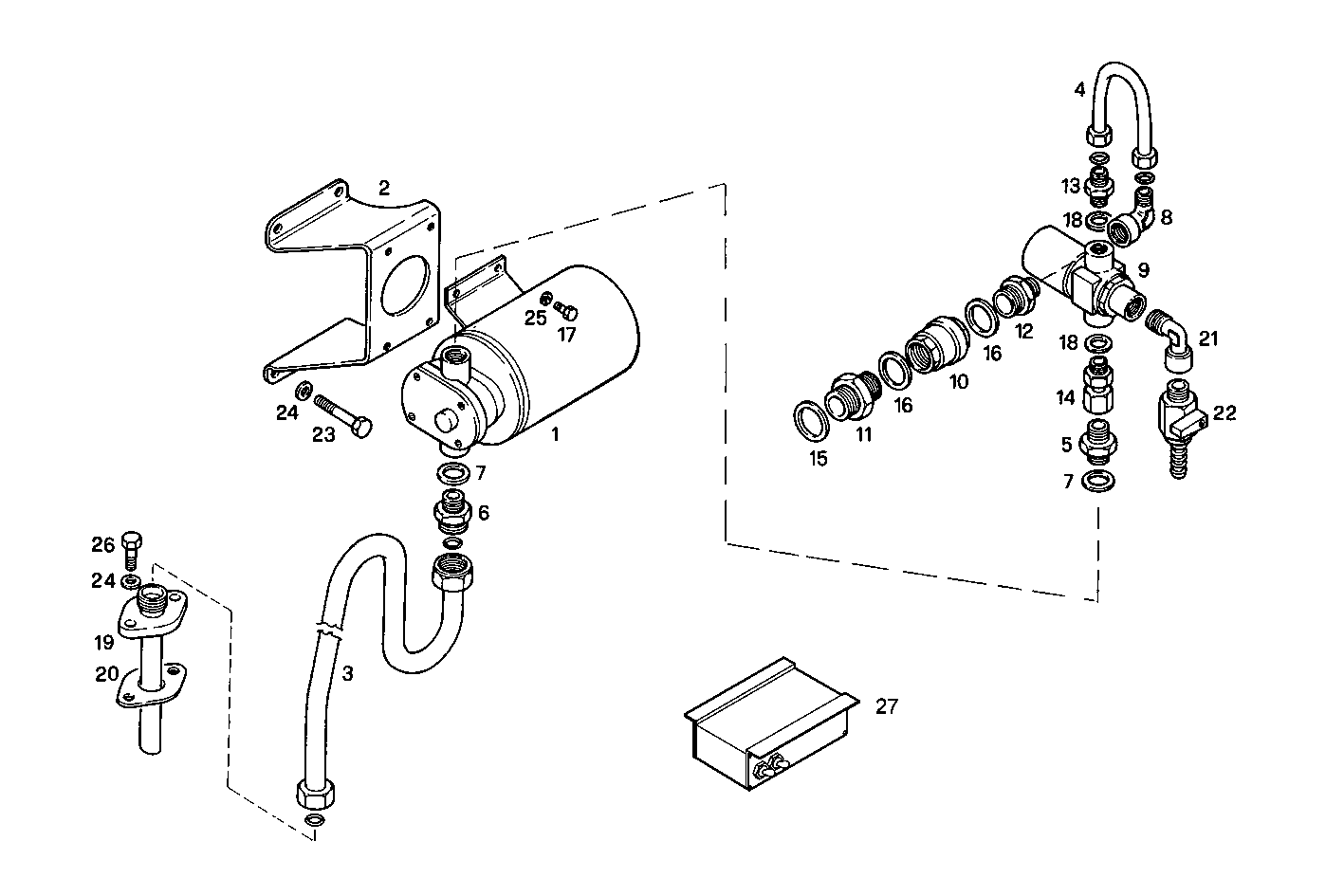

ENGINE PRE-LUBRIC./EXTR. OIL PUMP
C78ENTM50.11 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8032366 | OIL DRAIN ELECTRIC PUMP OIL DRAIN ELECTRIC PUMP | 1 | |
| 2 | 8030497 | RETAINER RETAINER | 1 | |
| 3 | 8031859 | OIL LINE OIL LINE | 1 | |
| 4 | 8031860 | OIL LINE OIL LINE | 1 | |
| 5 | 8031881 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 8011422 | PIPE SOCKET PIPE SOCKET | 1 | |
| 7 | 11270460 | GASKET GASKET | 2 | |
| 8 | 16504011 | PIPE SOCKET PIPE SOCKET | 1 | |
| 9 | 8031292 | ELECTROVALVE ELECTROVALVE | 1 | |
| 10 | 8011241 | VALVE VALVE | 1 | |
| 11 | 8031795 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 8031796 | PIPE SOCKET PIPE SOCKET | 1 | |
| 13 | 16500214 | THREADED UNION THREADED UNION | 1 | |
| 14 | 8031863 | PIPE SOCKET PIPE SOCKET | 1 | |
| 15 | 98429281 | SEAL GASKET SEAL GASKET | 1 | |
| 16 | 11271460 | GASKET GASKET | 2 | |
| 17 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 18 | 99489018 | SEAL GASKET SEAL GASKET | 2 | |
| 19 | 8036596 | OIL LINE OIL LINE | 1 | |
| 20 | 4863361 | GASKET GASKET | 1 | |
| 21 | 8005303 | PIPE SOCKET PIPE SOCKET | 1 | |
| 22 | 8113932 | DRAIN COCK DRAIN COCK | 1 | |
| 23 | 16586924 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 24 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 25 | 17088474 | WASHER WASHER | 4 | |
| 26 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 27 | 8033537 | SWITCH PANEL SWITCH PANEL | 1 |
