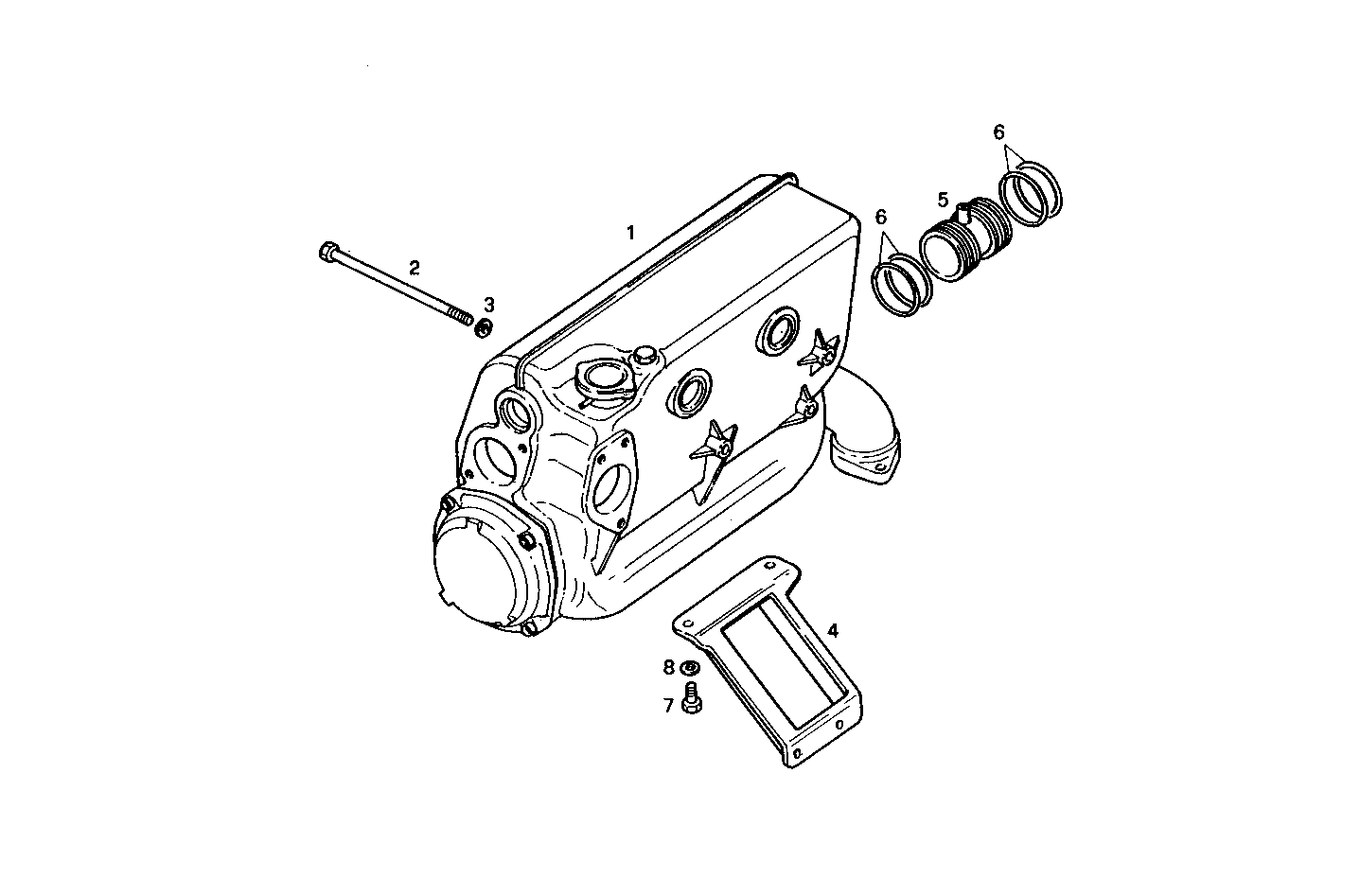

FRESH WATER - SEA WATER HEAT EXCHANGER
C78ENTM50.11 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8028906 | WATER/SEA WATER HEAT EXCH WATER/SEA WATER HEAT EXCH | 1 | |
| 2 | 8030913 | SCREW SCREW | 3 | |
| 3 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 4 | 8029420 | RETAINER RETAINER | 1 | |
| 5 | 8029811 | SPACING BAR SPACING BAR | 1 | |
| 6 | 17289981 | O-RING O-RING | 4 | |
| 7 | 16607724 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 17090174 | SPRING WASHER SPRING WASHER | 2 |
