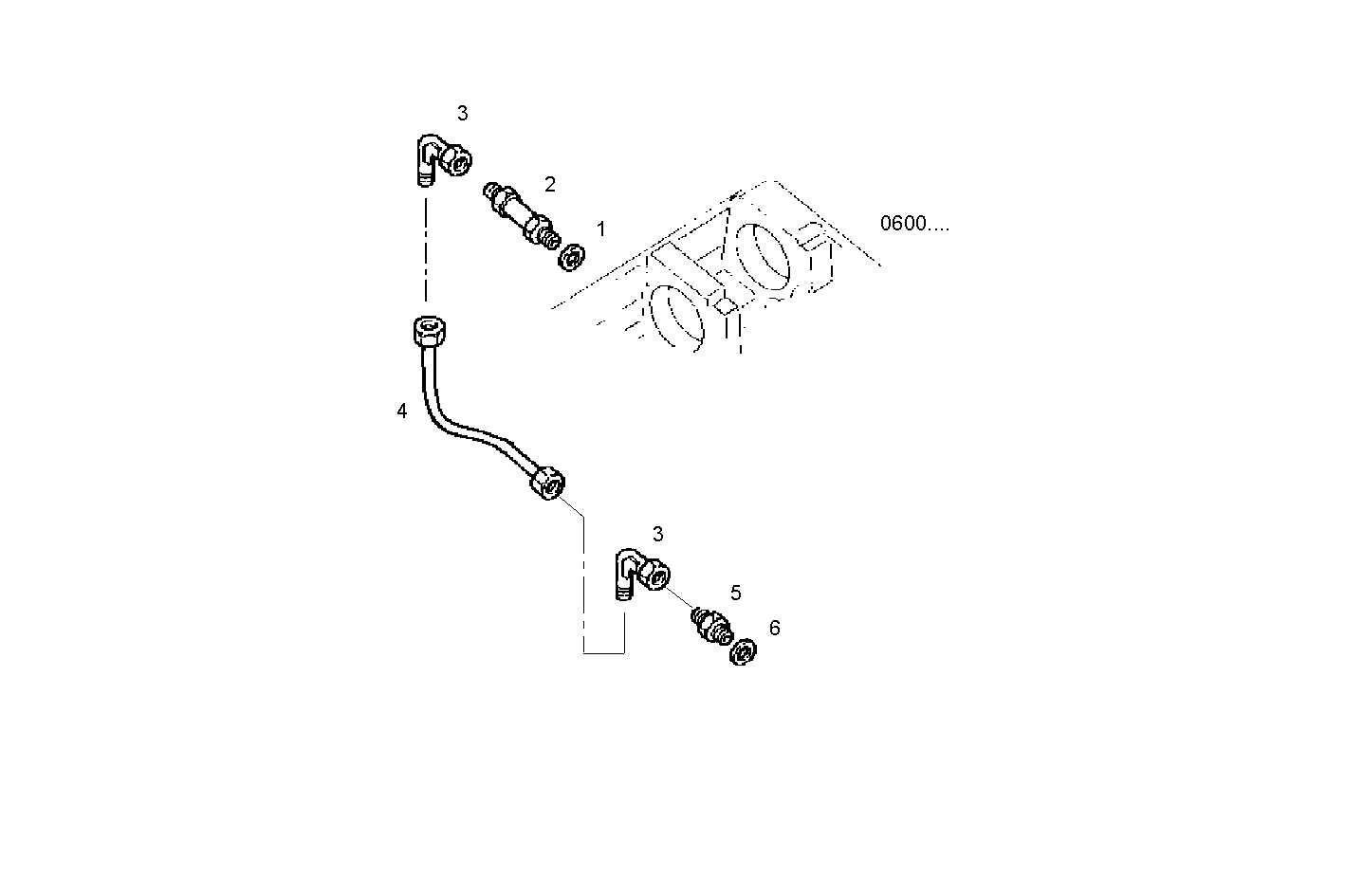

FUEL LINES - RETURN TO FUEL PUMP
C78ENTM50.11 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99489018 | SEAL GASKET SEAL GASKET | 1 | |
| 2 | 99455351 | CONNECTION PIPE CONNECTION PIPE | 1 | |
| 3 | 16504114 | ELBOW COUPLING ELBOW COUPLING | 2 | |
| 4 | 8030756 | FUEL LINE FUEL LINE | 1 | |
| 5 | 504081274 | THREADED UNION THREADED UNION | 1 | |
| 6 | 99489019 | WASHER WASHER | 1 |
