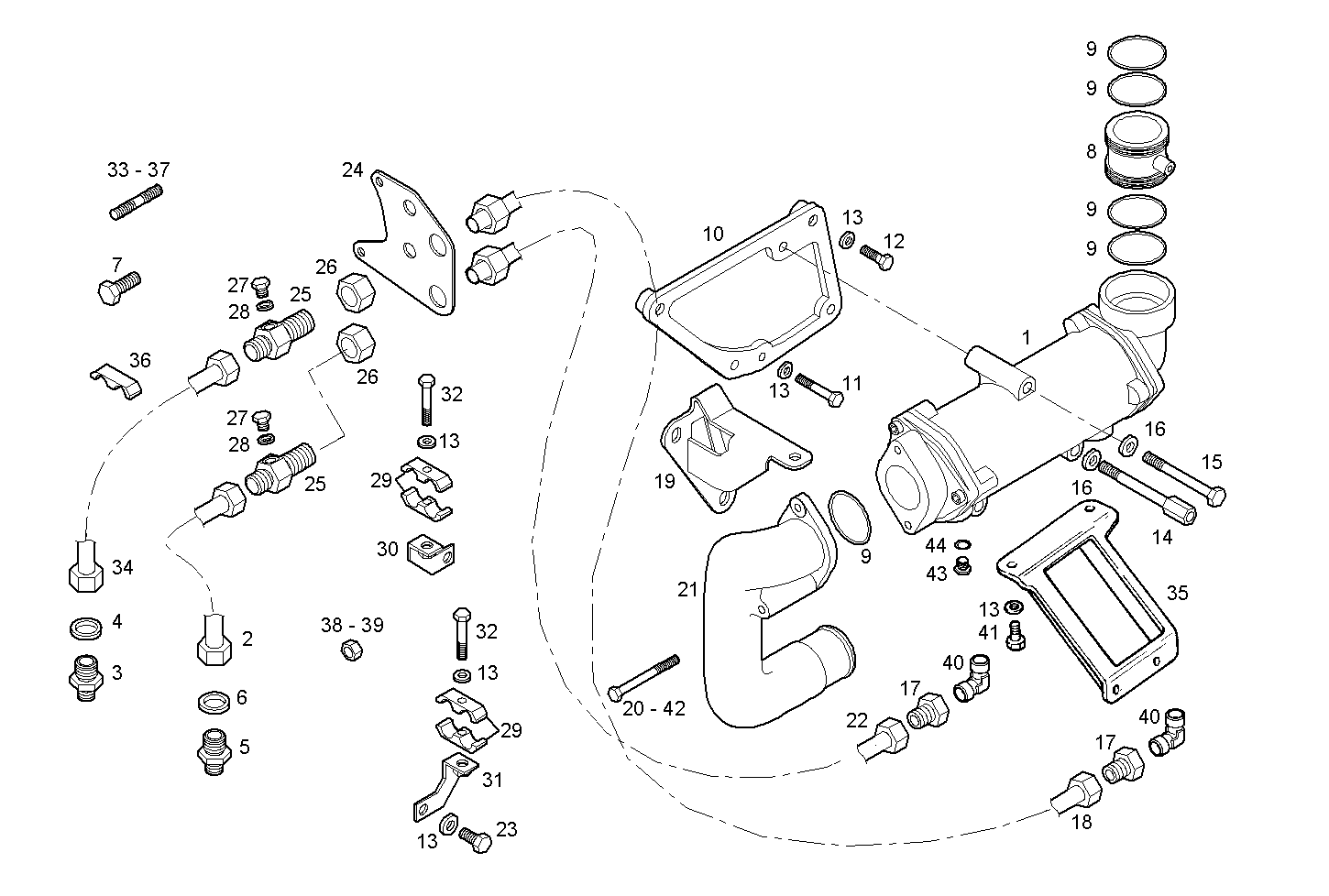

CURSOR 8/C78ENTM50.11/MARINE GEAR TWIN DISC MG 5075 A

MARINE GEAR TWIN DISC MG 5075 A

C78ENTM50.11 — CURSOR 8

Parts List

#	Part No	Name / Description	Qty
1	8029435	OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER	1
2	8031908	OIL HOSE OIL HOSE	1
3	8011383	PIPE SOCKET PIPE SOCKET	1
4	99489020	SEAL GASKET SEAL GASKET	1
5	4935465	PIPE SOCKET PIPE SOCKET	1
6	99489019	WASHER WASHER	1
7	17458134	SCREW SCREW	8
8	8029811	SPACING BAR SPACING BAR	1
9	17289981	O-RING O-RING	5
10	8030394	RETAINER RETAINER	1
11	16605824	HEXAGON BOLT HEXAGON BOLT	1
12	16605524	HEXAGON BOLT HEXAGON BOLT	2
13	17089474	SPRING WASHER SPRING WASHER	6
14	8030473	SCREW SCREW	2
15	16608724	HEXAGON BOLT HEXAGON BOLT	1
16	17090174	SPRING WASHER SPRING WASHER	8
17	8011138	PIPE SOCKET PIPE SOCKET	2
18	8032362	DELIVERY LINE DELIVERY LINE	1
19	8029421	RETAINER RETAINER	1
20	16607424	SCREW SCREW	1
21	8032259	PIPE PIPE	1
22	8032363	OIL LINE OIL LINE	1
23	16607524	HEXAGON BOLT HEXAGON BOLT	4
24	8032349	RETAINER RETAINER	1
25	8032220	PIPE SOCKET PIPE SOCKET	2
26	16509011	NUT NUT	2
27	11903140	PLUG PLUG	2
28	99489016	SEAL GASKET SEAL GASKET	2
29	8010505	CLAMP CLAMP	4
30	8033495	RETAINER RETAINER	1
31	8032187	RETAINER RETAINER	1
32	16605924	SCREW SCREW	2
33	17368624	STUD STUD	2
34	8100965	OIL HOSE OIL HOSE	1
35	8029420	RETAINER RETAINER	1
36	8032246	SPRING CLAMP SPRING CLAMP	2
37	17368224	STUD STUD	10
38	16508811	NUT NUT	2
39	17038121	HEXAGON NUT HEXAGON NUT	2
40	8034521	SWIVEL COUPLING SWIVEL COUPLING	2
41	16605670	SCREW SCREW	2
42	16606670	HEXAGON BOLT HEXAGON BOLT	1
43	4595833	THREADED PLUG THREADED PLUG	2
44	99489021	WASHER WASHER	2
