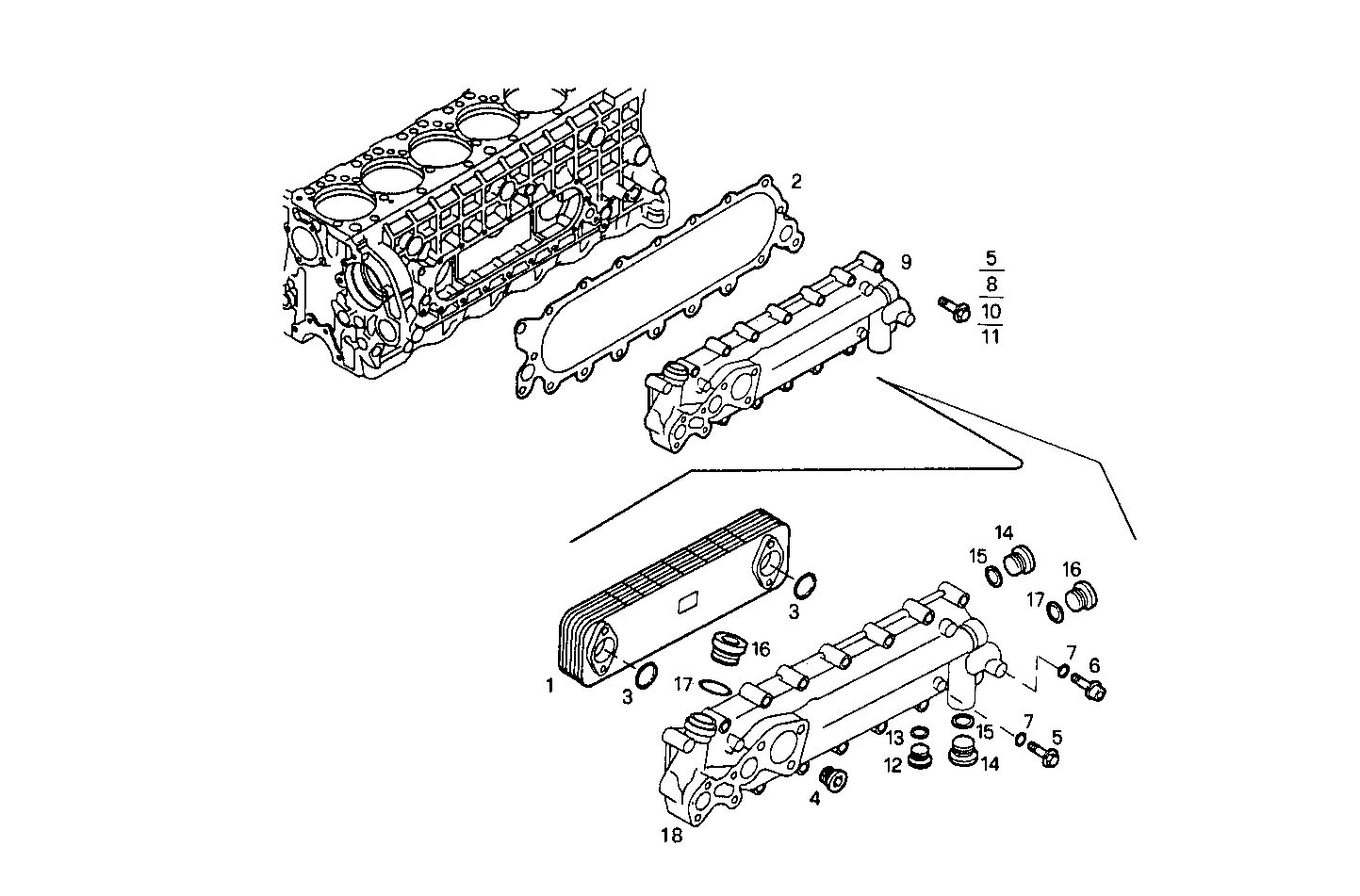

OIL - WATER HEAT EXCHANGER
C78ENTM50.11 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500301692 | OIL COOLER OIL COOLER | 1 | |
| 2 | 98497873 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 17283581 | O-RING O-RING | 2 | |
| 4 | 99433799 | THREADED PLUG THREADED PLUG | 1 | |
| 5 | 16586924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 16586624 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 7 | 99489014 | SEAL GASKET SEAL GASKET | 4 | |
| 8 | 16598224 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 504031425 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 1 | |
| 10 | 16586724 | SCREW SCREW | 10 | |
| 11 | 16598624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 16992411 | THREADED PLUG THREADED PLUG | 1 | |
| 13 | 99489019 | WASHER WASHER | 1 | |
| 14 | 16993711 | THREADED PLUG THREADED PLUG | 2 | |
| 15 | 99469380 | SEAL GASKET SEAL GASKET | 2 | |
| 16 | 16993511 | LOCK PLUG LOCK PLUG | 2 | |
| 17 | 99432291 | SEAL GASKET SEAL GASKET | 2 | |
| 18 | 504013565 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 |
