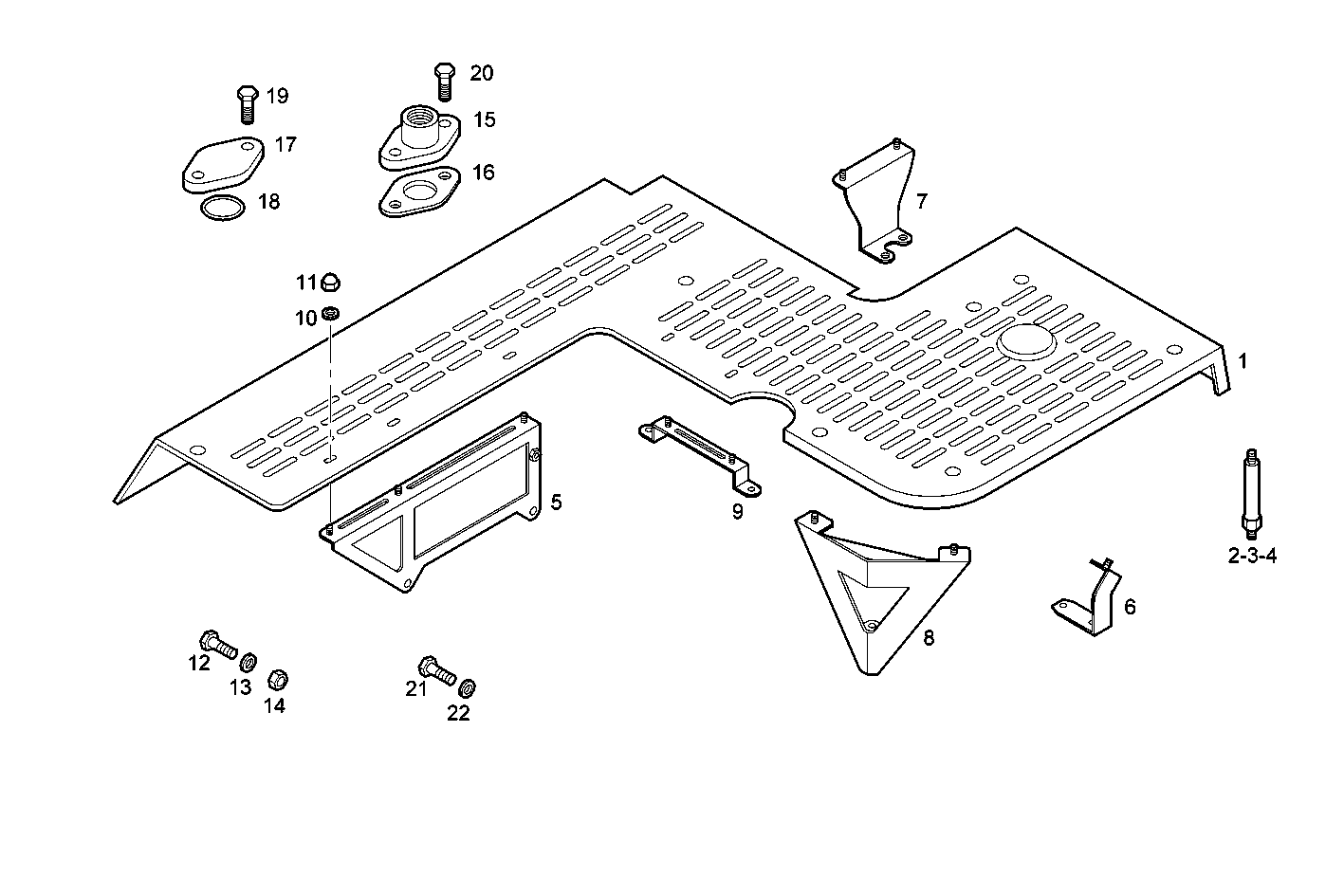

SHIELDS
C78ENTM50.11 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8031255 | PROTECTION PROTECTION | 1 | |
| 2 | 8031262 | SPACING BAR SPACING BAR | 1 | |
| 3 | 8037647 | SPACING BAR SPACING BAR | 1 | |
| 4 | 8031264 | SPACING BAR SPACING BAR | 1 | |
| 5 | 8031593 | RETAINER RETAINER | 1 | |
| 6 | 8032218 | RETAINER RETAINER | 1 | |
| 7 | 8032231 | RETAINER RETAINER | 1 | |
| 8 | 8032232 | RETAINER RETAINER | 1 | |
| 9 | 8032261 | RETAINER RETAINER | 1 | |
| 10 | 17800374 | SPRING WASHER SPRING WASHER | 13 | |
| 11 | 17787270 | HEXAGON NUT HEXAGON NUT | 13 | |
| 12 | 16605424 | SCREW SCREW | 3 | |
| 13 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 14 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 | |
| 15 | 4764795 | THREADED UNION THREADED UNION | 1 | |
| 16 | 98415922 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 17 | 8032550 | FLANGE FLANGE | 1 | |
| 18 | 17282081 | O-RING O-RING | 1 | |
| 19 | 16606324 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 20 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 21 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 22 | 17088774 | WASHER WASHER | 4 |
