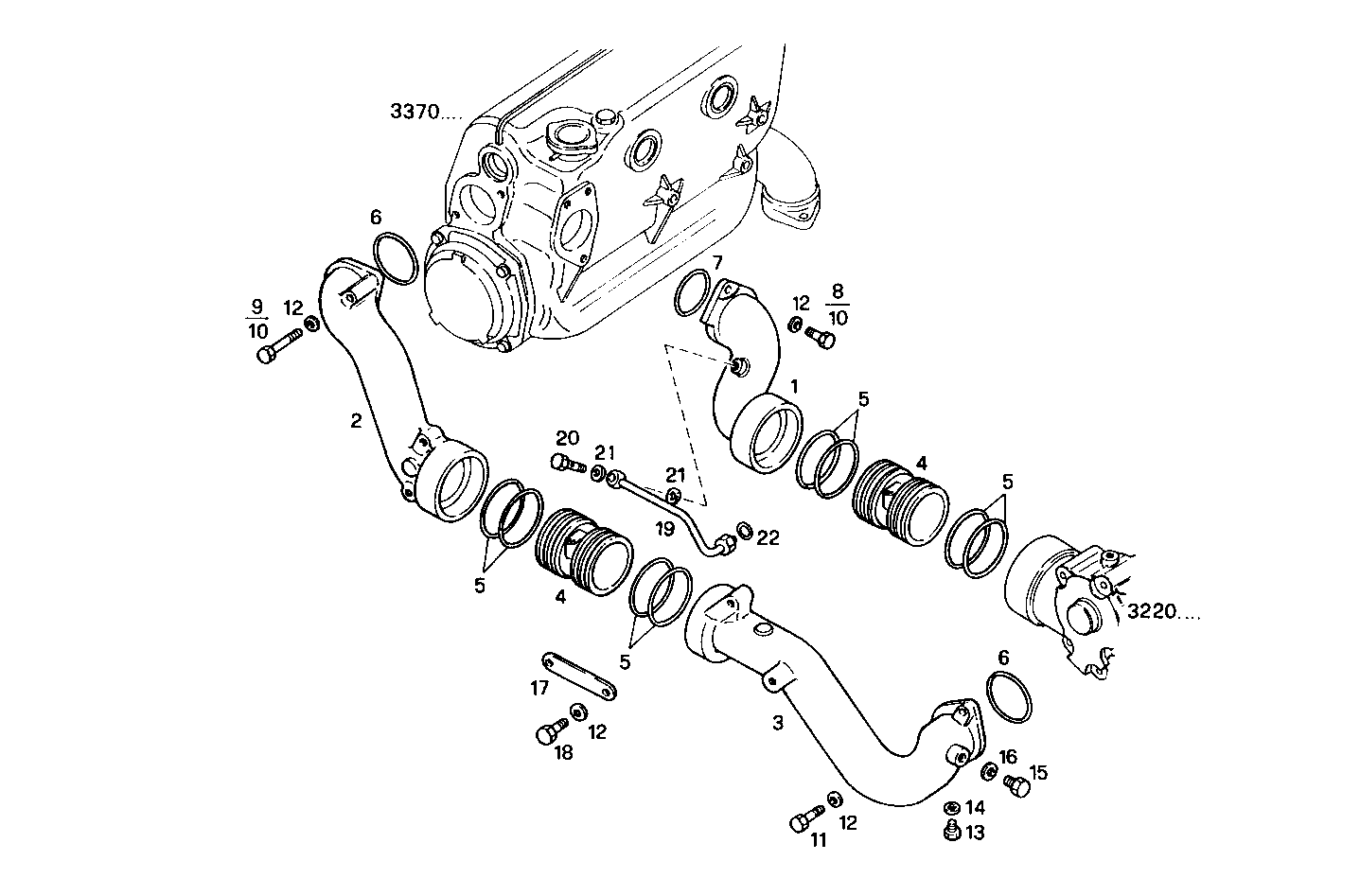

WATER LINES
C78ENTM50.11 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8029597 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8030461 | WATER PIPE WATER PIPE | 1 | |
| 3 | 8030462 | WATER PIPE WATER PIPE | 1 | |
| 4 | 8025307 | WATER PIPE WATER PIPE | 2 | |
| 5 | 17290581 | O-RING O-RING | 8 | |
| 6 | 17290381 | O-RING O-RING | 2 | |
| 7 | 17290081 | O-RING O-RING | 1 | |
| 8 | 16606724 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 16606624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 16606124 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 8 | |
| 13 | 16992240 | THREADED PLUG THREADED PLUG | 1 | |
| 14 | 99489017 | SEAL GASKET SEAL GASKET | 1 | |
| 15 | 16992440 | THREADED PLUG THREADED PLUG | 1 | |
| 16 | 99489019 | WASHER WASHER | 1 | |
| 17 | 8030509 | RETAINER RETAINER | 1 | |
| 18 | 16605424 | SCREW SCREW | 2 | |
| 19 | 8030718 | CONNECTION PIPE CONNECTION PIPE | 1 | |
| 20 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 21 | 98474308 | SEAL GASKET SEAL GASKET | 2 | |
| 22 | 8024646 | O-RING O-RING | 1 |
