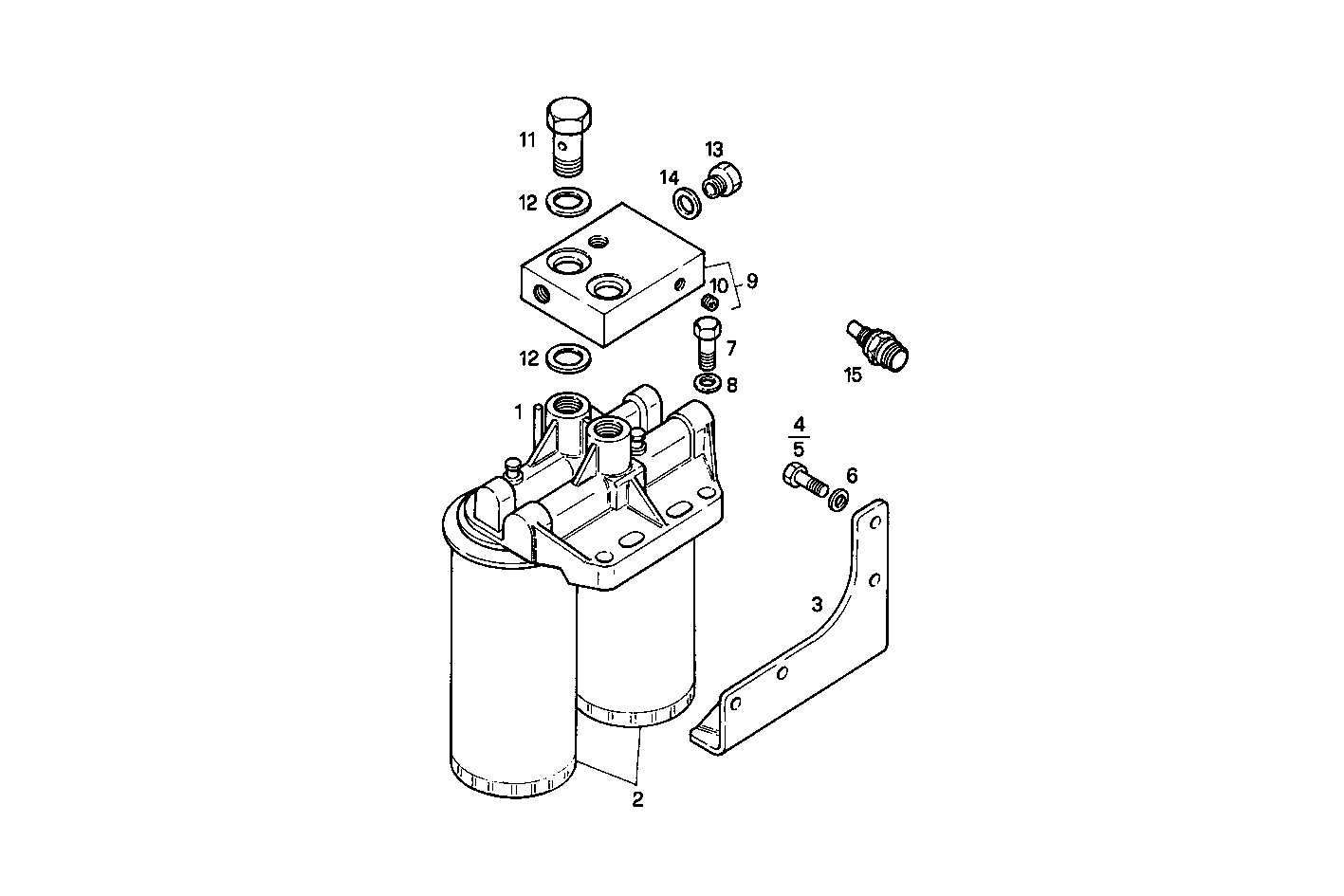

DOUBLE FUEL FILTER
C78ENTM50.11A001 — CURSOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8032294 | OIL FILTER SUPPORT OIL FILTER SUPPORT | 1 | |
| 2 | 2991585 | FUEL FILTER ELEM. FUEL FILTER ELEM. | 2 | |
| 3 | 8030817 | RETAINER RETAINER | 1 | |
| 4 | 16605424 | SCREW SCREW | 2 | |
| 5 | 16605924 | SCREW SCREW | 2 | |
| 6 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 7 | 16610124 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 17091074 | WASHER WASHER | 2 | |
| 9 | 8032305 | CHOCK CHOCK | 1 | |
| 10 | 17318650 | PLUG PLUG | 1 | |
| 11 | 4864085 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 12 | 98474311 | SEAL GASKET SEAL GASKET | 4 | |
| 13 | 8032295 | PIPE SOCKET PIPE SOCKET | 1 | |
| 14 | 99489018 | SEAL GASKET SEAL GASKET | 1 | |
| 15 | 500346074 | TRANSMITTER TRANSMITTER | 1 |
